4

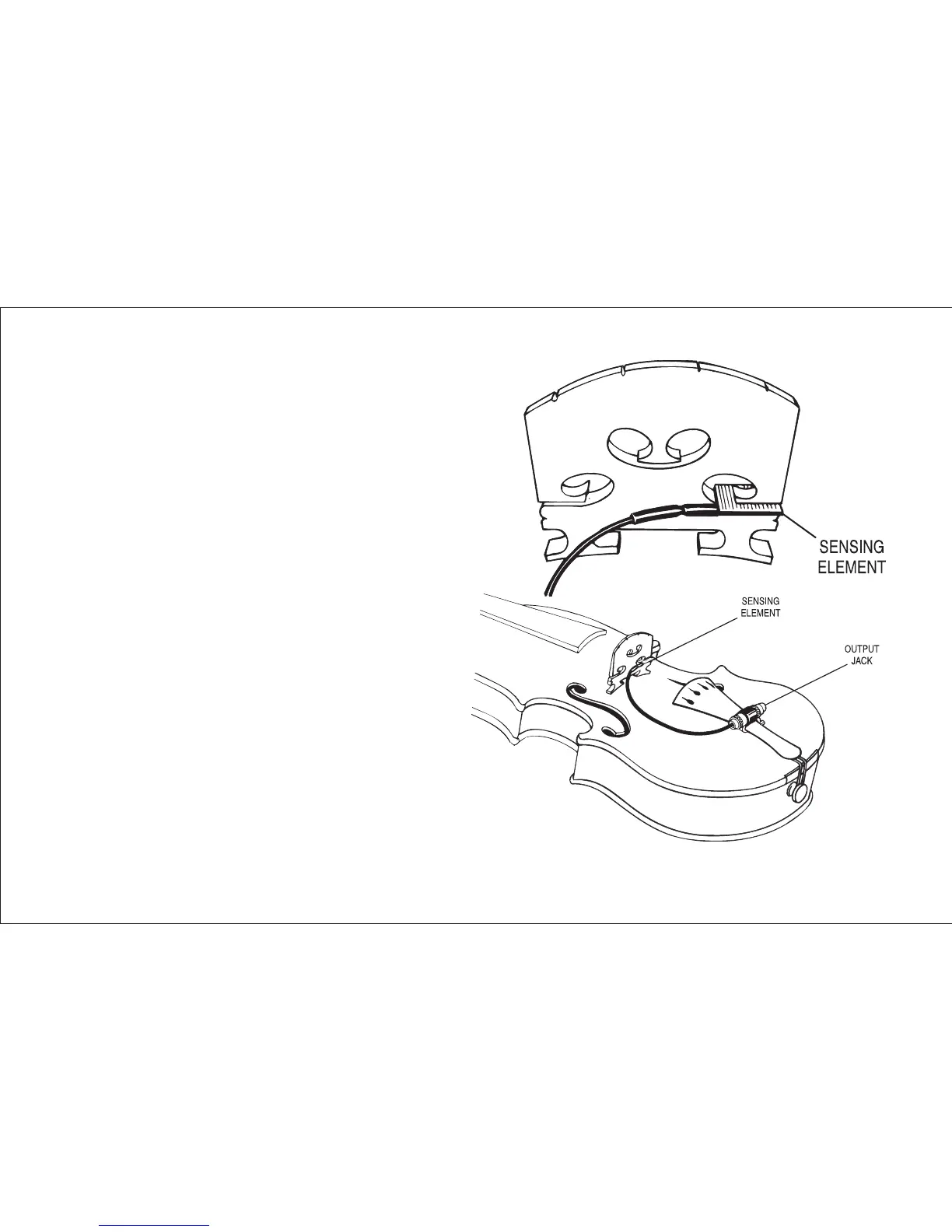

2. Slide the V-100 Transducer into the wing
slot of the bridge. Make certain that the
sensing element is in contact with the wing
face and that the spring is in contact with
the corresponding “leg” face of the bridge.
The spring (made of tempered beryllium
copper) provides the proper tension for a
snug fi t in wing slots ranging from .060” to
.090” (1.2mm to 2.3mm).
Note: For best performance, the wing
slot opening should be exactly
.070” (1.8mm).
