Fishmaster Pro Series - Important Installation Notes

Do you have questions? Call us @ 877.777.8693 Monday – Friday, 8am-5pm EST
2020 Fishmaster All Rights Reserved 2640 Byington Solway Rd, Knoxville, TN 37931 877.777.8693 fishmaster.com
c
DES-212
REV 1.0

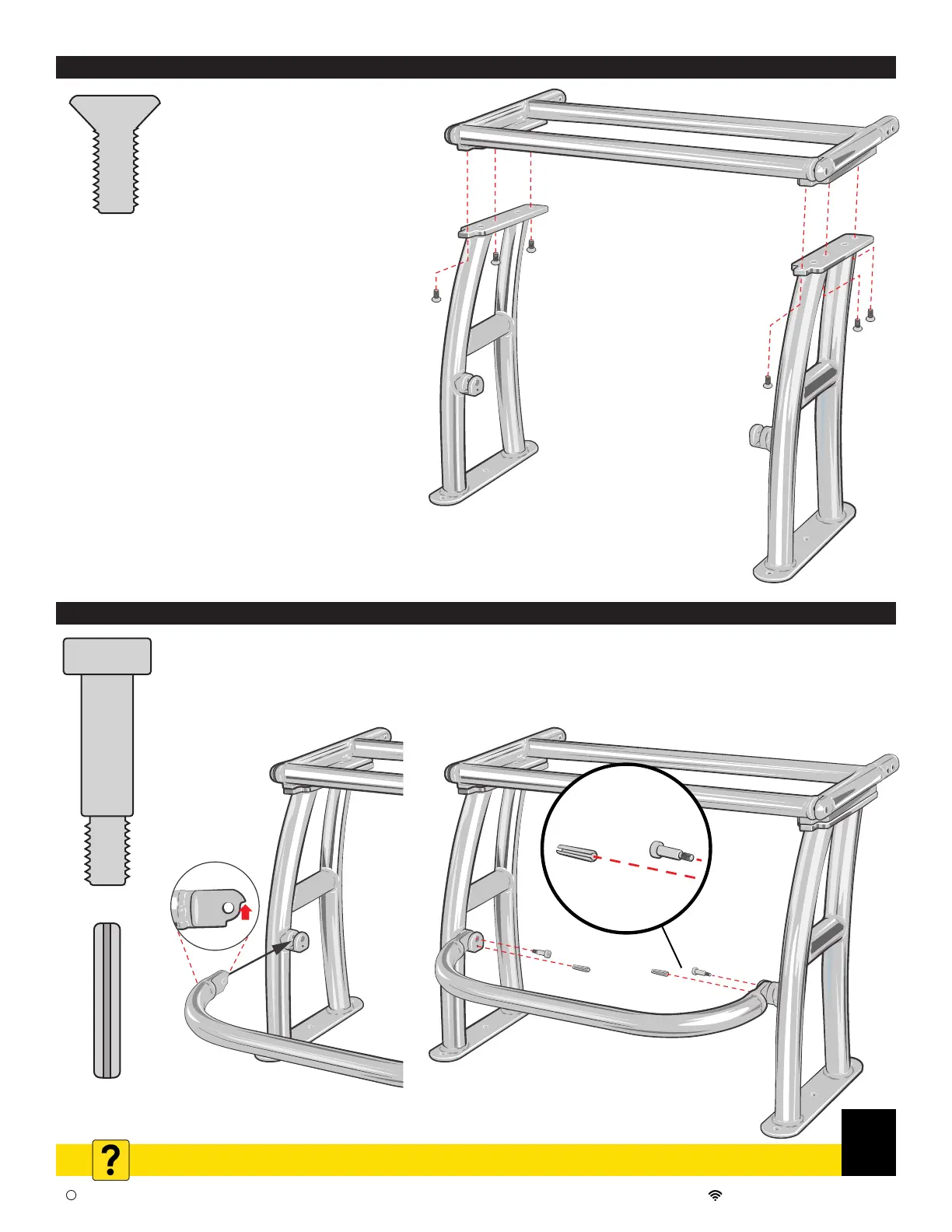

STEP 2: Install the Pro Series Leaning Post Foot Rest to Leaning Post Assembly
1. Insert foot rest with notch
cutout (as shown) positioned
down - this allows for foot rest
to swing up once assembled.
2. Secure foot rest to Leaning
Post assembly using two M10
Shoulder Bolts with 6mm allen
wrench. Tighten firmly.
3. Gently tap the Roll Pins into
the small holes beneath the
bolt-holes on each side of
the Leaning Post foot rest
using a rubber mallet.
STEP 1: Install the Pro Series Leaning Post Seat Platform to Leg Bases
1. Position leg bases with foot rest attachment
aligned and facing each other.
2. Place seat platform on top of leg bases while
aligning holes on the top of the leg bases.
3. Secure platform to leg bases with 6 M10 x 22
bolts from the underside of the leg bases with
6mm allen wrench. Tighten firmly.
2
