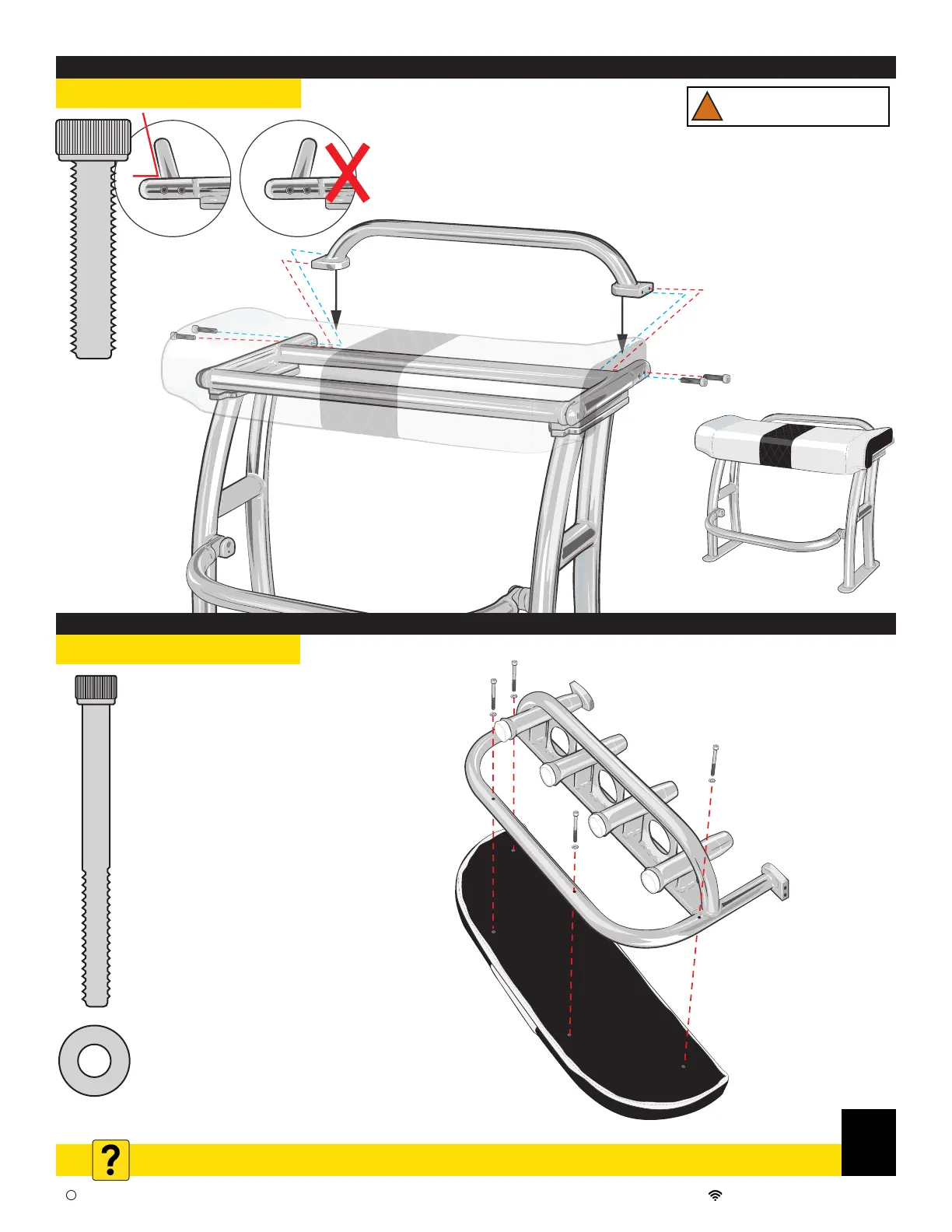

STEP 6 DELUXE: Install the Pro Series Leaning Post backrest Frame to Backrest Upholstery
1. Place backrest frame on top of
backrest upholstery while lining up
bolt holes.
2. Insert M6 x 55 bolt through M6 washer
and into each location with only a few
turns of bolt to get each bolt started.
3. After all four bolts are in position,
tighten each bolt firmly with 6mm
allen wrench.
4. Insert three cupholders into the
cupholder inserts on frame back
assembly. (This step is not shown.)
Grab Bar Option
Deluxe Backrest Option
STEP 6 STANDARD: Install the Pro Series Leaning Post Grab Bar to Leaning Post Assembly
We recommend two
people for this step.
1. While holding grab
bar in position,
(make certain that
the grab bar is
leaning towards
the back of the
assembly) insert
M10 x 45 bolt in each
location with only a
few turns of bolt to
get each bolt started.
2. After all four bolts
are in position,
tighten each bolt
firmly with 10mm
allen wrench.
NOTE: If you purchased
the upgraded backrest, go
to Step 6 Deluxe.
