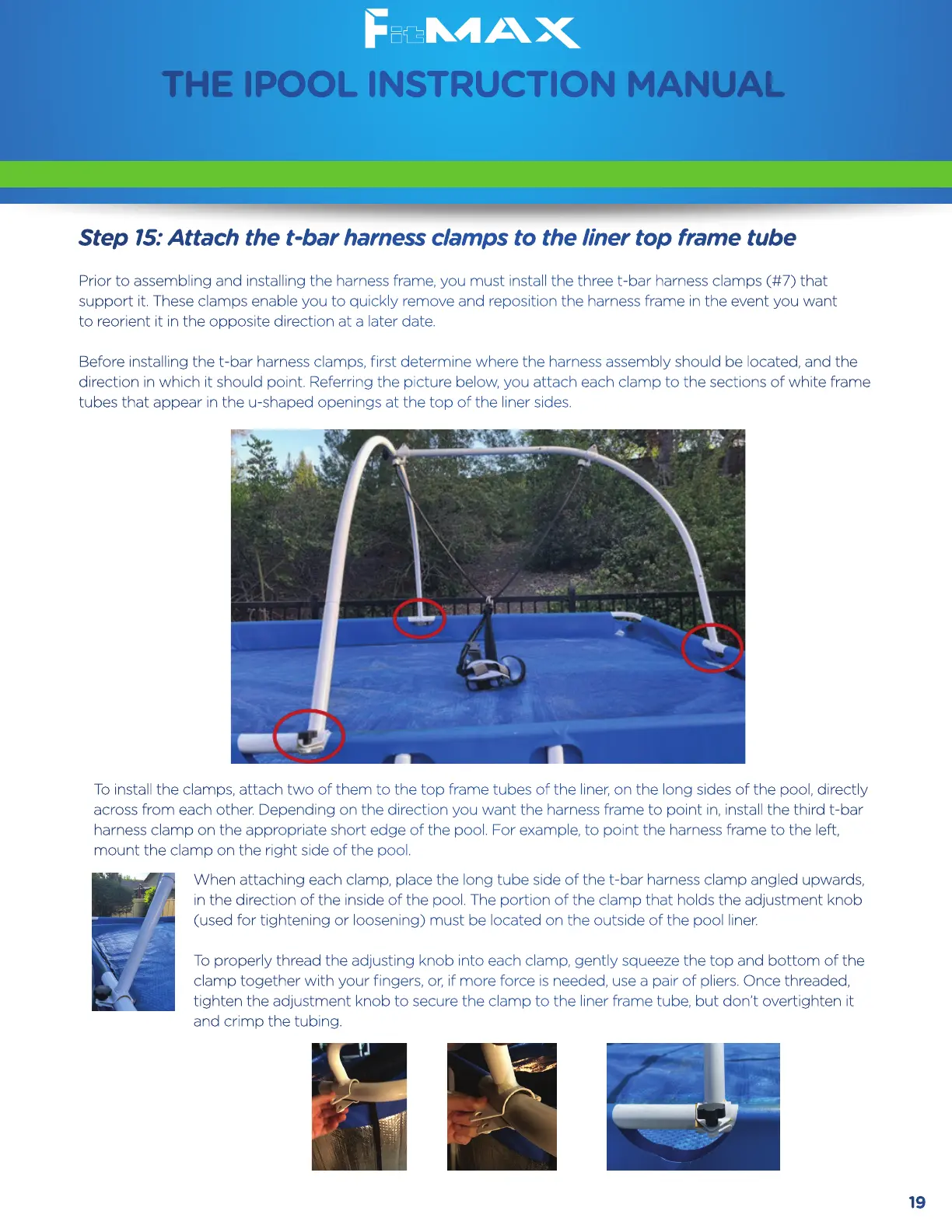

Step 15: Attach the t-bar harness clamps to the liner top frame tube
Prior to assembling and installing the harness frame, you must install the three t-bar harness clamps (#7) that
support it. These clamps enable you to quickly remove and reposition the harness frame in the event you want
to reorient it in the opposite direction at a later date.
Before installing the t-bar harness clamps, first determine where the harness assembly should be located, and the
direction in which it should point. Referring the picture below, you attach each clamp to the sections of white frame
tubes that appear in the u-shaped openings at the top of the liner sides.
When attaching each clamp, place the long tube side of the t-bar harness clamp angled upwards,
in the direction of the inside of the pool. The portion of the clamp that holds the adjustment knob
(used for tightening or loosening) must be located on the outside of the pool liner.
To properly thread the adjusting knob into each clamp, gently squeeze the top and bottom of the
clamp together with your fingers, or, if more force is needed, use a pair of pliers. Once threaded,
tighten the adjustment knob to secure the clamp to the liner frame tube, but don’t overtighten it
and crimp the tubing.
19
THE IPOOL INSTRUCTION MANUAL
Please carefuy read is instruction manual
before instaing and using e iPl
To install the clamps, attach two of them to the top frame tubes of the liner, on the long sides of the pool, directly
across from each other. Depending on the direction you want the harness frame to point in, install the third t-bar
harness clamp on the appropriate short edge of the pool. For example, to point the harness frame to the left,
mount the clamp on the right side of the pool.
