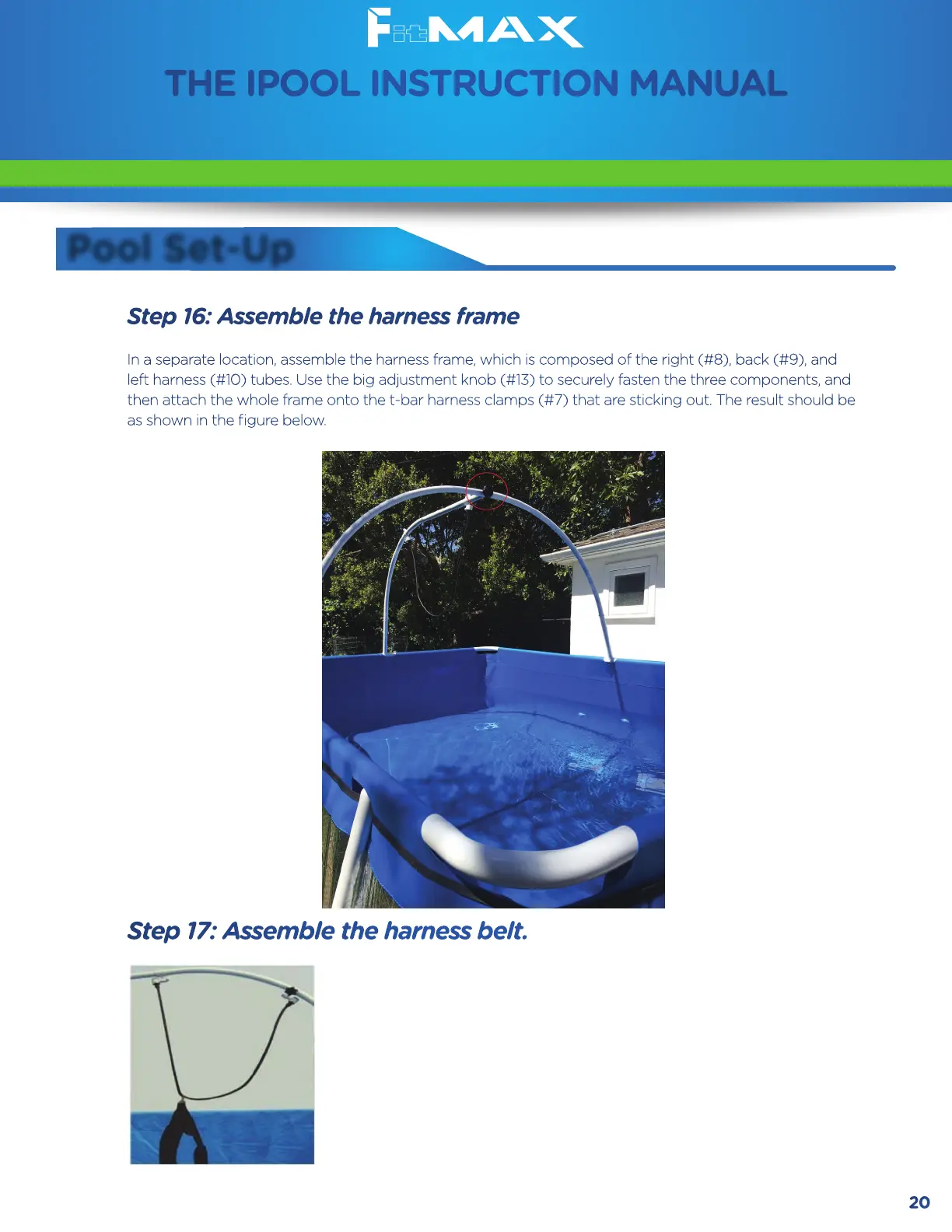

Step 16: Assemble the harness frame
In a separate location, assemble the harness frame, which is composed of the right (#8), back (#9), and
left harness (#10) tubes. Use the big adjustment knob (#13) to securely fasten the three components, and
then attach the whole frame onto the t-bar harness clamps (#7) that are sticking out. The result should be
as shown in the figure below.
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefuy read is instruction manual
before instaing and using e iPl
20
Step 17: Assemble the harness belt.
Insert the harness belt loop (#28) into the harness frame, then
attach the end of the harness frame with the harness connectors
(#12) and small adjustment knob (#14), as shown.
