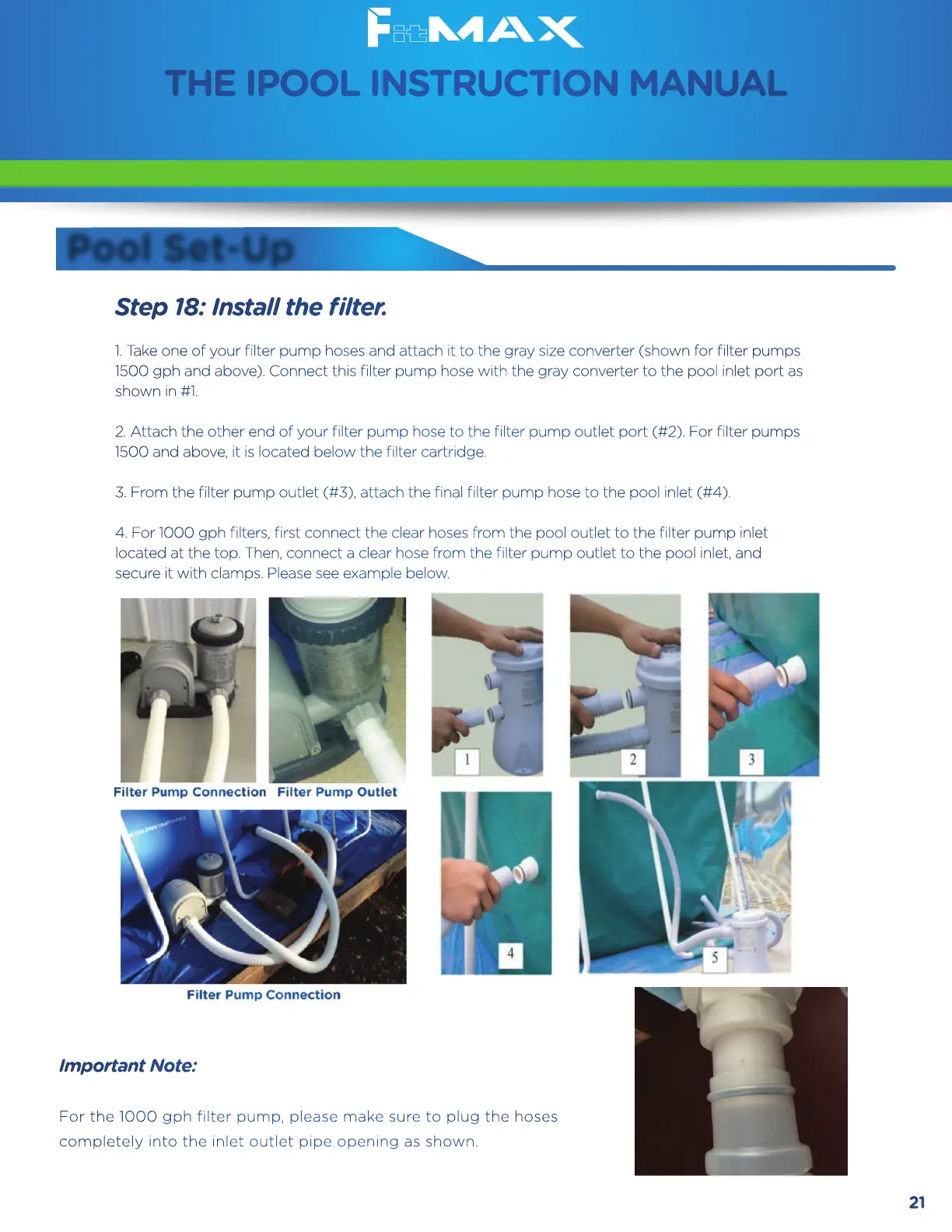

Step 18: Install the filter.
1. Take one of your filter pump hoses and attach it to the gray size converter (shown for filter pumps
1500 gph and above). Connect this filter pump hose with the gray converter to the pool inlet port as
shown in #1.
2. Attach the other end of your filter pump hose to the filter pump outlet port (#2). For filter pumps
1500 and above, it is located below the filter cartridge.
3. From the filter pump outlet (#3), attach the final filter pump hose to the pool inlet (#4).
4. For 1000 gph filters, first connect the clear hoses from the pool outlet to the filter pump inlet
located at the top. Then, connect a clear hose from the filter pump outlet to the pool inlet, and
secure it with clamps. Please see example below.
THE IPOOL INSTRUCTION MANUAL
Pool Set-Up
Please carefuy read is instruction manual
before instaing and using e iPl
21
Important Note:
For the 1000 gph filter pump, please make sure to plug the hoses
completely into the inlet outlet pipe opening as shown.
