MATRIX54
Control Element
The Front panel
- 4 -
1. Gain knob
this
knob controls input gain. Turn the knob clockwise, then the input increases. Turn the knob counter-clockwise,
then the input decreases.
2. High knob
This
is the treble control. You can use it to get rid of high frequency noises or to boost the sound of cymbals or the
high harmonics of the human voice. The gain range goes from -10dB to 10dB with the central frequency 10kHz.
3. Low knob
This
is the Bass control. Boost male voice or kickdrum and bass guitar. Your system will sound much bigger than
what it is. The gain range goes from -10dB to +10dB and the center frequency is 100 Hz.
4. VOL knob
This knob controls volume. Turn the knob clockwise, and the volume increases.
Turn the knob counter clockwise, and the volume decreases.
5. AREA SELECTOR
A1, A2, A3, A4 can be considered as signal assignment switches. Press the button A1 down and signal will be
assigned to AREA 1. Release the button and it stops Assigning signal to AREA 1. A2, A3, A4 can be operated in
the same way.
6. Phone Volume
This knob controls the volume of Phone (refer to 7).Turn the knob clockwise, and it increases the volume, and vice
versa.
7. Phone
The signals of amplifier can be sent to a pair of headphones through this socket.
8. Monitor Volume
This knob controls the output signal level to monitor output.
9. AREA
1 VOLUME
VOLUME controls the output signal level of AREA 1.
10. LED VU-meter
This stereo 6 segment LED-meter indicates the level of the overall output signal.
1
2
3
4
5
6
7
8
9
10
11
12
13
- 7 -
MATRIX54

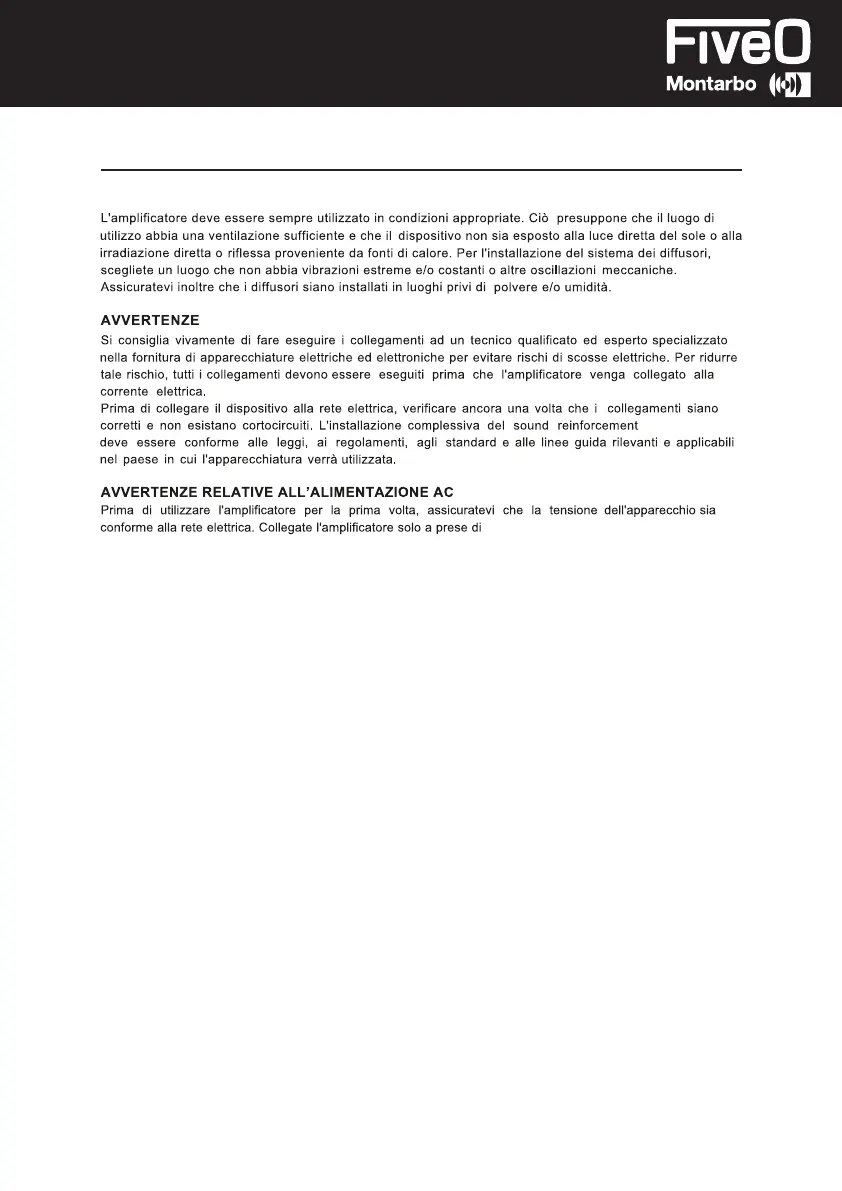

Installazione
NOTE RELATIVE ALL’ INSTALLAZIONE
