Model 400 A B C F G *G1 H
inches 10 5/16 12 1 3/8 13 11/16 3 3/4 10 4 1/8
mm 2262 305 35 347 95 255 61
*G1 is for LBT version
Gasket thickness is 4 millimeters

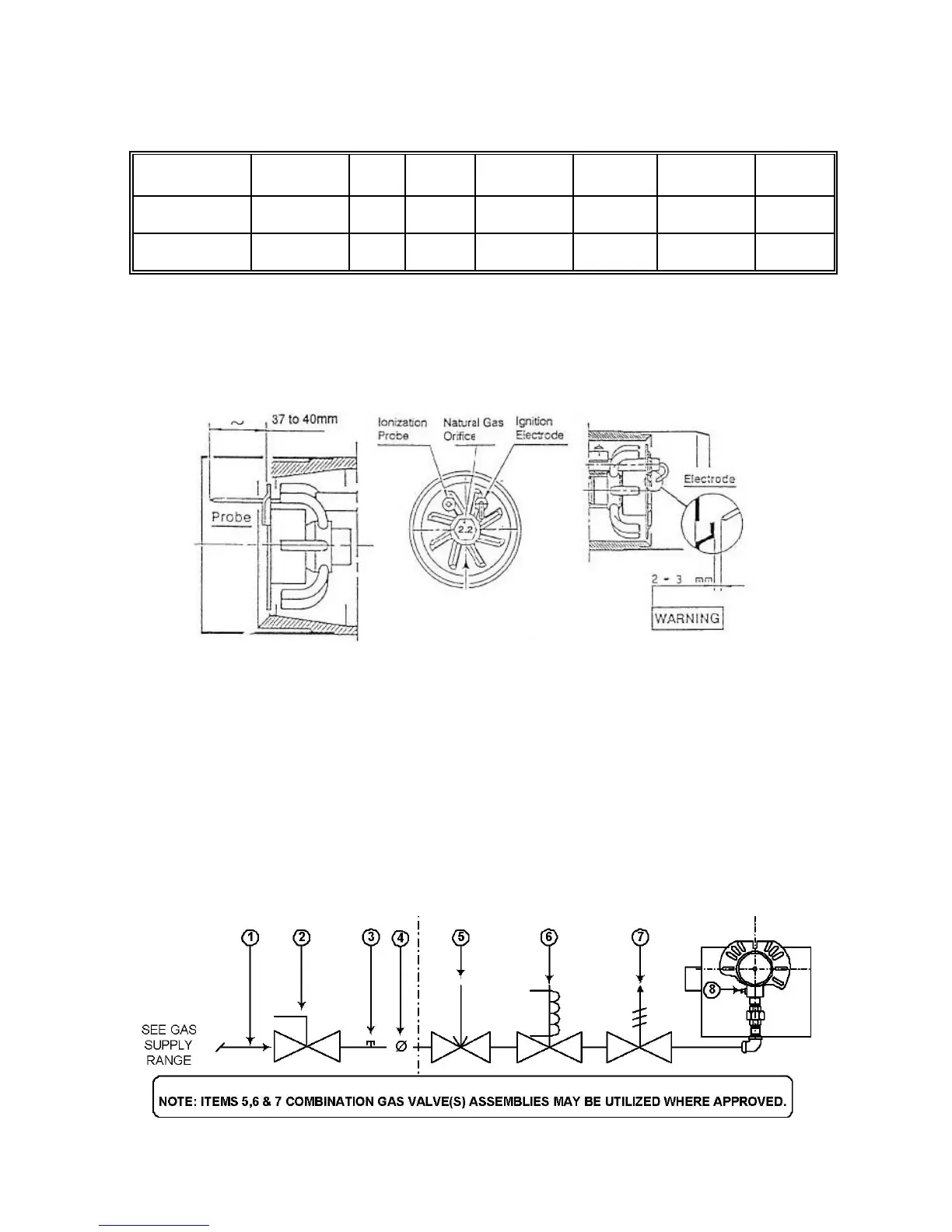

ELECTRODE AND FLAME PROBE ADJUSTMENTS
IMPORTANT: Do not turn the ignition electrode. Leave it as shown in the
drawing. If the ignition electrode is put near the ionization
probe, the amplifier of the control box may be damaged.
TYPICAL GAS TRAIN LAYOUT
FIELD SUPPLIED RIELLO SUPPLIED
To Next Page
