Flavel Arundel MK2 - Rear Flue Connection and Sealing; Rear Flue Outlet Configurations; Critical Air-Tightness Requirements

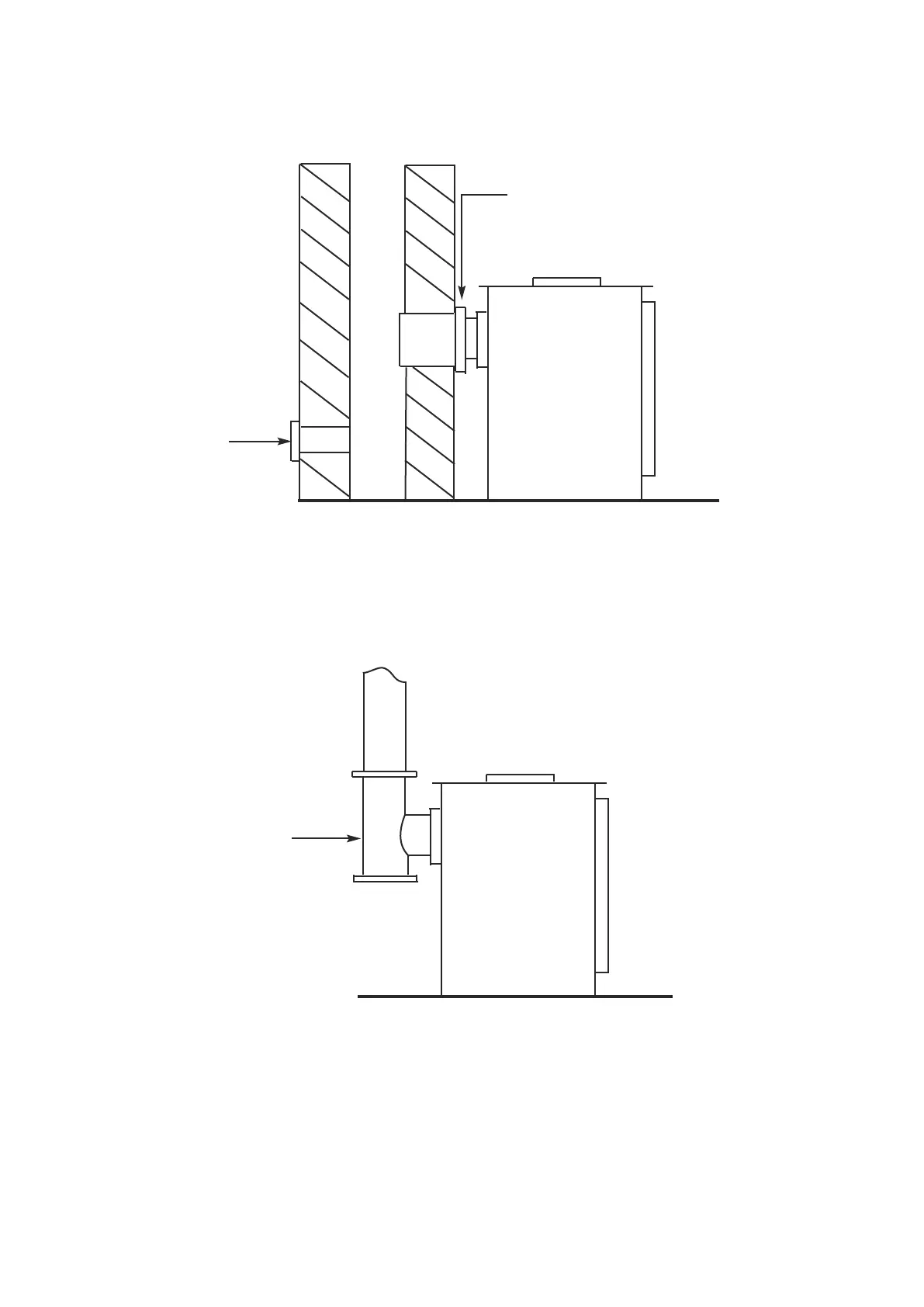

3.1.3 Rear flue outlet into chimney with sealing collar - figure 4
Fig. 4
3.1.4 Rear outlet by “tee” piece with cleaning door - figure 5
Fig. 5
3.1.5 IMPORTANT INFORMATION - whichever method is used it is imperative that the
route from the stove to the chimney terminal is completely air-tight, even very
small air gaps can adversly affect the flue draught. Seal all joins with fireproof
cement and / or heatproof rope. The entire construction should be made of
durable fireproof materials.
Cleaning door
Fireproof and air tight seal
required all round
“T” piece with cleaning door
Page 9 of 18
