Flavel FCF5050 - Page 18

90
o
2
1
3
5
1
a
4
b
PS
PS
≤ 17
Torx
(T)
x6
Wood
(W)
x10
Plastic Sheet
(PS)
x12
Wood
(1TW)
x3

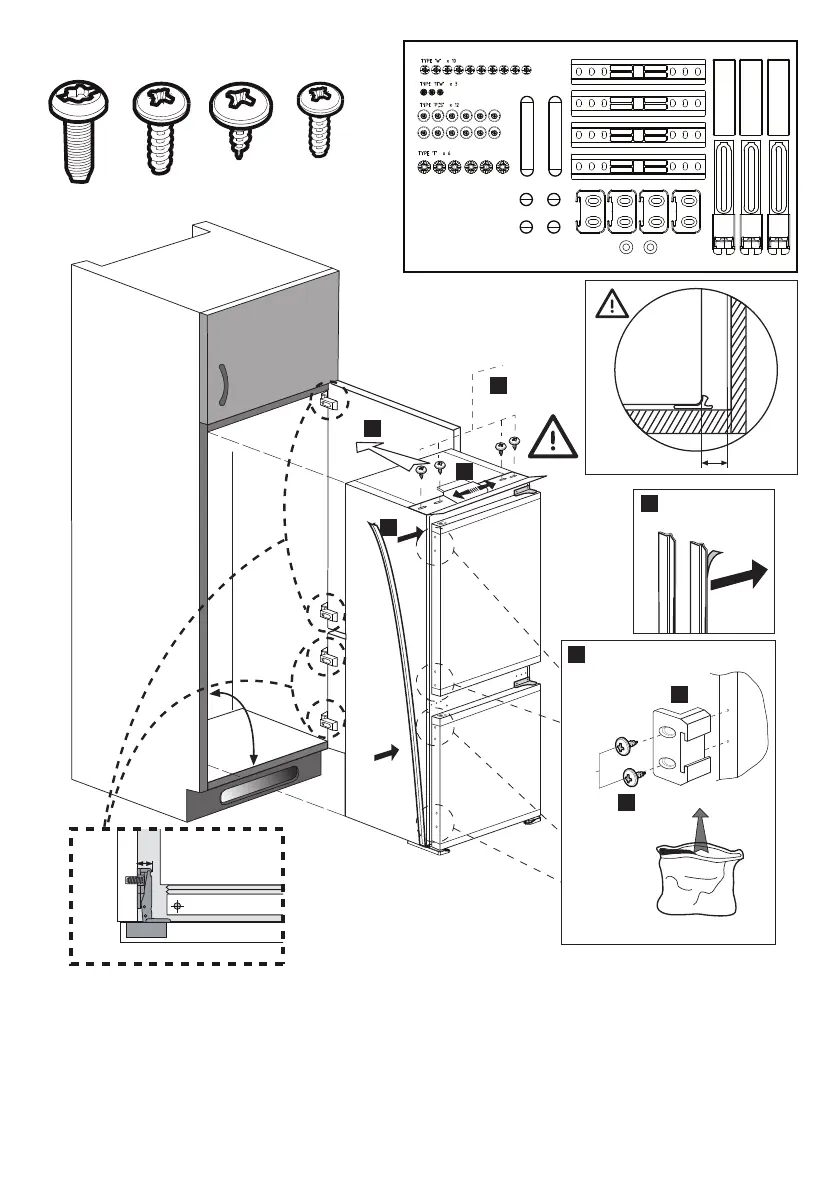

Note: Installation step for 2, screws for connecting top plastic part should not be screwed very hard, because
of moving the plastic part easily left or right side.
42 mm
Top
view
16
