MGS200 Installation Guide Feb, 10
Condential Version 1.4
When the ignition is rst turned on the MGS200 will power-up. The
Green LED will show solid for approximately 30 seconds. At no other
time should be green LED remain on solid for such a long period.
After 30 seconds the green LED will start to ash at the following rates:
25 times on-o every 10 seconds when the ignition is on
(this is quite rapid)
8 times on-o every 10 seconds when the ignition is o
(this is quite slow)
Very short blip once every 3 seconds when in sleep mode
The green LED will also show if there is a active input by ashing a
number of times corresponding to the input (1,2,3,4). For example
if input 4-Alarm is active then there will be 4 short ashes every 3
seconds.
•
•
•

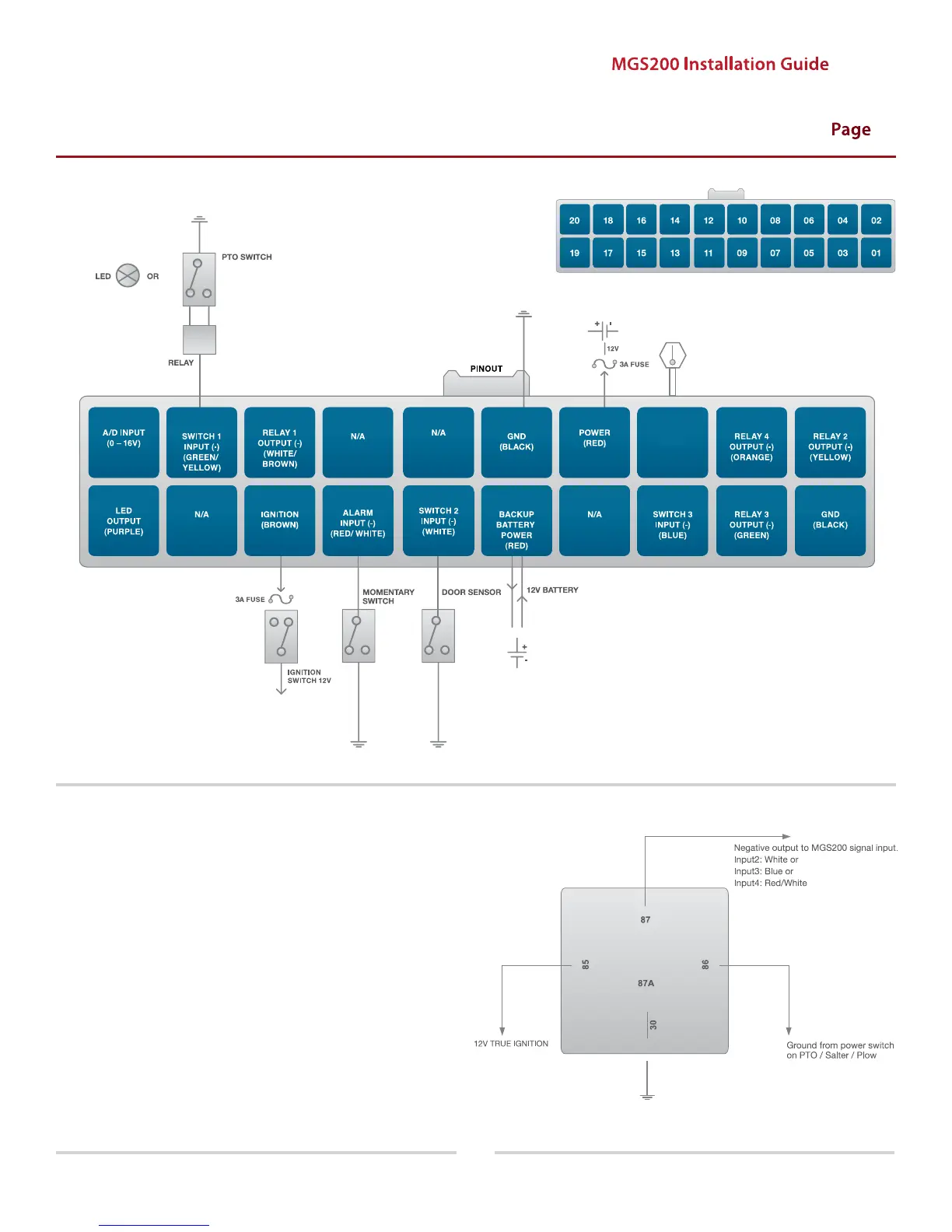

Page 06
Applies to Serial #
000003260000 (+)
1 wIRe
DATA
TeMPeRATURe PRObe
