Flow return tap
The Kombi Classic line marker is fitted with a flow return tap, this can be
used for mixing concentrates and bleeding air from the system.
To operate the flow return system, proceed as follows:
1. Ensure the paint/water changeover valve is in the ‘paint’ position
(lever pointing forward) (Fig 11)
2. Turn the flow return tap through 90 degrees (in line with hose. See
Fig 12)
3. Switch the machine on by switching the ON/OFF switch, paint will
now circulate around the system and back into the tank.

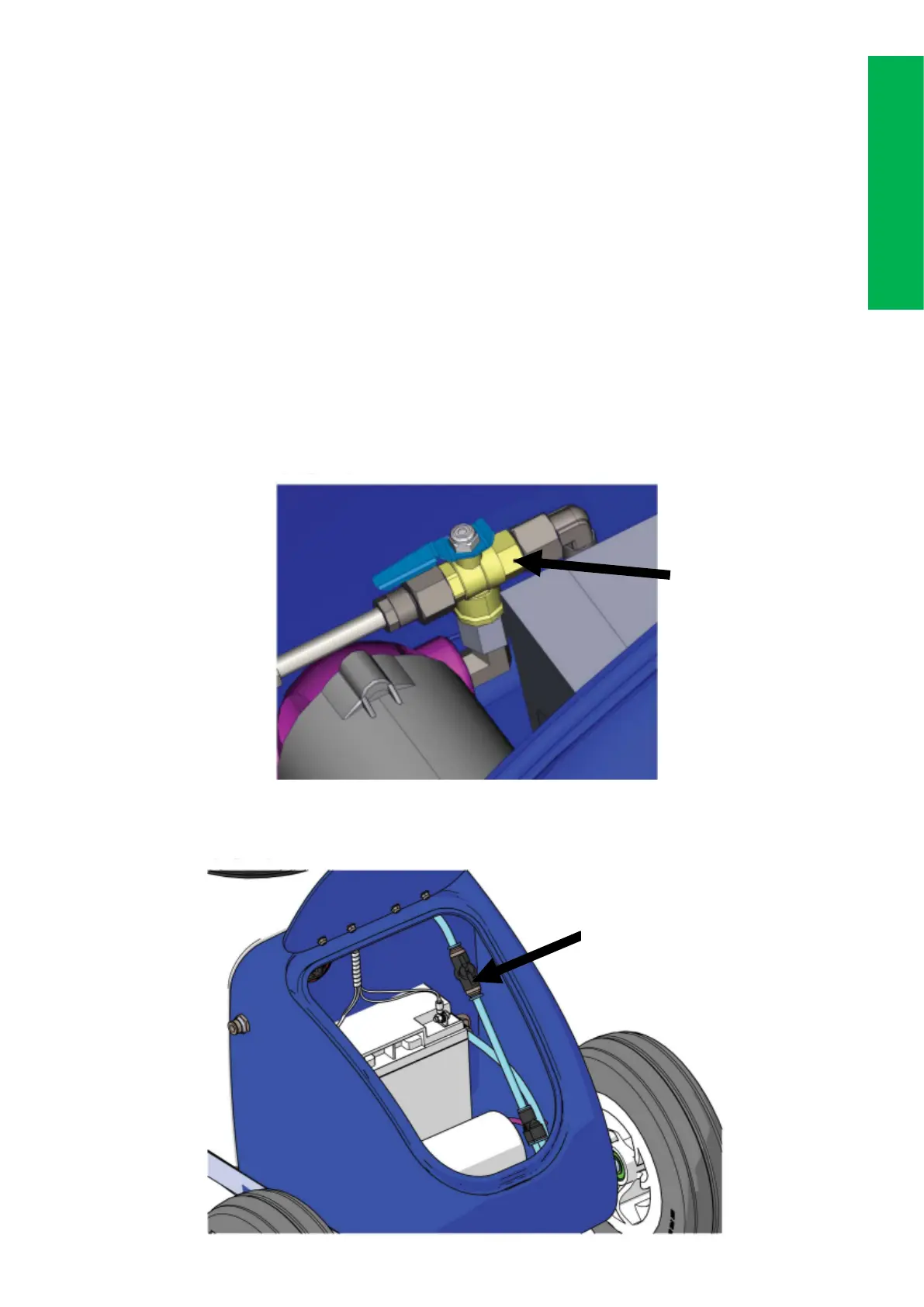

(Fig 11)
(Fig 12)
Paint/water tap
Flow Return Tap
