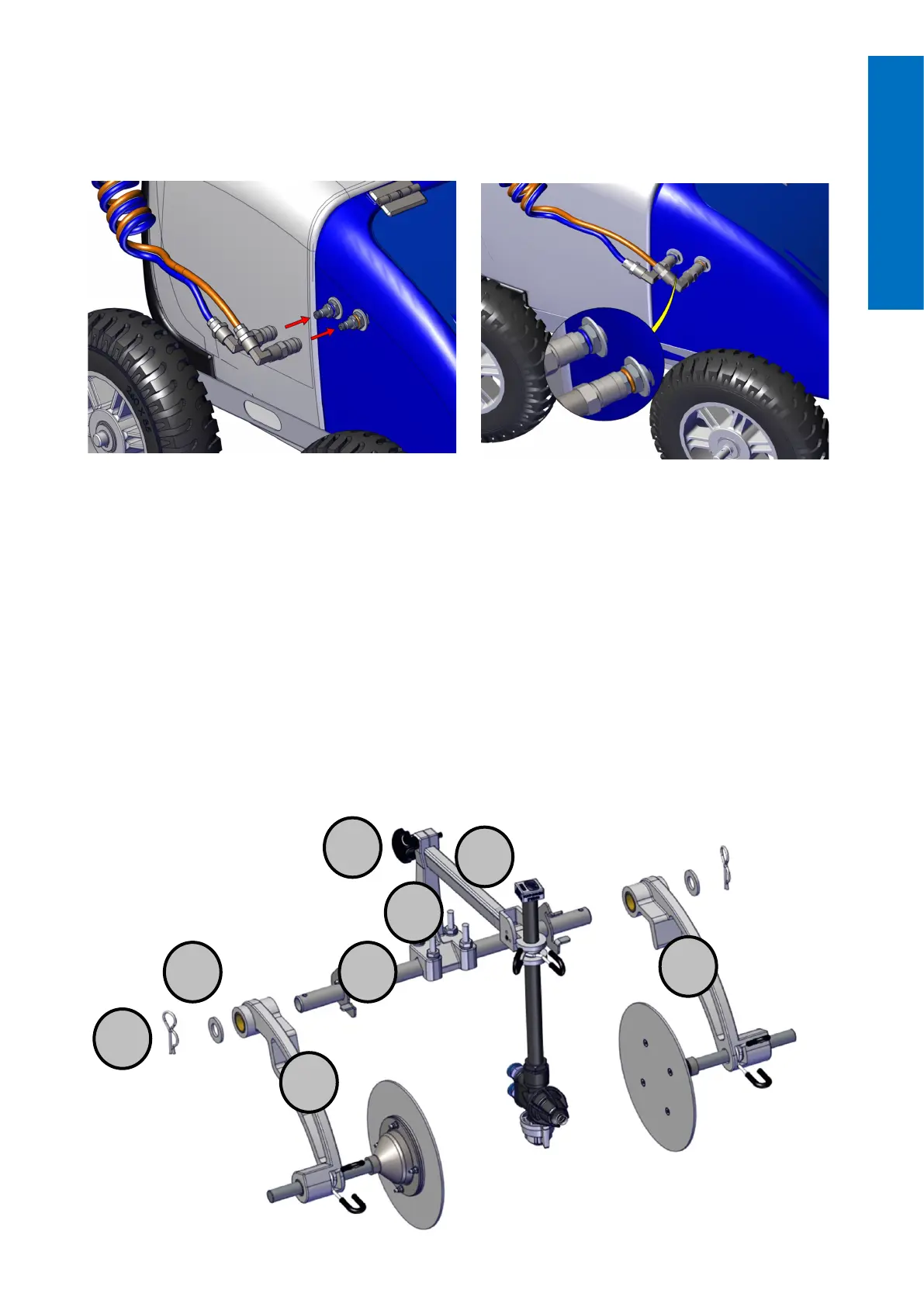

9. You will need to connect the orange and blue pipes to the side of the ma-
chine, to do this the orange pipe connects to the fitting furthest forward on the
machine. The blue pipe connects to the connection furthest back on the
machine.
KNIB AND NOZZLE ASSEMBLY
The Knib and nozzle assembly is located inside the paint tank of the machine and
requires some assembly before use.
Refer to the diagram below and follow these steps.
1. Remove packaging from tank.
2. Place arms (A) & (B) over the pivot bar (C)
3. Fit a washer (D) on each end of the pivot bar shaft, secure using R Clip (E)
4. Insert nozzle support arm (F) into the support pillar (G) and secure with thumb
screw (H).
H
G
F
B
C D
E
A
Assembly
3
