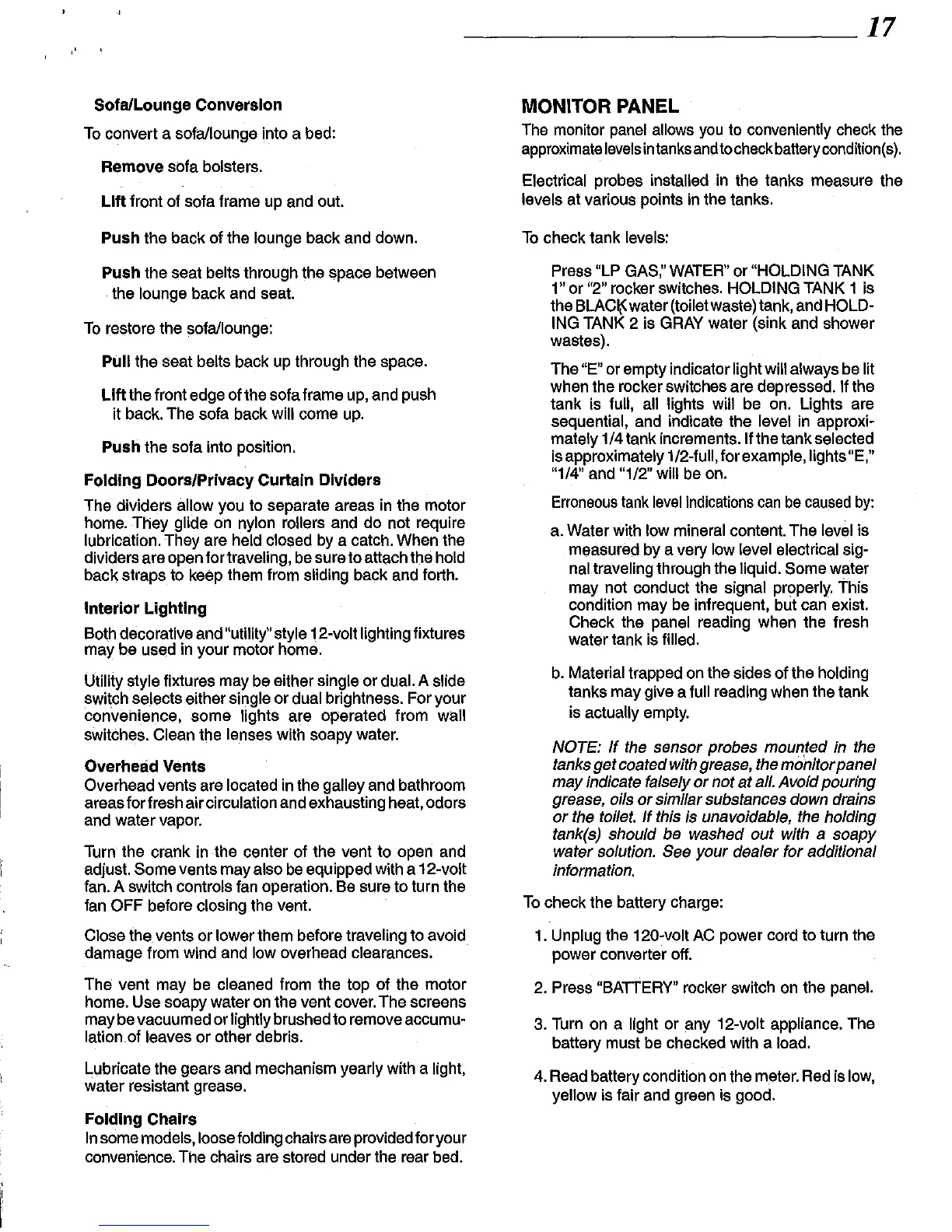

______________________
17
Sofa/Lounge Conversion
To
convert a sofa/lounge into a bed:
Remove
sofa bolsters.
Lift front of sofa frame up and out.
Push the back of the lounge back and down.
Push the seat belts through the space between
the lounge back and seat.
To
restore the sofa/lounge:
Pull the seat belts back up through the space.
Lift the front edge
of
the sofa frame up, and push
it back. The sofa back will come
up.
Push the sofa into position.
Folding Doors/Privacy Curtain Dividers
The dividers allow you to separate areas in the motor
home. They glide on nylon rollers and do not require
lubrication. They are held closed by a catch. When the
dividers are open fortraveling, be sure to attach the hold
back straps to keep them from sliding back and forth.
Interior Lighting
Both decorative and
"utility" style 12-volt lighting fixtures
may be used in your motor home.
Utility style fixtures may be either single or dual. A slide
switch selects either single or dual brightness. For your
convenience,
some
lights are operated from wall
switches. Clean the lenses with soapy water.
Overhead Vents
Overhead vents are located in the galley and bathroom
areas for fresh air circulation and exhausting heat, odors
and water vapor.
Turn the crank in the center
of
the vent to open and
adjust.
Some vents may also be equipped with a 12-volt
fan. A switch controls fan operation. Be sure to turn the
fan
OFF before closing the vent.
Close the vents
or
lower them before traveling to avoid
damage from wind and low overhead clearances.
The vent may be cleaned from the top
of
the motor
home. Use soapy water on the vent cover. The screens
may be vacuumed or lightly brushed to remove
accumu-
lation.of leaves
or
other debris.
Lubricate the gears and mechanism yearly with a light,
water resistant grease.
Folding Chairs
In
some models, loose folding chairs are provided for your
convenience. The chairs are stored under the rear bed.
MONITOR PANEL
The monitor panel allows
you
to conveniently check the
approximate levels
in
tanks and to check battery condition(s).
Electrical probes installed in the tanks measure the
levels at various points in the tanks.
To
check tank levels:
Press "LP GAS," WATER" or "HOLDING TANK
1" or "2" rocker switches. HOLDING TANK 1 is
the
BLAC\< water (toilet waste) tank, and HOLD-
ING
TANK 2 is GRAY water (sink and shower
wastes).
The
"E" or empty indicator light will always be lit
when the rocker switches are depressed.
If the
tank is full, all lights will be on. Lights are
sequential, and indicate the level in approxi-
mately 1/4 tank increments.
If the tank selected
is approximately 1/2-full, for example, lights
"E,"
"1/4"
and "1/2" will be on.
Erroneous
tank
level
indications
can
be
caused
by:
a. Water with low mineral content. The level is
measured by a very low level electrical
sig-
nal traveling through the liquid. Some water
may not conduct the signal properly. This
condition may be infrequent, but can exist.
Check the panel reading when the fresh
water tank is filled.
b.
Material trapped on the sides
of
the holding
tanks may give a full reading when the tank
is actually empty.
NOTE:
If
the
sensor
probes
mounted
in the
tanks
get
coated
with grease, the
monitor
panel
may
indicate falsely
or
not
at
all.
Avoid
pouring
grease, oils
or
similar substances down drains
or
the toilet.
If
this is unavoidable, the holding
tank(s)
should
be
washed
out
with a
soapy
water
solution. See
your
dealer
for
additional
information.
To
check the battery charge:
1. Unplug the 120-volt AC power cord to turn the
power converter off.
2. Press "BATIERY" rocker switch on the panel.
3. Turn on a light
or
any 12-volt appliance. The
battery must be checked with a load.
4. Read battery condition on the meter. Red is low,
yellow is fair and green is good.
