Ground Cable
● Thegroundcableneedstocarrythesamecurrentasthepowercable.Atleastan8gaugecableshouldbeused.
● Theamplifiergroundshouldbeconnecteddirectlytothechassisofthevehicle,tobaremetal.
● Thecablelengthshouldbekepttoanabsoluteminimum.
(NB) It
isnotrecommendedthatyouconnectthegroundcabletothevehiclesseatbeltsanchorpoint.
Remote Turn On
● A minimumof18gaugecableshouldbeusedforthisconnection.
● Thecableshouldberunwithexactlythesamecareandattentionasthepowercableandtakenbacktothesource
(headunit)
andjoinedtotheremotecableprovided.
● Ifthesource(headunit)doesnothavearemoteturnoncablethena12vsupplyshouldbeused.Thiswillrequirea
switchtobefittedinlinetoenabletheamplifiertobeturnedonandoff.Rememberthatifthisswitch
isleftonyouwill
flattenthecarbattery.
RCA Cables
● Dependingonthemodelnumberofyouramplifierandthenumberofspeakersyouwishtopoweryouwillhavetorun
eitheroneortwoRCA cablesfromthesourcetotheamplifier.
● Pleasetakeextracarewhenrunningthesecables
fromthesourcetotheamplifier.Ensurethattheyareplacedaway
fromallitemsthatcangenerateanyinterference,wiringharnessesetc.
● ItisrecommendedthattheRCA cablesshouldberunontheoppositesiteofthecartothepreviouslyinstalledpower
cables,ifpossible.

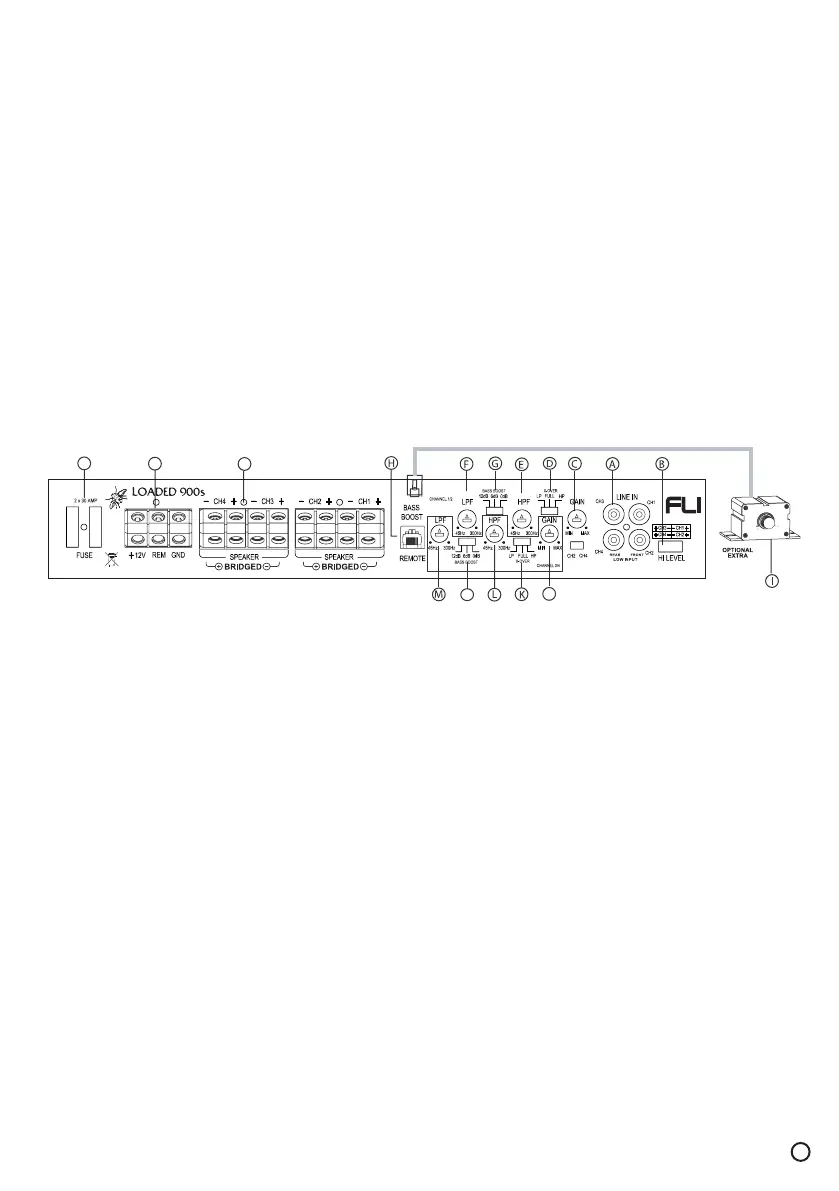

A. Low Level Input
Forconnectiontoanysource(headunit)withalowleveloutput.Thisis yourRCA outputfromthesource(headunit).
B. High Level Input
TobeusedwhennoRCA’sareavailable.Usetheprovidedloomtoconnecttoclosestspeakers.Theloomprovidedwillonly
fitonewayround.Oncepluggedinyoushouldconnectthewiresthiswayaround:
Grey–FrontRightSpeakerPositive
Grey/Black–FrontRightSpeakerNegative
Black
/White–FrontLeftSpeakerNegative
White–FrontLeftSpeakerPositive
Purple–RearRightSpeakerPositive
Purple/Black–RearRightSpeakerNegative
Blue/Black–RearLeftSpeakerNegative
Blue–RearLeftSpeakerPositive
C. Channel 1 / 2 Gain Control
Usedtomatchtheinputsignalofthesource(headunit)totheamplifier.Seethesetupsectionformoredetails.
D. Channel 1 / 2 Cross Over Select Switch
UsedtoselectbetweenFlat,HighPassFilterandLowPassFilter.
Thehighpassfilterwillonlyallowhigh frequencyinformationtobepassedtothespeaker(s)whilethelowpassfilterwillonly
allowlowfrequencyinformationtobesent.
Ifnofilterneedstobeappliedthenplace
theswitchintheflatposition.
