7. PAUSE IMAGE: There is no pause or freeze function. You must first save an image then recall it (see below).
8. SAVE IMAGE: Pull the trigger to save an image.
9. RECALL IMAGE: Press the Camera/Archive Button, then do one of the following.
To display and find a single saved image press the Navigation Pad left/right.
To open an image, press the Right Selection Button (Open).
To display thumbnails of all saved images press the Navigation Pad up [+] button.
To select the thumbnail you wish to open use the navigation Pad up [+]/down [-]//left/right.
To open an image press Right Selection Button (Open).

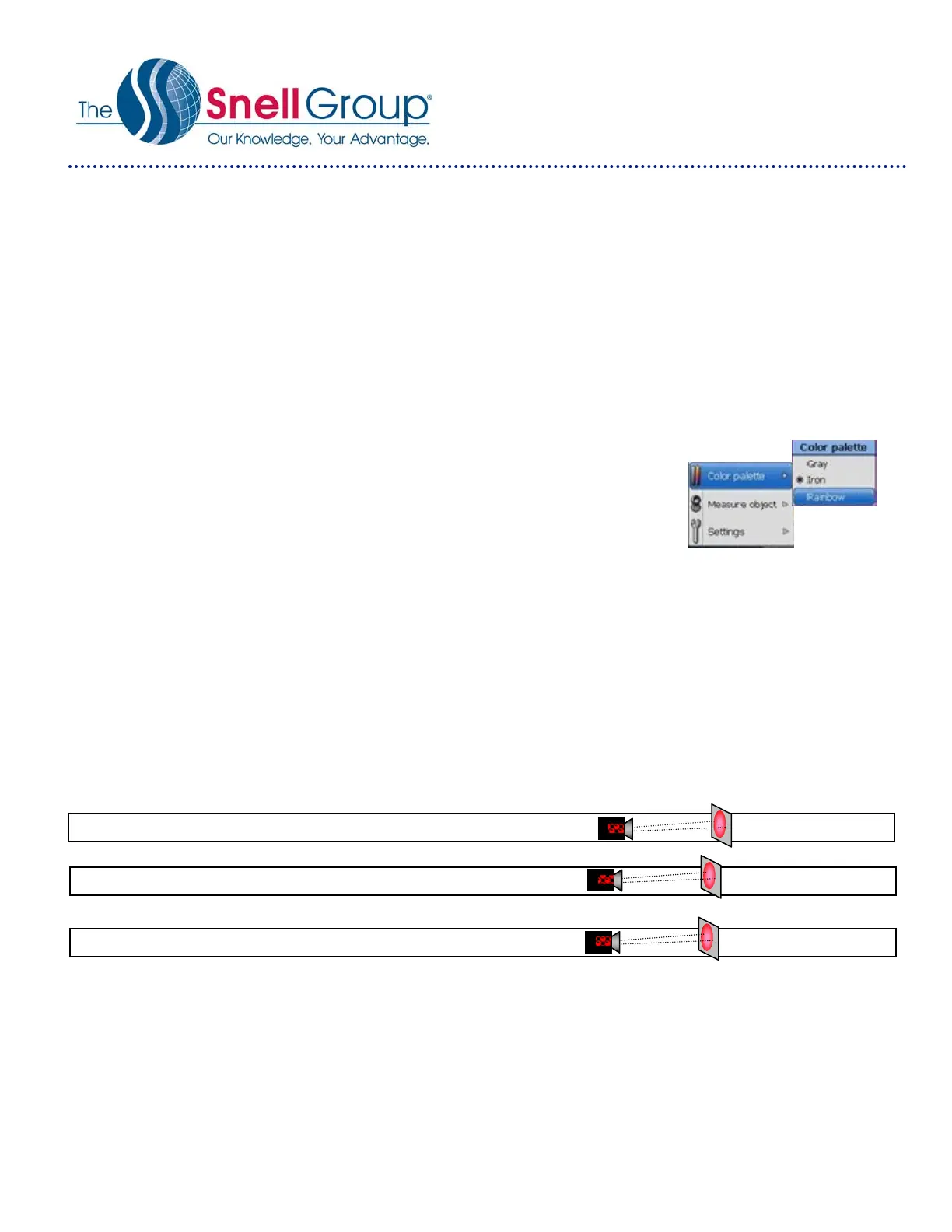

10. PALETTE: Press the Left Select (Menu) Button to show the menu (Fig.4).
Using the Navigation Pad to move up or down, highlight Color palette then
press the Left Select Button again.
Now use the Nav. Pad up/down to highlight the desired palette.
Press select again to change the palette, close the menu and return to
the image. AA
11. RANGE: The i-series has a single temperature Range: -4 to +482˚F (-20 to +250˚C)
12. EMISSIVITY and BACKGROUND TEMP: Press the Left Select (Menu) Button; highlight “Measure Object”
then press the Right arrow again. Now highlight “Advanced” then press right arrow. Next highlight either
“Emissivity” or “Background Temperature” then press right arrow. This will highlight the current value, use the up
and down arrow to change the value.
FLIR i3
FLIR/EXTECH i5
FLIR i7
IFOV =3.73 mRad (Theoretical with 60x60 Detector and standard 12.5˚x12.5˚ lens) Detect 1in. target @ 22ft.
Fig.4
IFOV =3.73 mRad (Theoretical with 80x80 Detector and standard 17˚x17˚ lens) Detect 1in. target @ 22ft.
IFOV =3.73 mRad (Theoretical with 80x80 Detector and standard 17˚x17˚ lens) Detect 1in. target @ 22ft.
