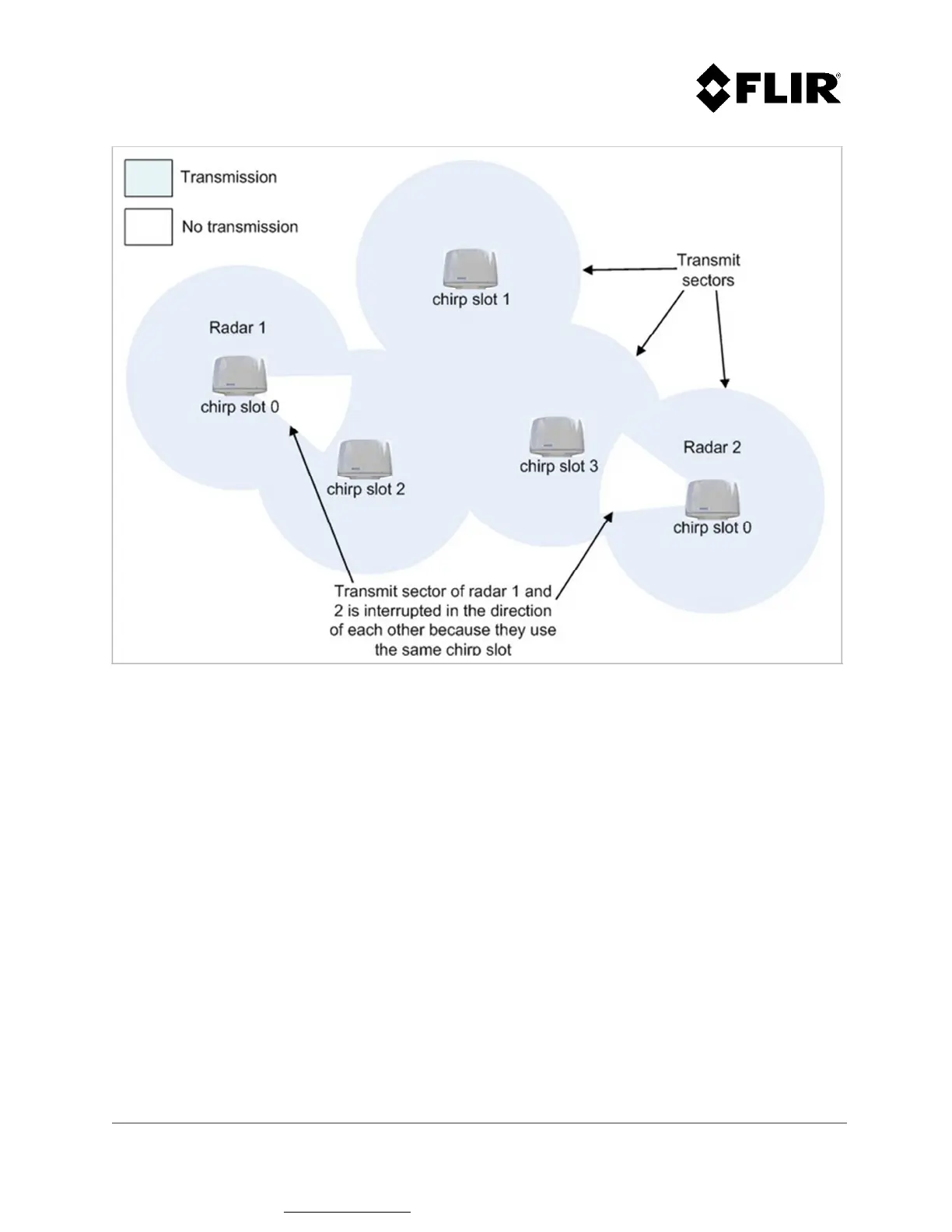

Figure 25 - Reusing Chirp Slots
The R1, R2, R3, R3D, R5 and R5D possess 8 chirp slots in FastScan mode. The R3D has 4 chirp slots in
3400m Doppler mode and 2 chirp slots in 6500m Doppler mode. The R5D has 6 chirp slots over 2
frequency bands in 5500m Doppler mode and 4 chirp slots over 2 frequency bands in 10500m Doppler
mode.
