FLIR SCOUT TK User Manual

11
USER MANUAL # 4204190 - Rev 1

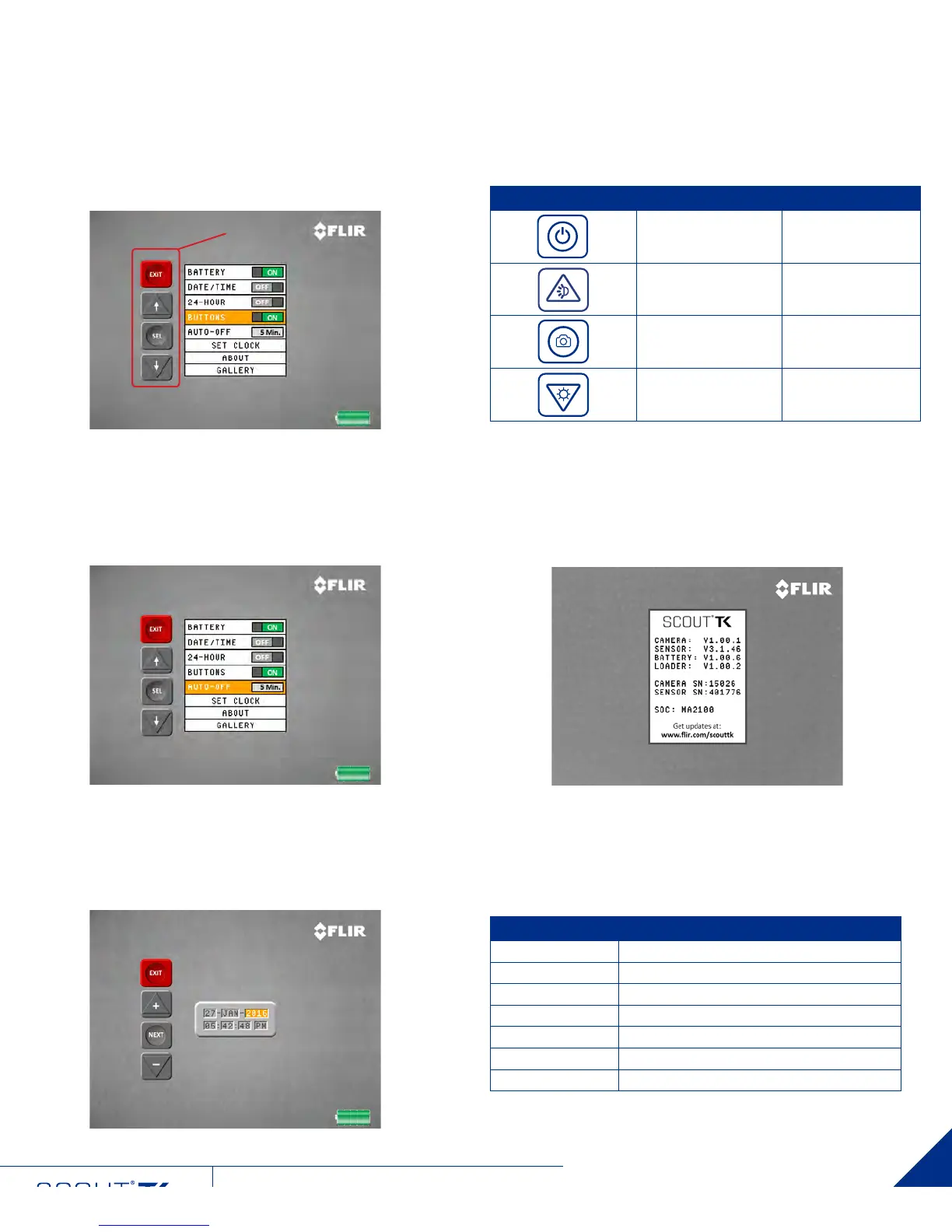

4.1.4 BUTTONS
The user can enable/disable the reference button actions from
the display. The button functions shown on the screen match
the actions generated by pressing the camera’s buttons.
4.1.5 AUTO POWER OFF (APO)
The user can set the amount of time that the camera can be active
without any user interaction prior to shutting off. The options are 5
minutes (Default), 10 minutes, 20 minutes, and never.
4.1.7 ABOUT
Pressing the snapshot button with the About option highlighted
will bring up the About dialogue box. This displays the software
loaded into the camera as well as the serial numbers of the
camera and sensor. Press any button to exit.
4.1.6 SET THE CLOCK
Pressing the snapshot button with the Clock option highlighted
will bring up the set clock dialogue box.
On-Screen button functionality
Set length of time for auto shutoff
Access information about your specic camera
Buttons
BUTTON
SHORT PRESS LONG PRESS
Exits the set clock
dialog box
Turns Power OFF
Increases the value of
the highlighted item
by one increment
Quickly increases the
value of the
highlighted item
Moves to the next item N/A
P
Decreases the value of
the highlighted item
by one increment
Quickly decreases the
value of the
highlighted item
4.1.6 SET THE CLOCK continued
The button actions listed below can be used to set the
date and time:
The only software that has the ability to be updated by the
end user is the “Camera” software. See Software Update
section for details. The about dialogue box provides the
following information.
ITEM DESCRIPTION
Camera: VX.XX.X Current version of camera’s software
Sensor: VX.X.XX Current version of Lepton core software
Battery: VX.XX.X Current version of battery management software
Loader: VX.XX.X Current version of system bootloader
Camera SN: XXXXXX Scout TK’s serial number
Sensor SN: XXXXXX Lepton core’s serial number
SOC: MA21XX Processor Type
1.800.561.8187 info@FLIR-Direct.ca
FLIR-DIRECT.ca

FLIR SCOUT TK Specifications

Display

display resolution	640 x 480 pixel LCD
refresh rate	<9Hz
color palettes	User Selectable: WhiteHot/BlackHot/InstAlert™/ Graded Fire/Iron/Lava/Rain/Color Wheel

Power

battery type	Internal Li-Ion Cell
battery life	>5 Hours
usb port	Micro-USB

Operating Environment

ingress protection rating	IP-67, Submersible
operating temperature	-20°C to 40°C
storage temperature	-40°C to 60°C

Weight and Dimensions

weight	184g
size	14.9cm x 5.5cm x 5.5cm
