FLIR SCOUT TK User Manual

8
USER MANUAL # 4204190 - Rev 1
LAVA
Lava simulates the glow of hot lava against a cold surface.
The colors are in strong color contrast.
RAIN
Well-suited for low contrast scenes.
COLOR WHEEL
Similar to rain but has even more contrast since the base
colors are opposites in the color wheel.
BUTTON
SHORT PRESS LONG PRESS
Accesses User Menu Turns Power OFF
Moves up through the
color palette options
by one increment
Quickly moves up
through the color
palette options
Exits the color
palette menu
N/A
P
Moves down through
the color palette options
by one increment
Quickly moves down
through the color
palette options
While in the color palette selection menu the buttons have the
following functionality:

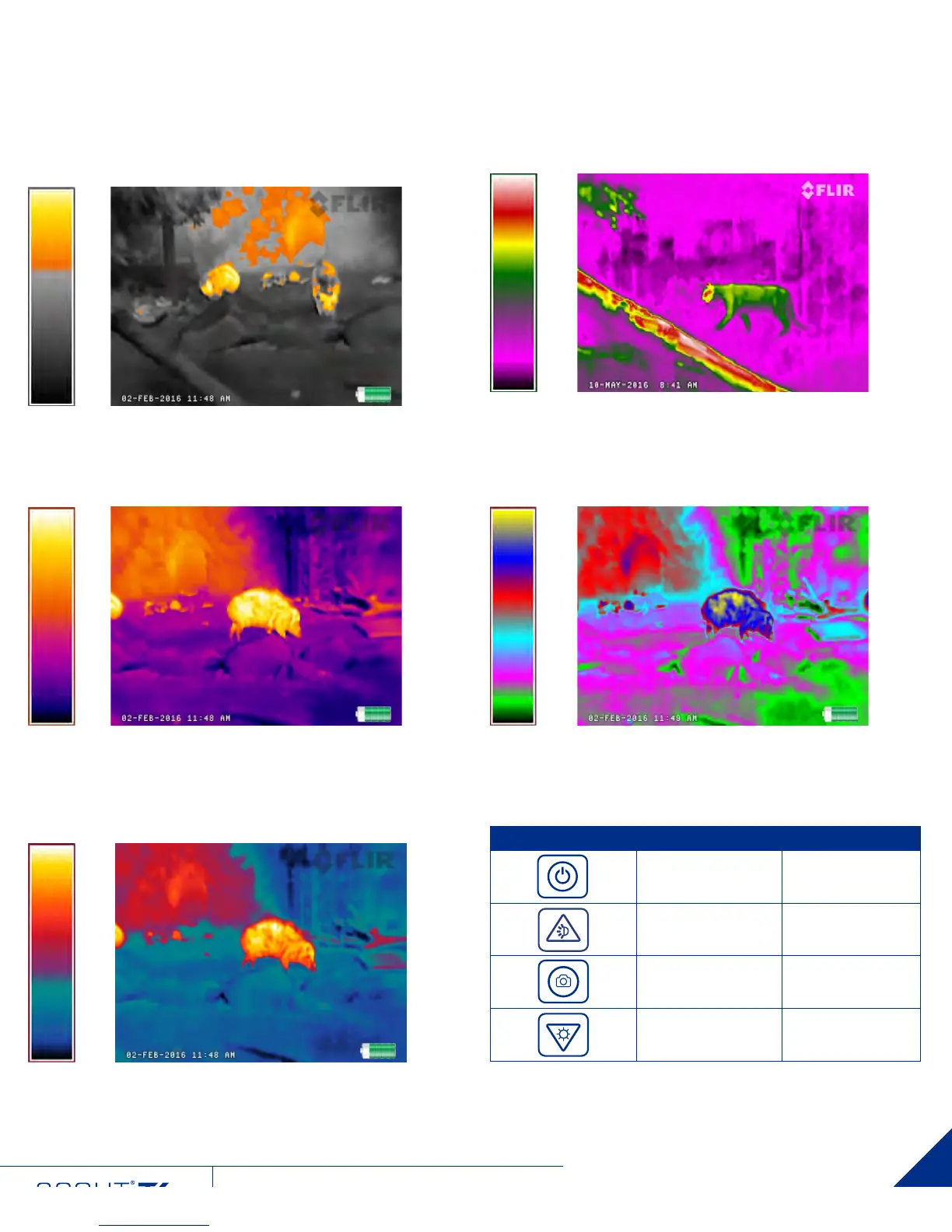

GRADED FIRE 2
Similar to Graded Fire 1 but has more grey levels colorized
at the top.
IRON
Iron simulates the glow of things that are heated to visible
incandescence, like an iron in the re.
1.800.561.8187 info@FLIR-Direct.ca
FLIR-DIRECT.ca

FLIR SCOUT TK Specifications

Display

display resolution	640 x 480 pixel LCD
refresh rate	<9Hz
color palettes	User Selectable: WhiteHot/BlackHot/InstAlert™/ Graded Fire/Iron/Lava/Rain/Color Wheel

Power

battery type	Internal Li-Ion Cell
battery life	>5 Hours
usb port	Micro-USB

Operating Environment

ingress protection rating	IP-67, Submersible
operating temperature	-20°C to 40°C
storage temperature	-40°C to 60°C

Weight and Dimensions

weight	184g
size	14.9cm x 5.5cm x 5.5cm
