ATTENTION!!! Please be careful when doing this operation.

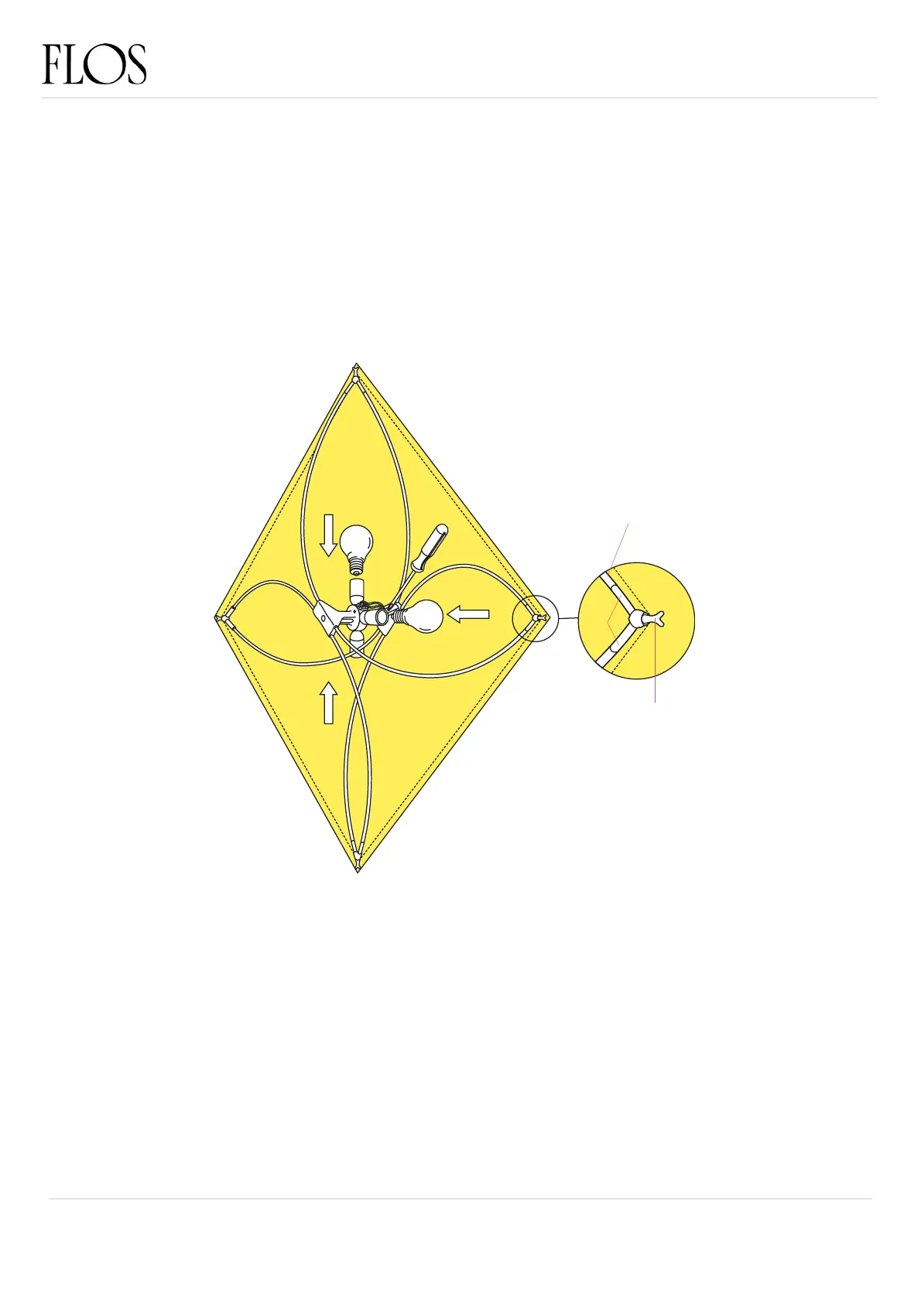

Insert fiberglass rods (H) in proper holes and join them together with “V” shaped connectors (M).
Attach rear fabric diffuser to the four “V” shaped connectors (N).
Attach front fabric diffuser to the “V” shaped connectors (N) with seams facing inside.
EN
Fig.1
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos - All rights reserved - www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
N
H
M
RF06111
ARIETTE 2 FRONT/REAR CLOTHS
ARIETTE 2 F0500009
REV. 1
DATE 22/06/2021
