WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos - All rights reserved - www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Fig.3

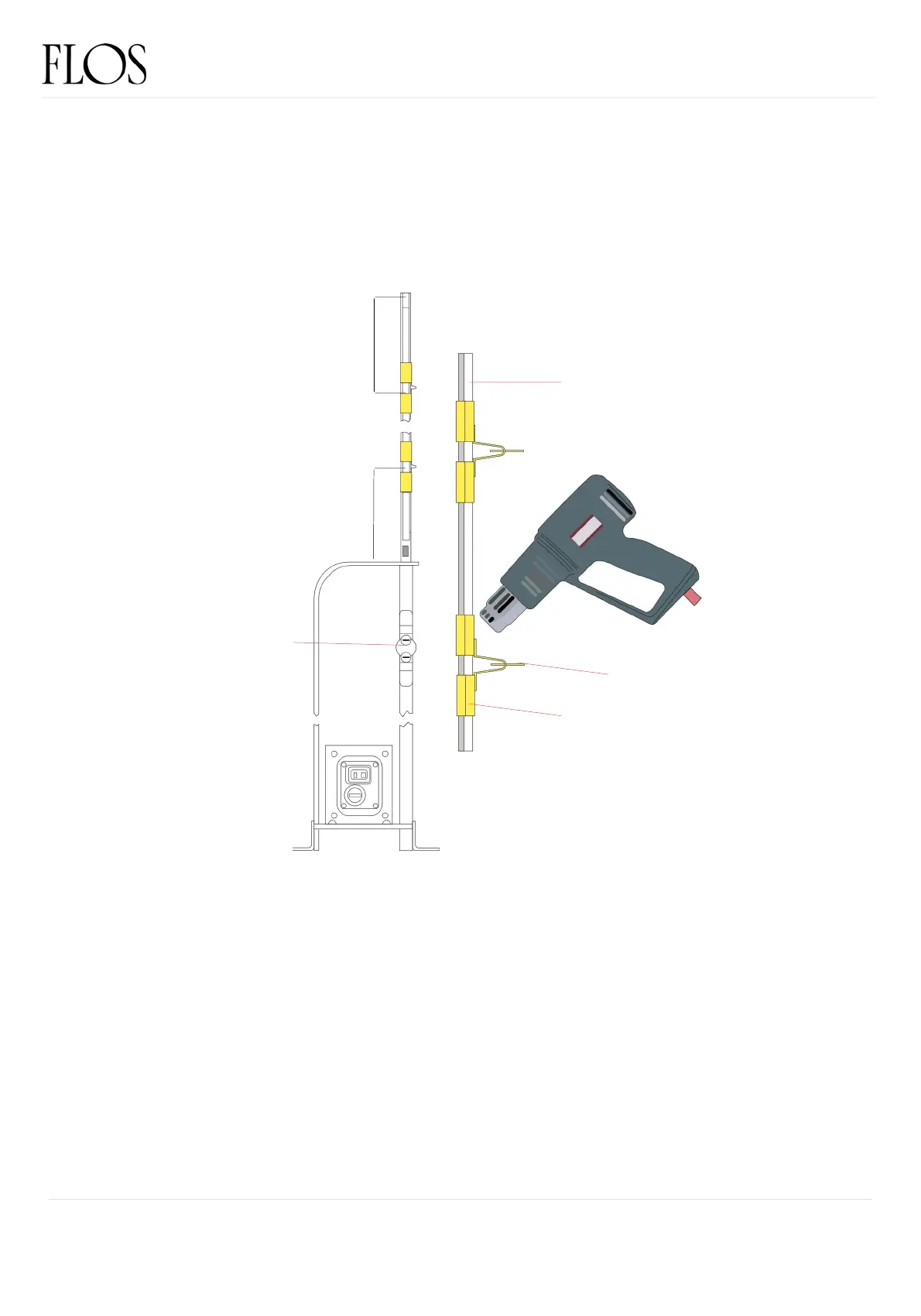

Insert through the rod (B) all the black heat shrink tubes (D).
Collocate the loops (F) between the heat shrink tubes (D) and shrink
the tubes (D) by utilizing a heat gun.
REMARK!!!
Position the loops (F) facing the left hand side of the rod
(B). The loops must stay on the side where present the knob and cable
winder (G).
REV. 2
DATE 25/11/2021
RF7600100
WIRE LOOP ASSEMBLY
TOIO F7600035
B
F
D
G
7 cm 10 cm
