WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos - All rights reserved - www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN

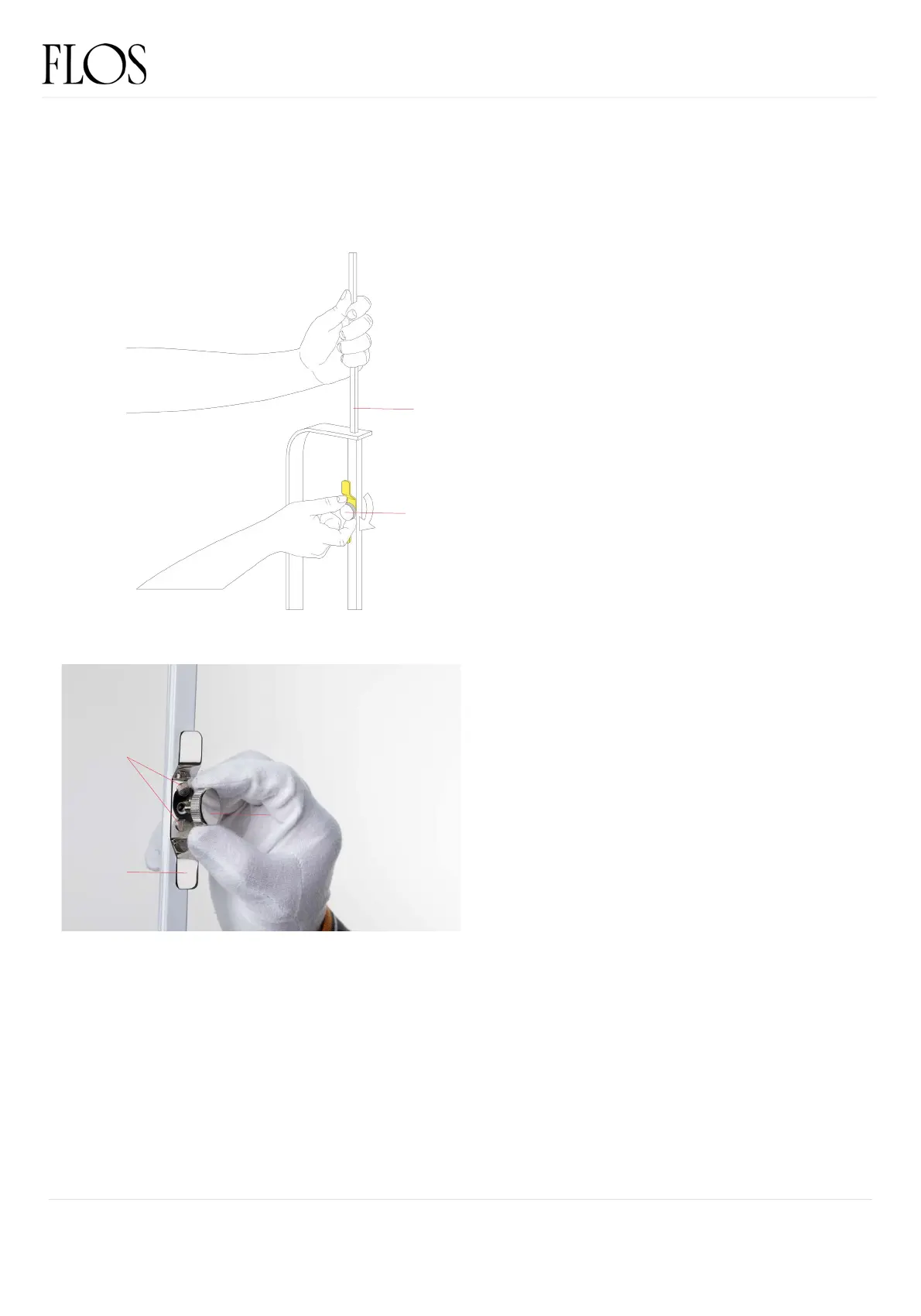

It is necessary to hold the rod (B) and unfasten the knob (A).
Unfasten the 2 screws (C) and free the broken cable winder support
(D).
Assemble now the new spare-part:
Position the cable winder support (D) on the lamp base (E), ensuring
that the holes present on the winder support (D) correspond with the
holes present on the lamp base (E).
Tighten slightly the knob (A) without fastening it.
RF06730
CABLE WINDER SUPPORT
REV. 2
DATE 25/11/2021
TOIO F7600035
A
C
D
A
B
Fig.1
Fig.2
