052-03

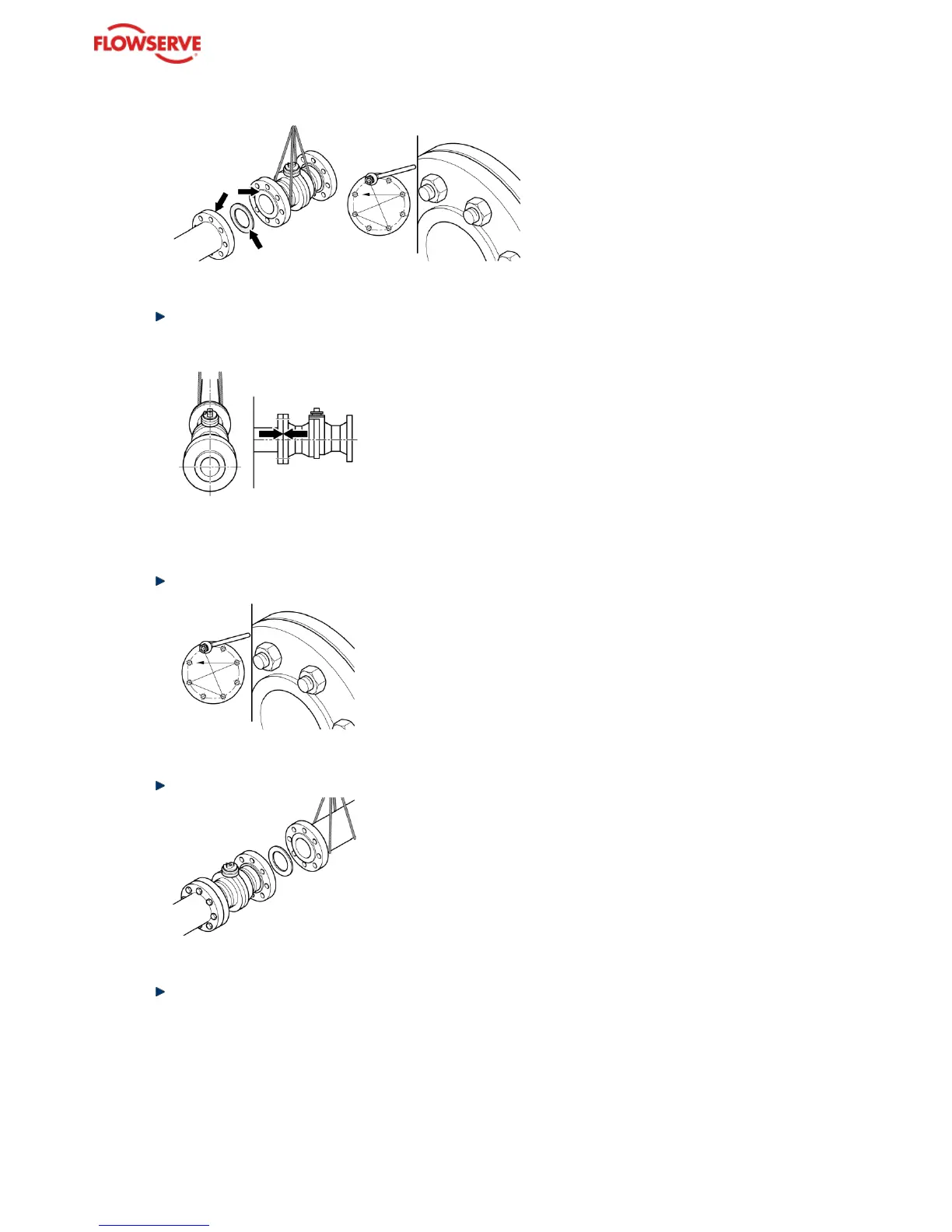

Assembling the first flange:
– Fix the ball valve to the connection with some bolts and position the seal.
– Ensure the correct position of the ball valve and seal (052-04).
052-04
Tighten the bolts crosswise (052-05).
052-05
Assembling the second flange: Procedure as for the first flange (052-06).
052-06
Check tightness after completed assembly works.
