5. DESIGN OVERVIEW
5.1 Description
The Flowserve NX seal cooler is a shell and tube system used with single or dual
mechanical seals. It utilizes a counter flow pattern to enhance cooling efficiencies.
The objective of the seal cooler is to lower the temperature of process or barrier fluid
passing through the coil while cooling water passes through the case. It is designed
for installations close to the seal where space is limited.

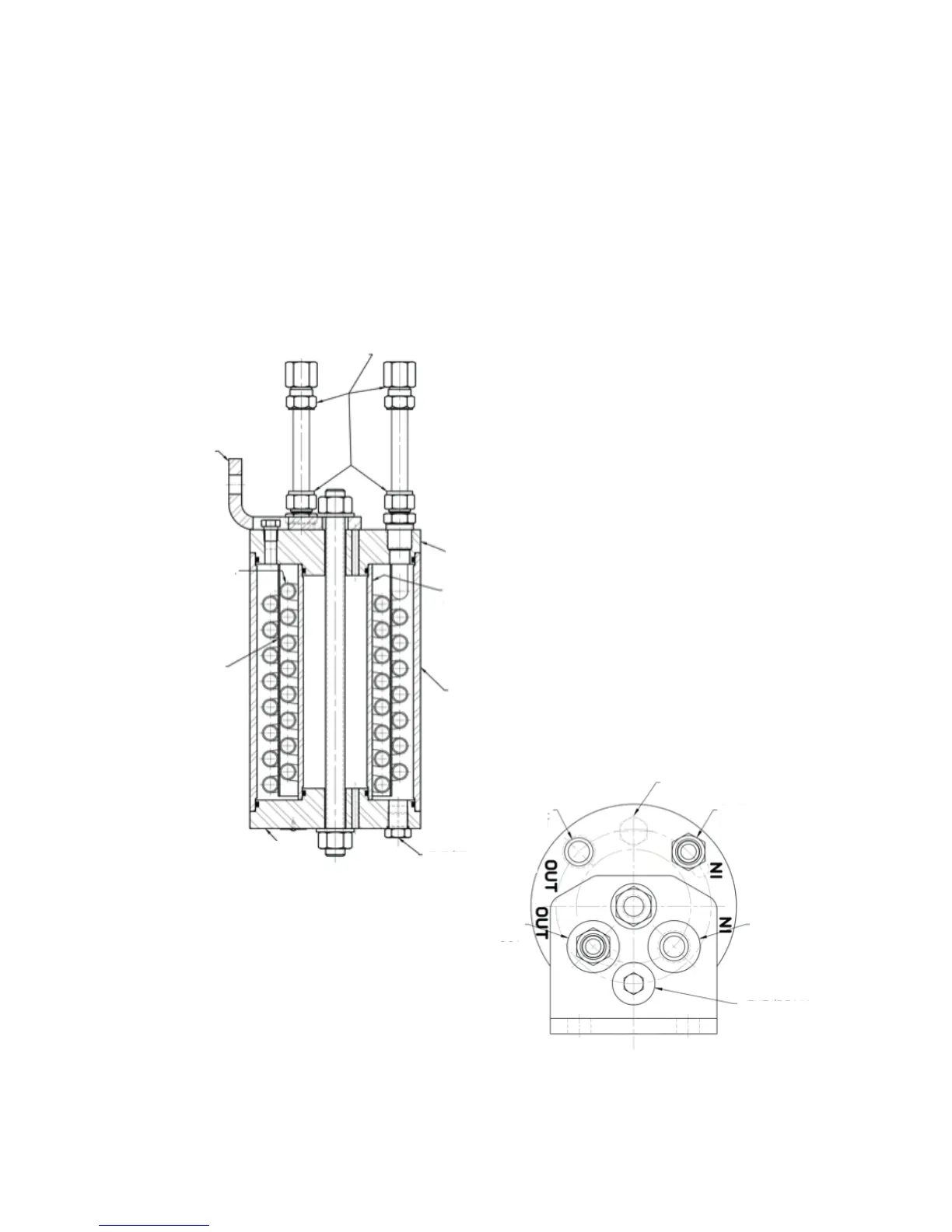

Figure 1: Vertical Cross Sectional View
BODY
(OUTER CASING)
Vent/Drain
tube
in
Shell
In
Vent/Drain
Tube
Out
Fittings
Mounting
Plate
Coil
Coil
Separator
Body
(Inner Casing)
End Plate
(Top)
End Plate
(Bottom)
Body
(Outer Casing)
Vent/Drain
Figure 2: Top View
Shell
Out
Note: The images of parts shown in these instructions may differ visually from the
actual parts due to manufacturing processes that do not affect the part function or
quality.
