TYPHOON 3 OPERATION GUIDE

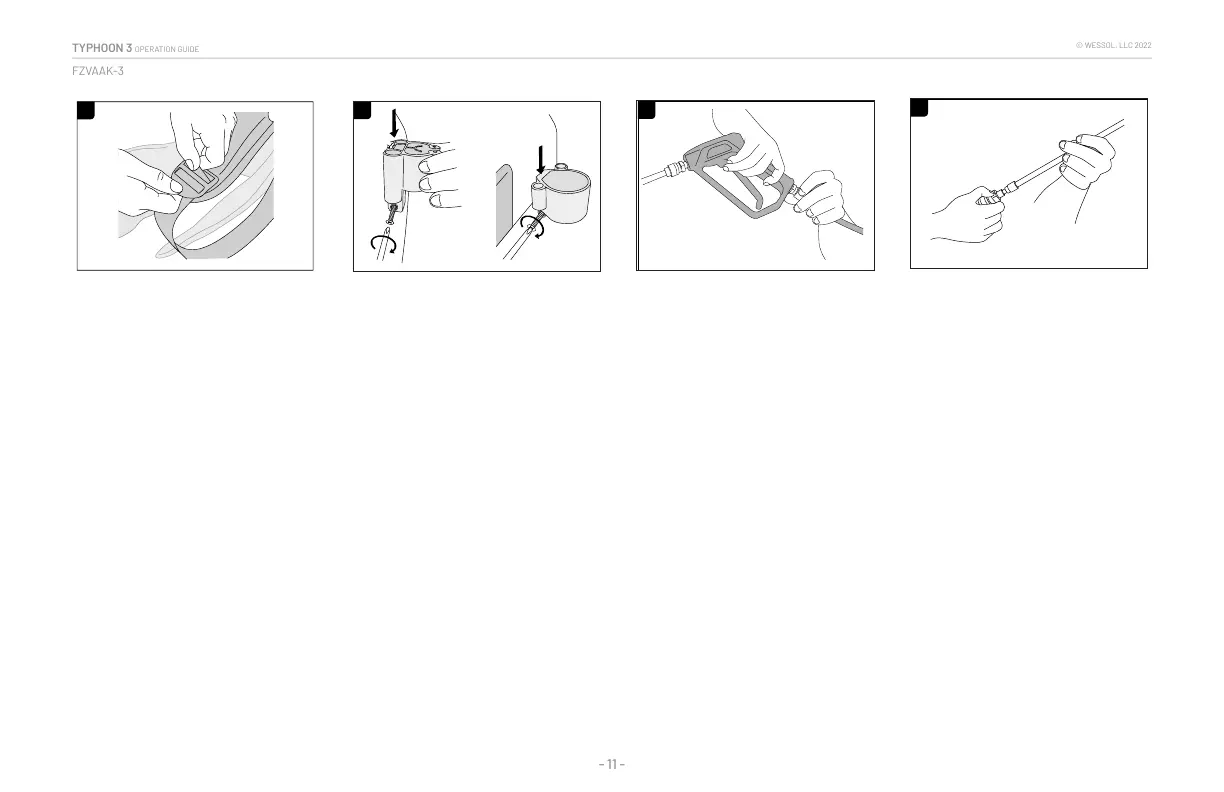

If the shoulder straps
arrive detached, attach the
bottom to the adjustable
buckle using the same
method as before.
Slide the top wand holster
onto protruding holster
mount on the sprayer tank.
Insert a nut on one side of the
hexagonal slot on the bottom
of the holster and screw
the bolt through the other
side using a Phillip’s head
screwdriver until the bolt
fastens into the nut. Repeat
for the bottom holster/slot.
A B
Take the spray gun (10) and
attach it to the threaded
tting on the end of the hose
(12). Tighten the tting to
ensure the gasket properly
seals the connection.
If spraying with the
stainless steel spray wand
(9), pull back on the collar
of the quick-connect tting
on the spray gun and and
insert the male end of the
spray wand. Push the collar
of the quick-connect back
into its original position
to secure the spray
wand inside .
