TYPHOON 3 OPERATION GUIDE
FZVAAK-3
© WESSOL, LLC 2022
- 9 -
1 FZRAMZ 4-Gallon Tank
2-1
FZRAEH
Tank Lid
Handle Cover
2-2 Tank Lid
2-3 Screw
2-4 Pressure Seal
2-5 FZRACK Tank Lid Gasket
3 FZRABW Tank Strainer
4
FZRAOH
Front Cover
Plate Assembly
Front Cover Plate
5 U-Type Seal
6 Sealing Strip
7-1 Pressure Dial
7-2 Spring
7-3 Slider
8 5 Speed Ring
9-1 Switch
9-2 Long Handle
9-3 Housing
10 Screw
11
FZRAEG
Battery Door
Assembly
Battery Door
12 Door Pivot
13 Door Spring
14 Door Pivot Clamp
15 Screw
16 FZRAOB
High-Pressure
Diaphragm
Pump
Pump
17 Pump Screw
18-1
FZRAGK
Pump Inlet Filter
Inlet Connector
18-2 Inlet Tube
18-3 Inlet Pickup Housing
18-4 Inlet Screen
18-5 FZRACL Inlet Gasket
19 Inlet Elbow Fitting
20 Hose Clamp American
21 Hose Clamp German
22 Outlet Tube
23 Outlet Hose and Fitting
24 M18xl. 5 Nut
25 FZRAFJ Circuit Board
26 FZAAEM 18V/5.2Ah TRI-ZONE™ Li-Ion
Battery Pack
27 Battery Holster
28 Screw
29 Nut
30 FZRANK Lower Wand Holster
31-1
FZRANL
Top Wand
Holster
Upper Holster
31-2 Roller
31-3 Pin
32 M5*11 Screw
1
2-3
2-1
2-2
2-4
2-5
3
4
6
5
7-3
7-1
7-2
8
9-3
9-2
9-1
11
10
15
12
13
14
17
18
20
19
18-5
18-1
18-2
18-3
18-4
21
22
23
24
25
28
29
30
26
27
10
28
29
31-3
31-2
31-1
32
1 FZRAME Tank
2-1 Handle Cover
2-2 Lid
2-3 Screw
2-4 One Way Seal
2-5 FZRACK Tank Lid Gasket
3 FZRABW Tank Lid Gasket
4 FZRANA Front Cover
5 U-Type Seal
6 Sealing Strip
7-1 Knob
7-2 Spring
7-3 Slider
8 5 Speed Ring
9-1 Switch
9-2 Long Handle
9-3 Housing
10 Screw
11 Battery Door
12 Door Pivot
13 Door Spring
14 Door Pivot Clamp
15 Screw
16 Pump
17 Screw
18-1 Inlet Connector
18-2 Inlet Tube
18-3 Inlet Pickup Housing
18-4 Inlet Screen
18-5 Inlet Gasket
19 Inlet Elbow Fitting
20 Hose Clamp American
21 Hose Clamp German
22 Outlet Tube
23 Outlet Hose and Fitting
24 M18xl. 5 Nut
25 FXRAFJ Circuit Board
26 FZAAFM Battery Park
27 Battery Holster
28 Screw
29 Nut
30 FZRANK Lower Wand Holster
31-1 FZRANL Upper Holster
31-2 Roller
31-3 Pin
32 M5*11 Screw

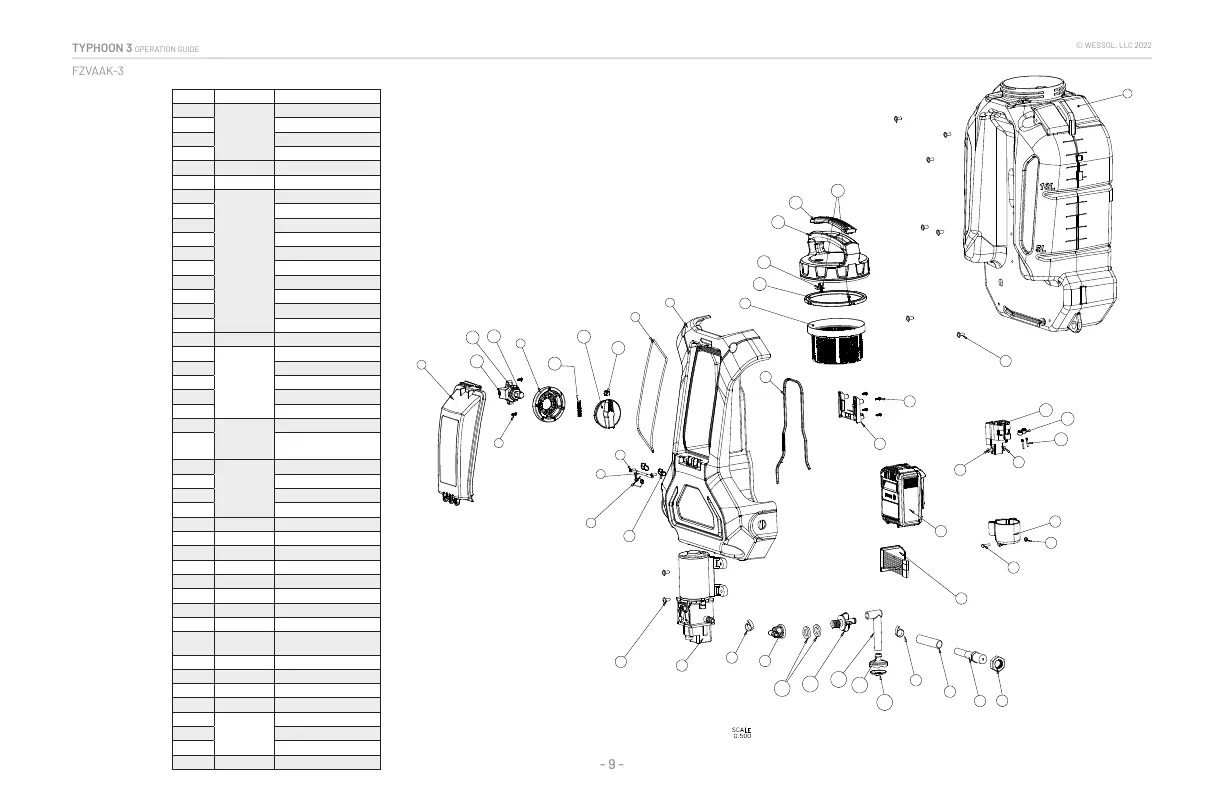

SPRAYER DIAGRAM
& Replacement Parts
