SPYDR
USER MANUAL
ASSEMBLY & MOUNTING INSTRUCTIONS
6
1
2
3
4
5
Unbox hardware and place on flush, stable surface. Take caution
when handling SPYDR light bars. Ensure the LED array does not come
in contact with sharp objects or force that may damage the diodes.

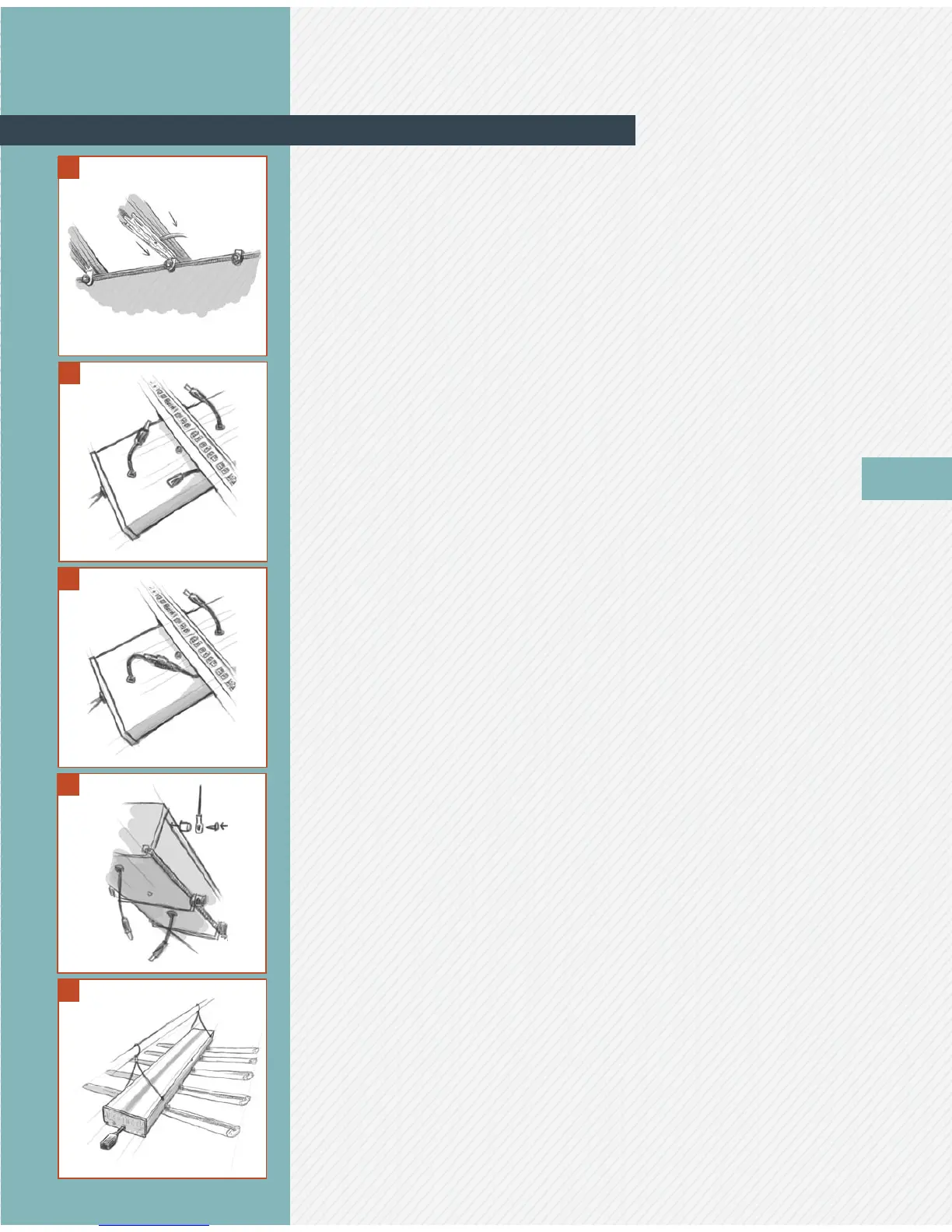

1 ......... Lay the console on a flat surface with the c-brackets facing up.
Starting from one end of the console, attach light bar to the
console by gliding slider bracket onto c-bracket. Ensure
quick-release mechanism on slider bracket is positioned
according to diagram.
2........ Clasp the slider bracket into place.
3 ........ Attach the female connector to the corresponding male DC
connector. Repeat steps 1-3 for the remaining light bars.
Carefully turn the console over once all of the light bars are
securely fastened. You may need a helping hand for this
step. Make sure the surface is clear of objects which may
damage LEDs.
4........ Fasten the gripple wire hanger to the console with provided
self-tapping screws and nylon spacers. Repeat for both sides,
ensure the mounting position is equal distance from ends to
maintain balanced system.
5........ Hang the fixture in the desired location and adjust the
mounting height to six inches from canopy. Once the fixture is
in place, plug the AC cable into fixture and wall outlet. Please
make sure no one is looking directly at LEDs when power is
connected.
For detailed instructions for assembling and mounting SPYDR,
please see video tutorials at www.fluence.science/support/.
How to apply your vinyl-cut Fluence sticker:
1 ......... Clean and dry the surface where the sticker will be applied.
Air and surface temperature should be between 40° to 90° F.
2........ Remove backing sheet to expose adhesive and apply sticker
to desired surface.
3 ........ Starting from the center and working outward, squeegee
pre-masked surface with a credit card to remove air bubbles.
4........ Allow adhesive to bond approximately 15 minutes.
5........ Remove pre-mask from sticker at a 45° angle, keeping it as
close to the sticker as possible. If lettering is coming up with
pre-mask, re-squeegee before attempting to remove.
Last, and most important, please recycle all packaging
material. Future generations will thank you.
