1-7. MECHANICAL
SPECI
FICATIONS
OUTPUT CONNECTORS
One UG931/U
front
and rear
(one mating
connector
supplied),
METER
3100-0-3100
vdc
(±3%).
WEIGHT
Approximately
30
pounds.
1-8.
ENVIRONMENTAL
SPECIFICATIONS
OPERATING
TEMPERATURE
0°C
to 50° C.
ALTITUDE
OF
OPERATION
Sea
level to
10,000 feet.
STORAGE
OR SHIPPING
ALTITUDE
Sea
level to
50,
000 feet.
VIBRATION
Meets MIL-T-945A.
SHOCK
Meets
MI
L
-
E
-
4
97
0
A
(20
g's, 11
milliseconds
in
three
principal
axes).
TEMPERATURE
COEFFICIENT
OF
OUTPUT
Less than
20
ppm
per °C
from
+10° C to
+40° C.
STORAGE TEMPERATURE
-20°
C
to
70°
C.
HUMIDITY
0 to
80%.
1-9.
OUTLINE
DRAWING
1-10.
Figure
1-1
is an outline
drawing
showing
all
dimensions
necessary
for
mounting
and
installation.

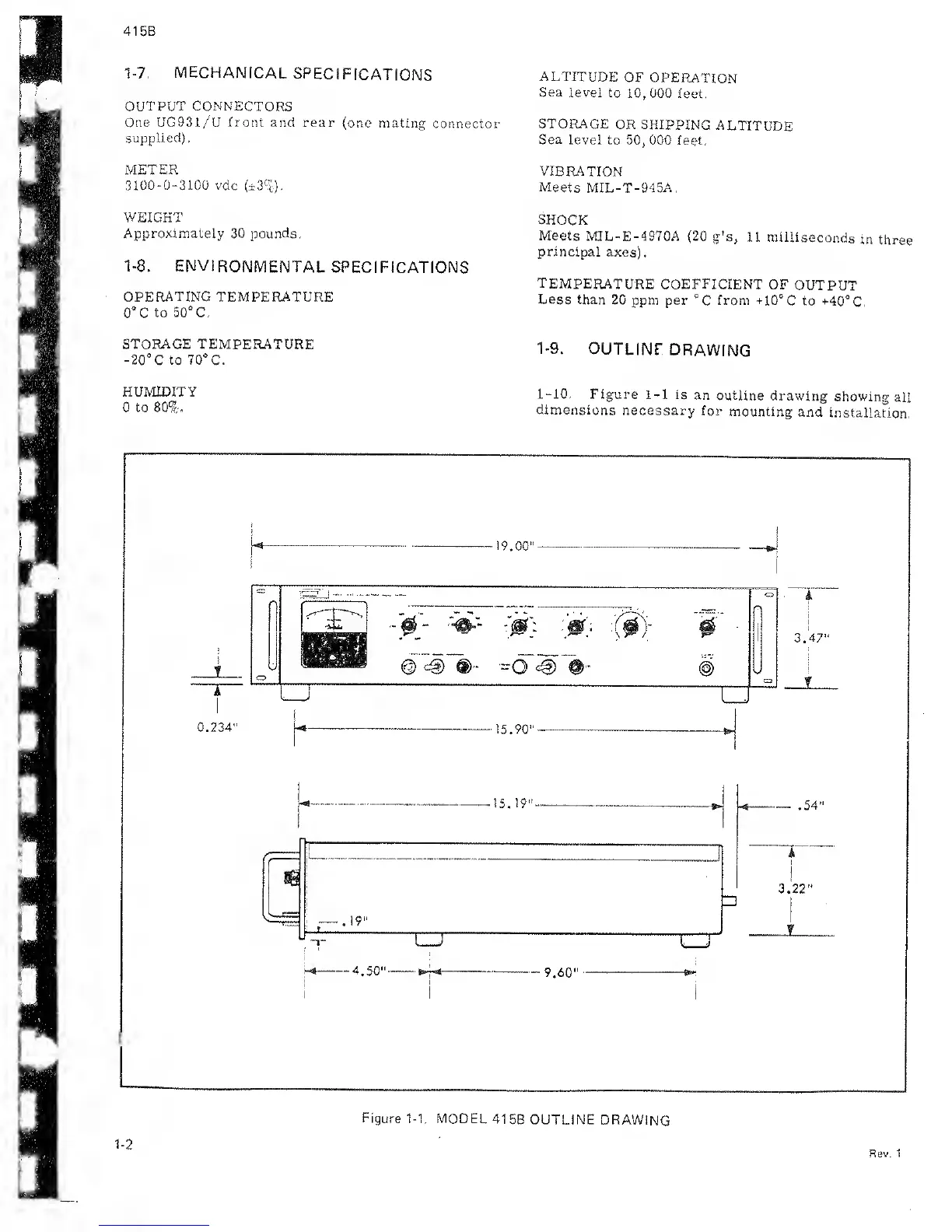

Figure
1-1. MODEL
415B OUTLINE
DRAWING
