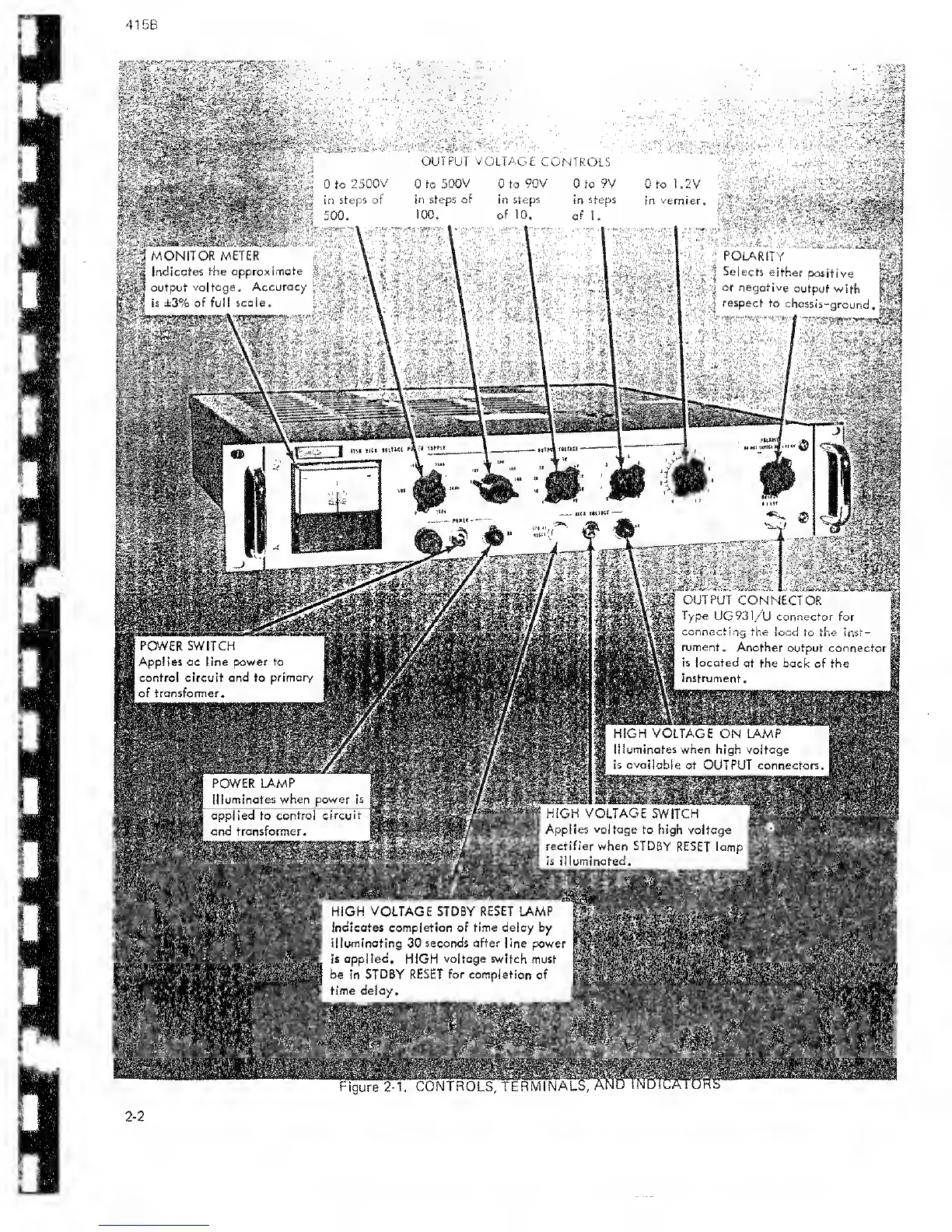

MVJlNIItJK MciCK
Indicates
the approx
imat
output
voltage. Accura
is ±3% of
full scale.
POWER SWITCH
Applies ac line power
to
control circuit and to
primary
of transformer.
rument.
Another
output connector
is located
at the back of
the
instrument.
HIGH VOLTAGE
ON
LAMP
Illuminates when high voltage
is
available
at
OUTPUT
connectors
POWER LAMP
Illuminates
when power is
applied to control
circuit
and transformer.
HIGH
VOLTAGE
SWITCH
Applies voltage
to high voltage
rectifier when STDBY
RESET
lamp
is illuminated.
HIGH
VOLTAGE
STDBY
RESET LAMP
indicates completion of time delay by
illuminating
30
seconds after line
power
is
applied.
HIGH
voltage switch
must
be in STDBY
RESET for completion
of
time delay.
CONTROLS, TERMINAL:
