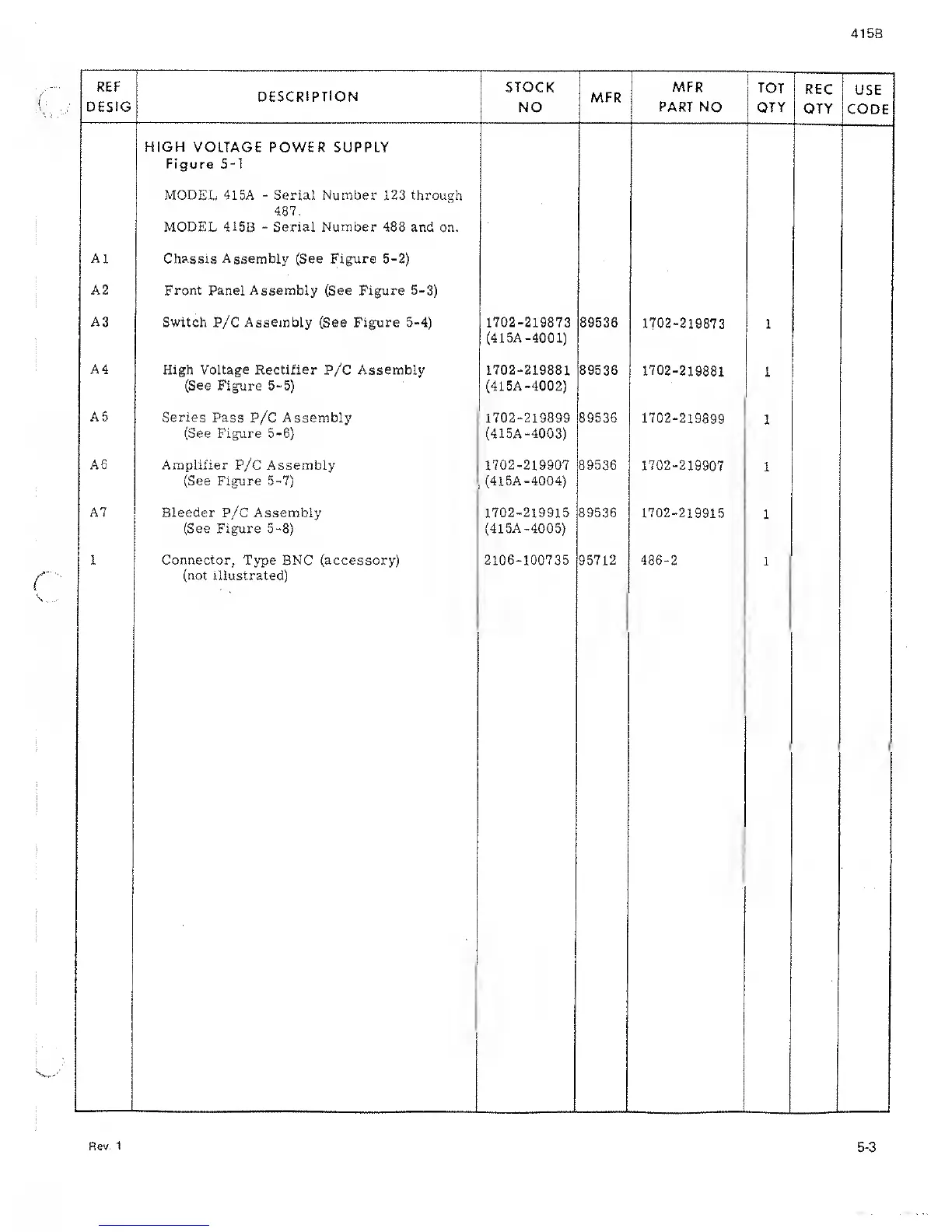

Fluke 415B - Page 59

5B
DESCRIPTION
STOCK
NO
MER
PART
NO
TOT
REC
USE
OTY
QTY
CODE
HIGH VOLTAGE
POWER SUPPLY
Figure
5-1
MODEL
41 5A
-
Serial Number 123
through
487.
MODEL
415B
-
Serial Number 488 and on.
Chassis Assembly (See Figure
5-2)
Front Panel Assembly
(See Figure
5-3)
Switch
P/C
Assembly
(See
Figure 5-4)
High Voltage Rectifier
P/C
Assembly
(See Figure 5-5)
Series
Pass
P/C
Assembly
(See Figure
5-6)
Amplifier
P/C Assembly
(See Figure
5-7)
Bleeder
P/C Assembly
(See Figure 5-8)
Connector,
Type BNC (accessory)
(not illustrated)
1702-219873
89536
1702-219873
(415A-4001)
1702-219881
89536 1702-219881
(415A-4002)
1702-219899
89536 1702-219899
(415A-4003)
1702-219907
89536 1702-219907
(415A-4004)
1702-219915
89536 1702-219915
(415A-4005)
2106-100735 95712
486-2
5-3
