A2
FRONT
PANEL ASSEMBLY
Figure
5-3
DS1 Lamp, neon, NE51, red lens
3903-100206 91802
1040A1
2
DS2 Lamp,
neon,
NE51, white
lens
3903-100214
91802
1040A4 1
DS3 Lamp, neon, NE51, red lens
3903-100206
91802
1040A1 REF
FI Fuse, slow blow,
3
amp, 25Gv
(for ll5v operation)
(not
illustrated)
5101-109280
71400
Type MDA 1
1
FI Fuse, slow blow, 1-1/2
amp, 250v
(for 230v
operation)
(not illustrated)
5101-109231 71400
Type
MDX 1 1
J1 Connector, female, Type
BNC
2106-162982
95712
3651-2
REF
Ml Meter,
500-0-500
ua, 50Q,
2901-221721
89536
2901-221721
1
SI Switch,
POWER, toggle, dpst 5106-114835 04009
81024-GB
1
S2
Switch,
HIGH VOLTAGE, toggle, dpdt
5106-157883
73559 2GL50-63
1
XF1 Holder, fuse 2102-100107 71400
HKP
1
11 Handle, chrome-plated
brass
2404-100412
05704 825 2
12
Knob,
bar
2405-170050
89536
2405-170050
6
13
Panel, front
1406-220095 89536 1406-220095
1
(
6
places
)

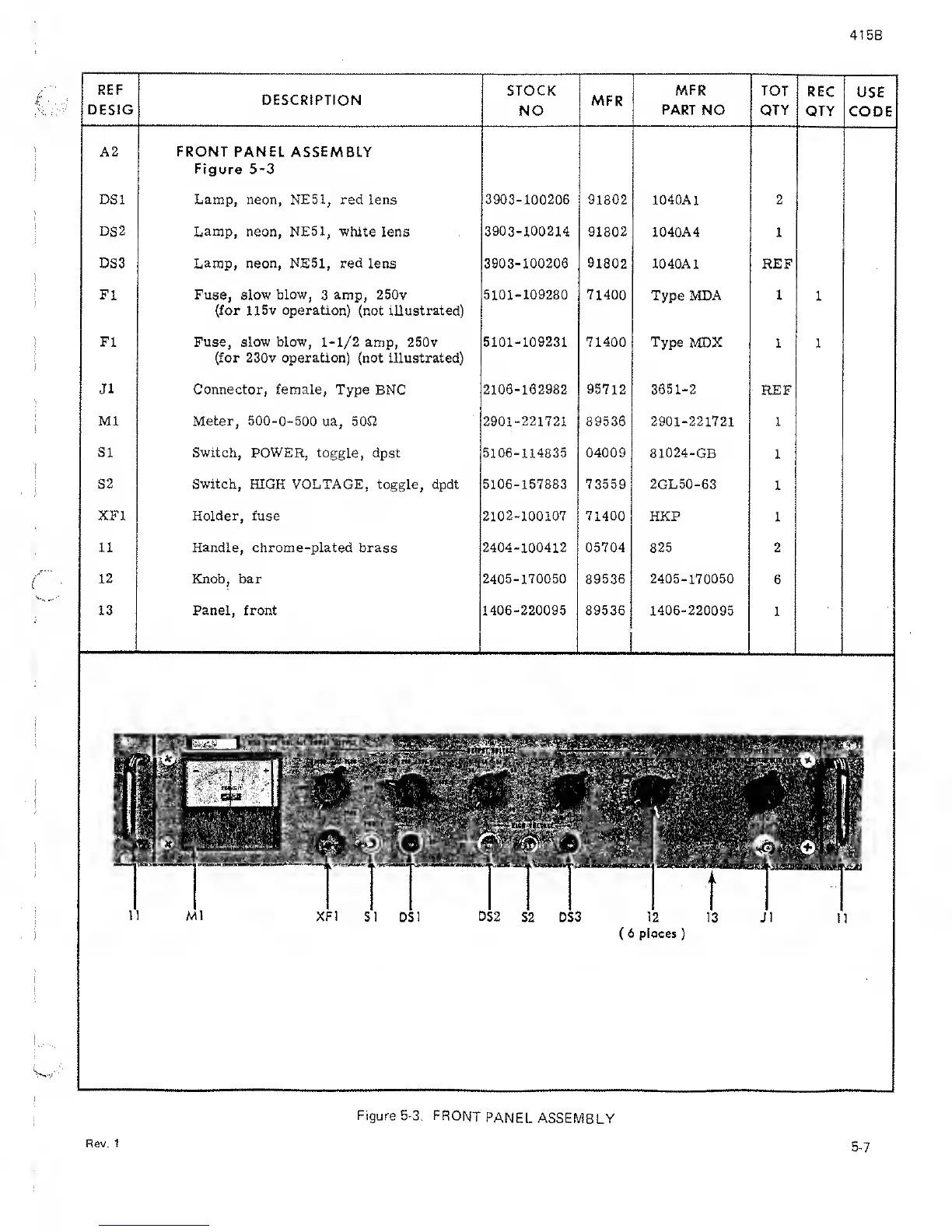

Figure
5-3.
FRONT
PANEL
ASSEMBLY
Rev. 1
5-7
