Fluke 5220A - Page 113

List of Replaceable Parts
Service Centers
5
5-41
Table 5-15. A14 Extender PCB Assembly
Reference
Designator Description
Fluke
Part No.
Total
Quantity
H1 Screw, Machine, SEMS, PH, P, Steel, 6-32, 0.250 178533 4
H2 Rivet, S-Tub, Oval, Steel, 0.118 x 0.218 103606 2
J1 Connector, PCB Edge, REC, 0.150 CTR, 40 Position 422550 1
J2 Connector, ACC, PCB Edge, Polarizing Insert 424572 1
MP1 Bracket, Right Angle, Tapped, Brass, 6-32 404525 4
ajs34f.wmf

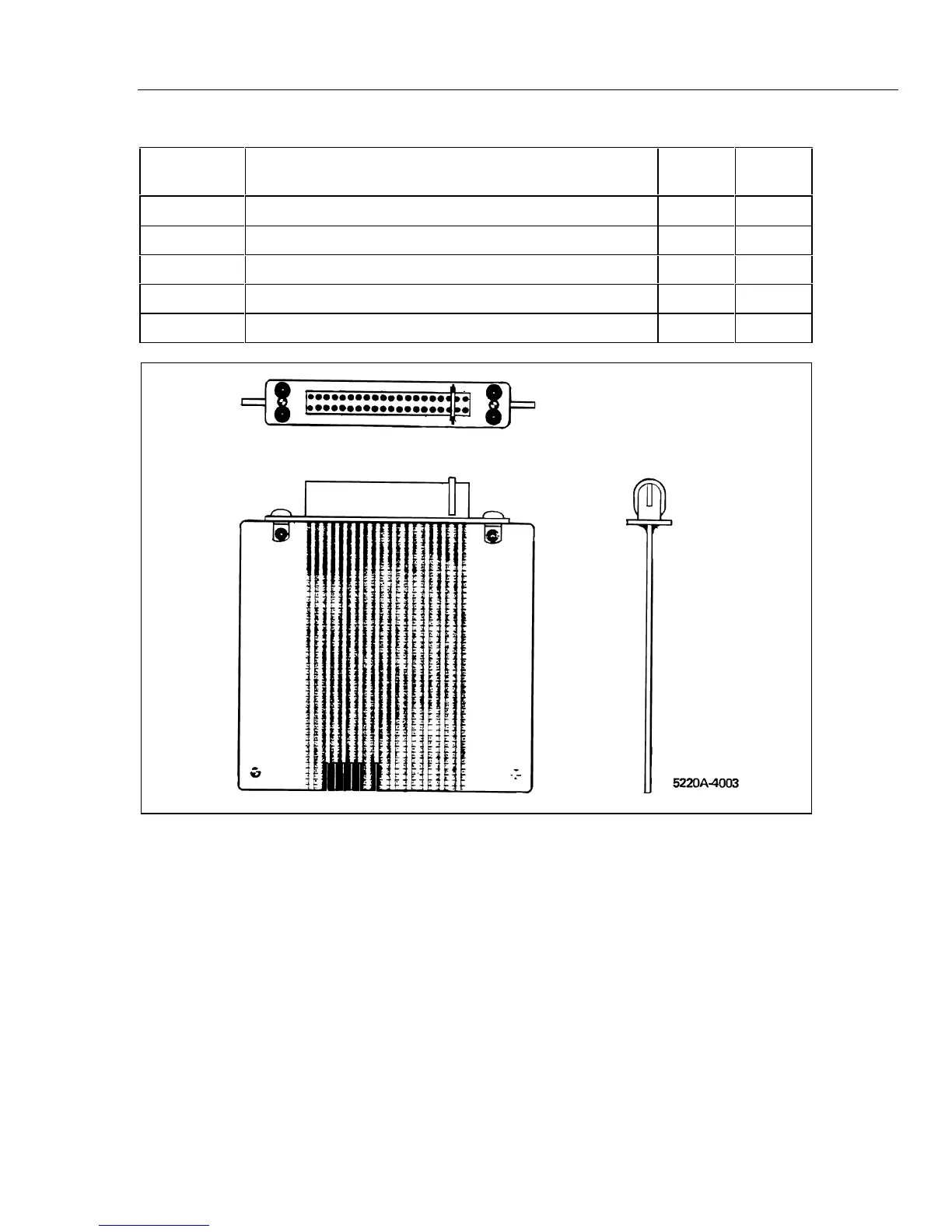

Figure 5-15. A14 Extender PCB Assembly
