Local: CSPCL3
172 L22
Remote:
"SP72"
Note:
1. Unsigned
integer is indicated with int.
Related
Operations:
Fixed
Range
Relative
Function
2-33.

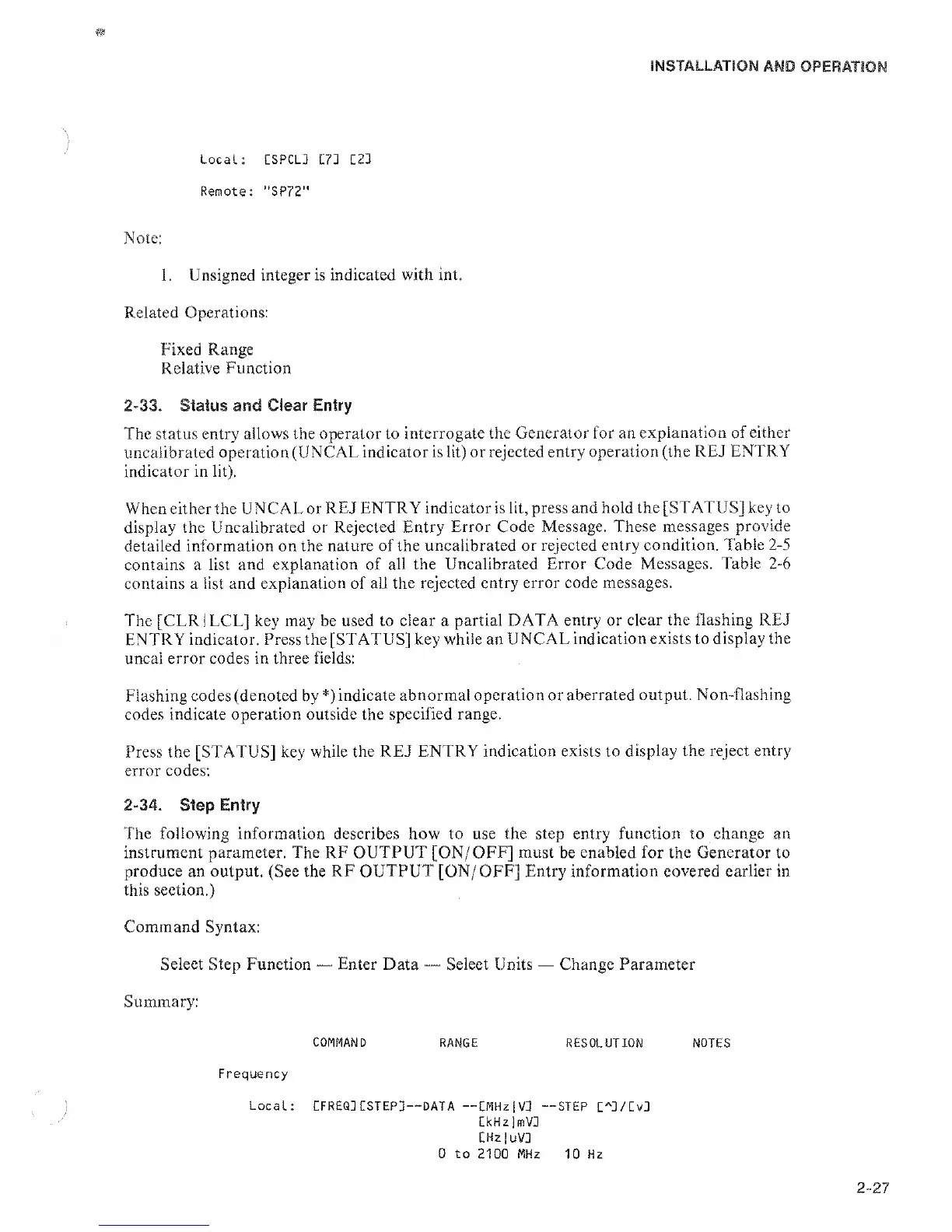

Status and Clear Entry
The status
entry allows the operator to
interrogate the Generator for an
explanation of either
uncalibrated operation
(UNCAL indicator is lit) or rejected
entry operation (the REJ
ENTRY
indicator in lit).
When either the UNCAL or
REJ ENTRY indicator is lit, press
and hold the [STATUS] k.ey to
display the Uncalibrated or Rejected Entry
Error Code Message. These
messages provide
detailed information on
the nature of the uncalibrated or
rejected entry condition.
Table
2-5
contains a list and explanation of
all the Uncalibraled
Error
Code
Messages. Table
2-6
contains a list and explanation of all the rejected
entry error code messages.
The [CLR I LCL] key may be used to
clear
a
partial DATA entry or
clear the flashing REJ
ENTRY indicator. Press the [STATUS] key while an
UNCAL indication exists to
display the
uncal error codes in three fields:
Flashing codes (denoted by *)
indicate abnormal
operation
or
aberrated output. Non-flashing
codes indicate operation outside the
specified range.
Press the [STATUS] key
while the REJ ENTRY indication
exists
to
display the reject entry
error codes;
The following information describes how to use the step entry function
to
change an
instrument parameter. The RF OUTPUT [ON/ OFF] must be enabled for the Generator to
produce an
output. (See the
RF OUTPUT [ON/ OFF] Entry information covered earlier in
this section.)
Command
Syntax:
Select Step Function
—
Enter Data
—
Select Units
—
Change Parameter
Summary:
COMMAND
RANGE RESOLUTION NOTES
Frequency
CFREQ3i;STEP3--DATA
—
CMHz|V3 —STEP
C'^3/:v3
CkHzlmV3
CHz|uV3
0
to
2100 MHz
10
Hz
2
Local
:
