How to Use the Adapters
Figures 2 and 3 show typical connections to a permanent link and a channel. Be sure to
select the test standard that is applicable to the link under test. For more information on
how to do tests, see the documentation supplied with your tester.
Note
To disconnect the permanent link adapter’s plug from a patch panel, pull on
the plug’s case as shown in Figure 1. It is not necessary to press on the latch to
disconnect the plug.
GPU97.EPS

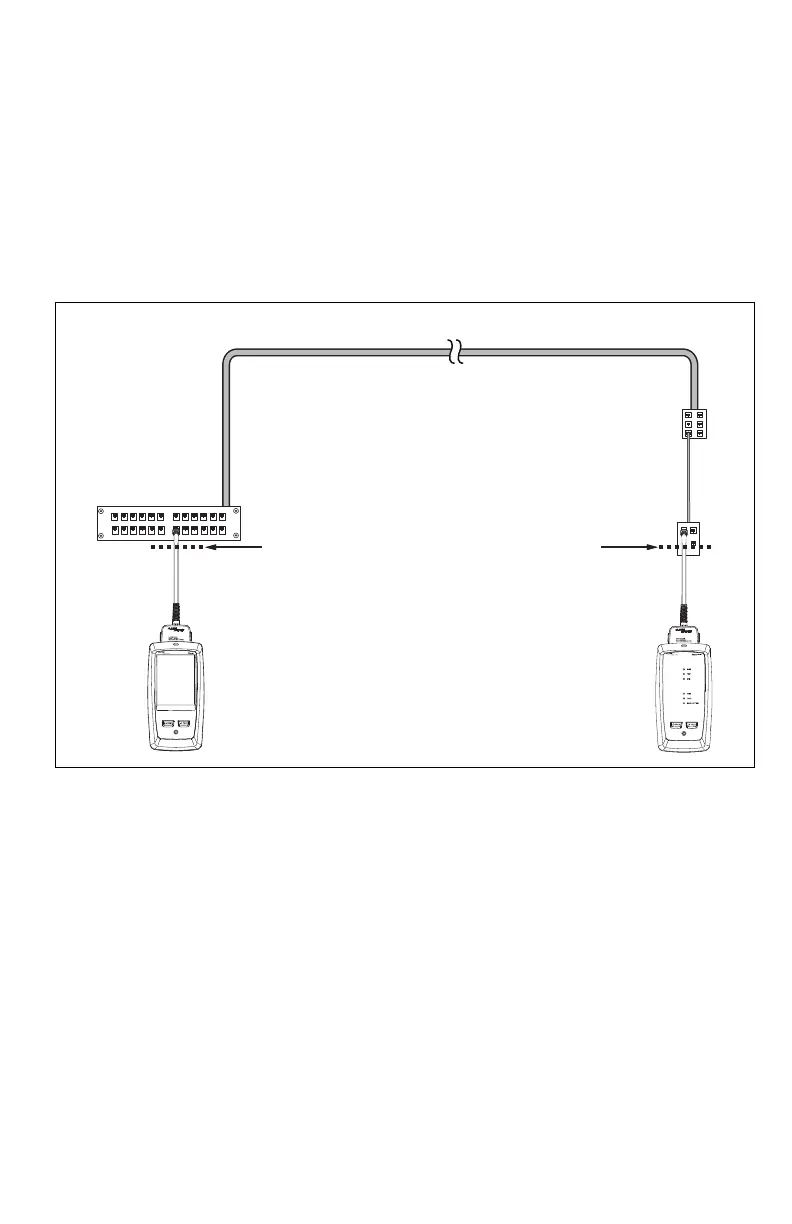

Figure 2. Permanent Link Connections
End
permanent
link
Remote with permanent
link adapter
Optional
consolidation
point
Wall
outlet
Tester with permanent
link adapter
Start
permanent
link
Patch panel
Horizontal cabling
