flying eagle Fys-13 - Securing Assembly and Attaching Wheels

4
2.2. Fasten the bolt 1 with washer 2,gasket 3 and nut 4.See figure 2.
2.3. Pull the discharge hopper out of the parts box and align the holes 1,2.
2.4. Attach front foot 5 , to the sideboard of the parts box and align the mounting
holes with holes 1,2.
2.5. Put the pipe spacer that was removed in step1 back in place. Insert the bolts and
secure them tightly with gasket s and nuts.

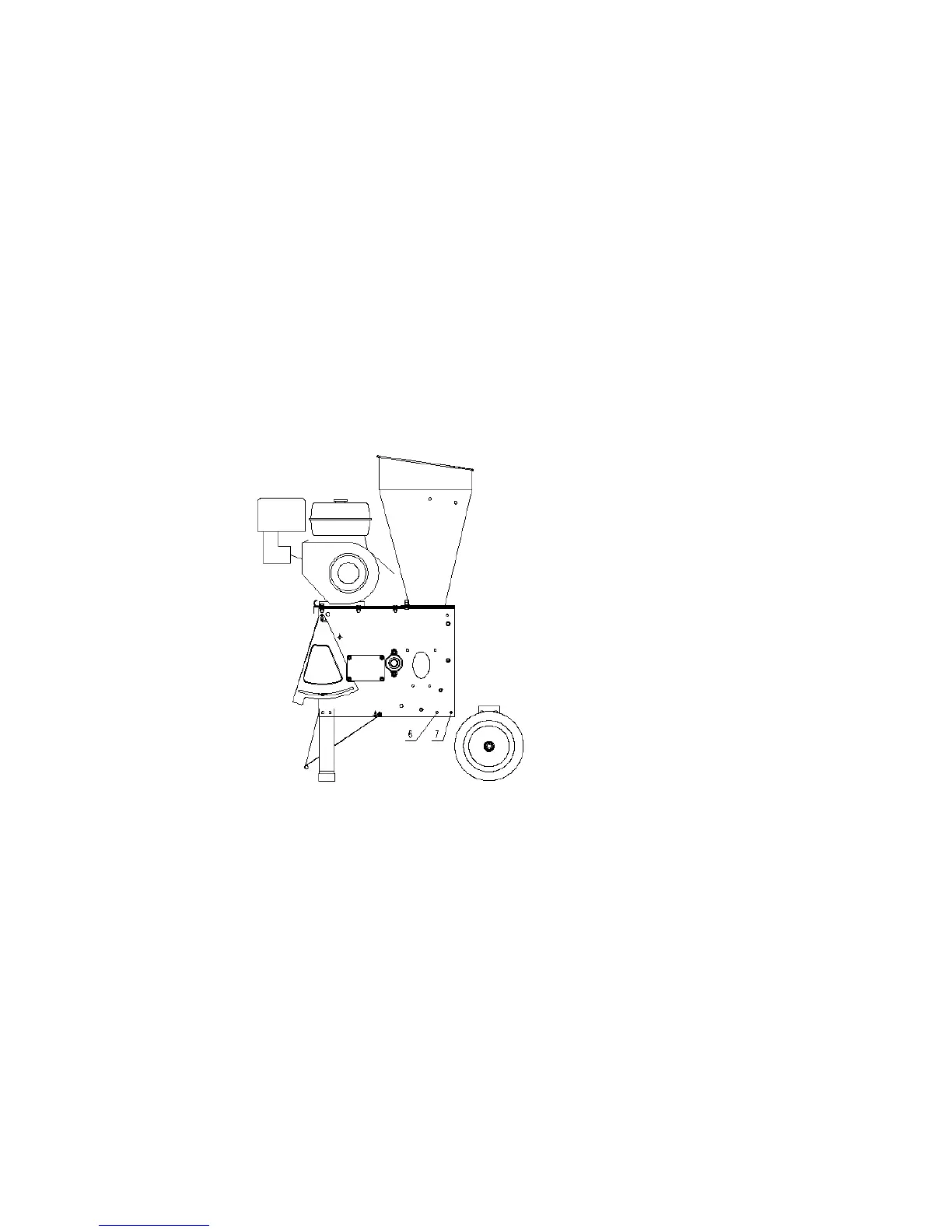

3. Attach axle brackets, axle and tires. See picture 3.
figure 3
3.1
Remove the wood shelf.
3.2 Disassemble the bolt 7 and pipe spacer.
3.3
Put the rear axle brackets in place and align the mounting hole with holes 6.7.
3.4
Insert M8*20 bolt in hole 6 from outside to inside and secure it slightly with
gasket and nut.
3.5
Reassemble the pipe spacer and the long bolt 7and secure it tightly with gasket
