This document provides a user manual for the FLYLINKTECH Battery Jump Starter, model CF100, with a capacity of 22000 mAh.

Function Description

The FLYLINKTECH Battery Jump Starter is a versatile device designed primarily for jump-starting 12V vehicles (all gasoline cars and diesel cars under 7.0L). It also functions as a portable power bank for charging electronic devices.

Key functions include:

Jump Starting: Provides power to a dead car battery to start the vehicle.
Power Bank: Features two USB output ports (Output 1 QC 3.0 and Output 2 QC 3.0) for charging mobile phones, tablets, cameras, and other USB-powered devices.
Flashlight: Equipped with a flashlight function offering Normal, SOS, and Strobe modes.
Charging Indicator Lights: Four LED lights indicate the charging progress (25%, 50%, 75%, 100%) and remaining battery capacity.
Smart Clamp Protection: The included smart clamp provides various safety protections, including reverse connection, short-circuit, reverse charging, over-temperature, and low voltage protection.
Force Start Function: An optional function to bypass certain safety checks when the car battery voltage is too low, allowing for a forced start.

Important Technical Specifications

Model: CF100
Capacity: 22000 mAh
Micro Input: DC 5V / 2A Max
Type-C Input: 5V / 2A
Output 1 (QC 3.0): 5V/3A, 9V/2A, 12V/1.5A Max, USB 3.0
Output 2 (QC 3.0): 5V/3A, 9V/2A, 12V/1.5A Max, USB 3.0
Peak Current: 1800A (for 0.2s)
Dimensions (L * W * H): 183 x 88 x 36mm
Overload / Discharge Fuse: ≤ 13v ± 0.3v
Working Temperature: 65°C ± 5°C
Backflow Protection: ≥ (12.6v ± 0.3v)
Short Circuit Fuse Protection: Yes
Reverse Polarity Protection: Yes
Lithium Content: Equivalent of 2.4g of lithium
Watt Hours: 74 watt hours

Usage Features

Checking Capacity:

Press the ON/OFF button once to check the remaining capacity. The indicator lights will show 25%, 50%, 75%, or 100%.

Charging the Jump Starter:

At Home: Plug the USB cable into a computer or any USB 2A wall adapter (not included) and connect the micro USB cable to the jump starter.
In Car: Plug the USB car adapter (included) into a 12V socket and connect the micro USB cable to the jump starter.
Note: It is recommended to recharge the jump starter every 3-4 months to maintain efficiency and prolong battery life, even if unused.

Charging Electronic Devices:

Plug the original manufacturer's USB cable into Output 1 (QC 3.0), Output 2 (QC 3.0), or the Type-C port.
Connect the other end to your mobile phone or tablet.
Press the ON/OFF button once to begin charging. The power level indicator will show the battery level.

Using the Flashlight:

Long press the ON/OFF button to turn the flashlight on/off.
Short presses will cycle through Normal, SOS, and Strobe modes.

Jump Starting a Car:

Preparation: Ensure the vehicle is in park (or neutral for manual transmission) and the emergency brake is engaged. The jump starter should have at least 3-4 indicator lights illuminated (battery level above 50%).
Connect Smart Clamp to Jump Starter: Insert the smart clamp plug completely into the jump starting port. If green and red lights flash alternately, it's safe to proceed.
Connect Clamps to Car Battery:
- Connect the RED clamp to the positive terminal (+) of the car battery.
- Connect the BLACK clamp to the negative terminal (-) of the car battery.
- If green and red lights flash alternately, it's safe to proceed.
- Troubleshooting Red Light: If the red indicator light is solid, check for reverse connection or adjust clamps for maximum contact.
Start the Car: Start your car.
Force Start (Optional): If the car fails to start after 2 attempts (wait 30 seconds between attempts), ensure clamps are connected correctly, then press and hold the "Force Start Button" for 3 seconds. When the smart clamp indicator light is solid green, start the vehicle within 30 seconds.
Disconnect: Once the car is started, remove the battery clamp from the car battery and the jump starter within 30 seconds.

Smart Clamp Protection Indicators:

Red/Green LED Flash: Ready to work.
Green Light Always On: Work status.
Red Light Always On with Long Audio Alarm:
- Battery clamp reversely connected (check connection).
- Clamp short-circuited (check if clamps are touching or connected to the same metal piece).
Red Light Flashes with Short Audio Alarm: Reverse charging protection (car battery voltage > 12.6V, no jump starter needed).
Red Light Always On with Long Audio Alarm: Clamp temperature exceeds 65°C ± 5°C (remove clamp until red/green light flashes).
Red Light Always On with Short Audio Alarm: Jump starter voltage too low (replace or charge the jump starter).

Maintenance Features

General Maintenance:

Recharging: Recharge the jump starter every 3-4 months to maintain battery efficiency and prolong its service life, even if not used.
Cleaning: Ensure battery clamps are free from rust and dirt for optimal connection.
Storage: Store in a well-ventilated area. Do not store in locations where the temperature may exceed 104°F (40°C).
Ventilation: When charging the internal battery, ensure adequate ventilation and do not restrict airflow.

Safety Precautions (Important Warnings):

Always wear safety glasses and gloves when handling the battery.
Ensure the blue plug is securely fitted into the jump start socket.
Do not allow the product to become wet or immerse it in water.
Do not operate in explosive atmospheres.
Do not modify or disassemble the product. Servicing should be performed by a qualified repair person using identical replacement parts.
Avoid contact with battery leakage. If contact occurs, rinse immediately with clean water and seek medical attention.
Do not expose to fire or excessive temperatures above 130°C (266°F).
Do not drop, hit, or apply excessive force to the unit, as this can cause damage, loss of operation, electrical fire, or serious injury.
Do not allow the output clamps to touch each other.
This jump starter is for 12V vehicles only. Using it on non-12V vehicles can cause serious damage or injury.
Do not place the jump starter on the floor or at a height less than 18 inches (457mm) above the floor during use in a repair facility.

Battery Disposal:

The battery is self-contained and not user-replaceable.
Dispose of the battery properly when it no longer holds a charge.
For battery recycling information, call toll-free 800-822-8837.
For air travel safety information regarding batteries, refer to https://www.phmsa.dot.gov/safe-travel/batteries.

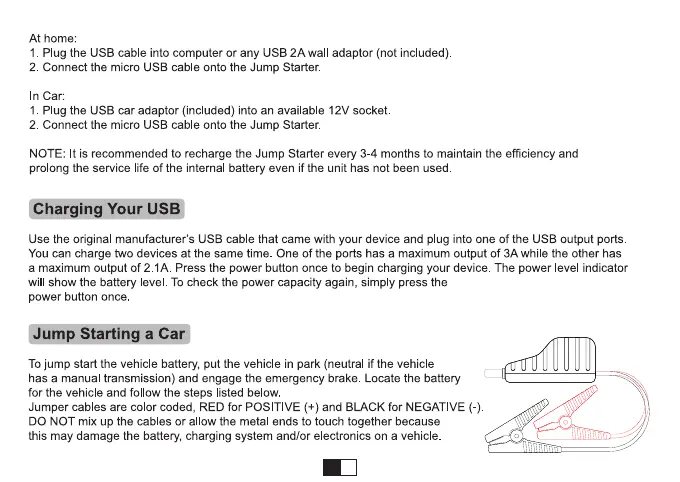

FLYLINKTECH CF100 - Charging Your USB; Jump Starting a Car
