3

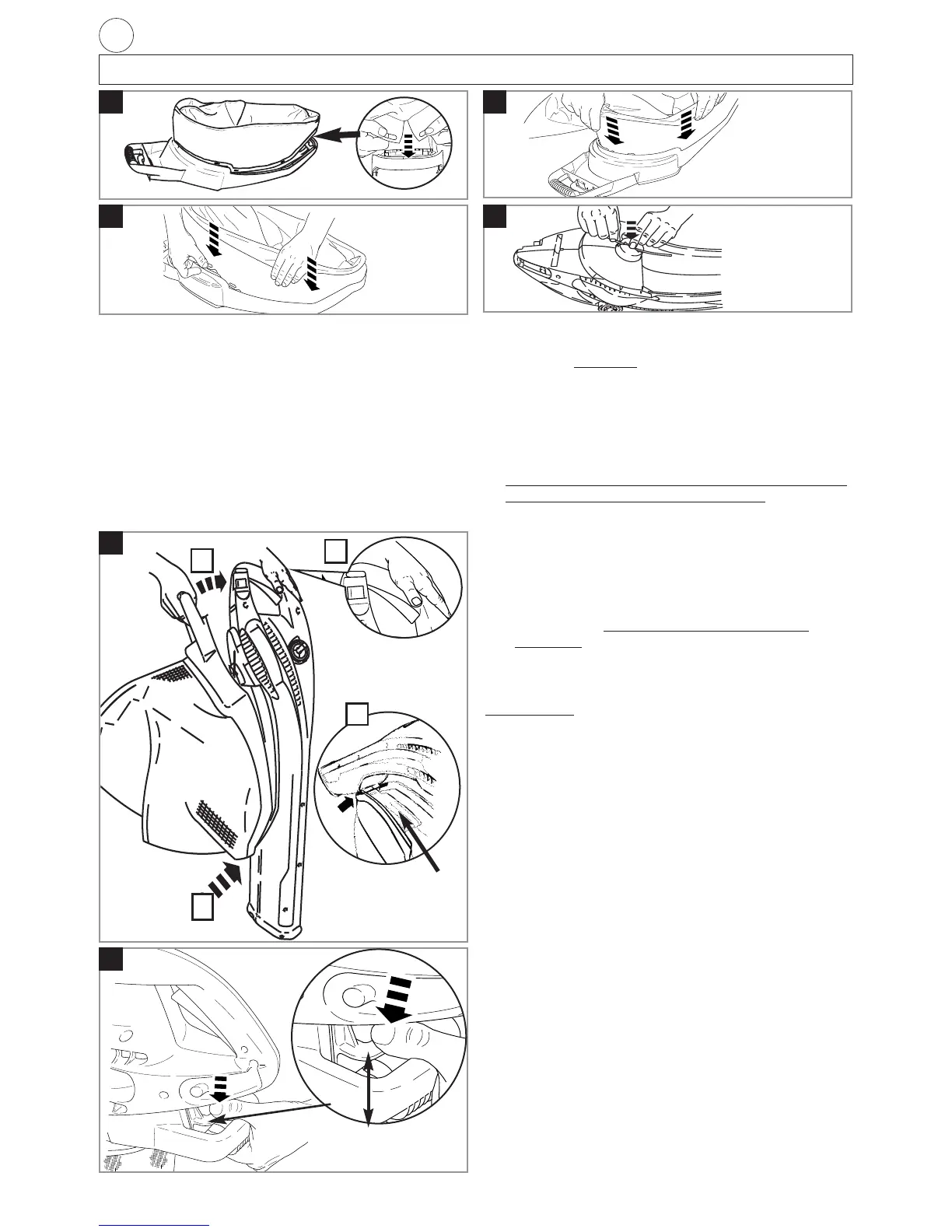

Assembly Instructions
To Fit Assembled Debris Bag To Product (E)
• Switch off and disconnect from the mains elec-
tricity supply BEFORE REMOVING OR RE
-
PLACING
the fully assembled debris bag.
• The cutting head and cutting line continue to ro-
tate after your Gardenvac has been switched off.
IMPORTANT
: Do not squeeze the trigger when fitting
the debris bag (E1)
1. Ensure debris fin is horizontal (E2) as illustrated
in fig E.
2. Locate bag frame into clip on the underside of
product. (E3).
3. Lift handle towards product until bag latch locates
and click into place. (E4)
To Re move Debris Bag From Product (F)
1. Gently press bag latch (F1) down. See fig F.
2. Lower handle of bag frame away from product.
3. Move bag frame forward.
1
4
3
2
debris fin
F
1
To Attach Debris Bag to Bag Frame
With bag frame on the ground:-
1. Fit first two holes on the plastic trim of the debris
bag to the first two location points on the front of
the bag frame (where debris fin is attached). (A)
2. Fit next hole on the plastic trim to next location
point on bag frame. (B)
3. ...until all holes on the plastic trim of the debris bag
are securely located to bag frame. (C)
• ENSURE THE DEBRIS BAG IS FITTED SE-
CURELY TO THE BAG FRAME.
To Fit the Cutting Line to the Cutting Head (D)
• Switch off and disconnect from the mains electric-
ity supply BEFO
RE removing or fitting the cutting
line.
•Handle the cutting line with care - sharp edges can
cause injury.
1. Place the cutting line into the slot in the cutting head
and click into place as illustrated in Figure D.
• Ensure the cutting line is correctly located.
• O
NLY
USE
CUTTING
LINE
SPECIFIED
FOR
THIS
PRODUCT
. S
EE
P
RODUCT
R
AT I NG
L
ABEL
FOR
MODEL
DETA I LS
D
A C
B
