Flymo Glider Compact 330 VCX - Assembly; To assemble the bumper and the lower handle; To assemble the middle handle

Assembly
Before you do assembly
WARNING!
• Risk of physical injury!
• Cut injury when the blade turns or
the product starts accidentally.
• Wait for the blade to stop, disconnect
the product from the mains and use
gloves before you do assembly.

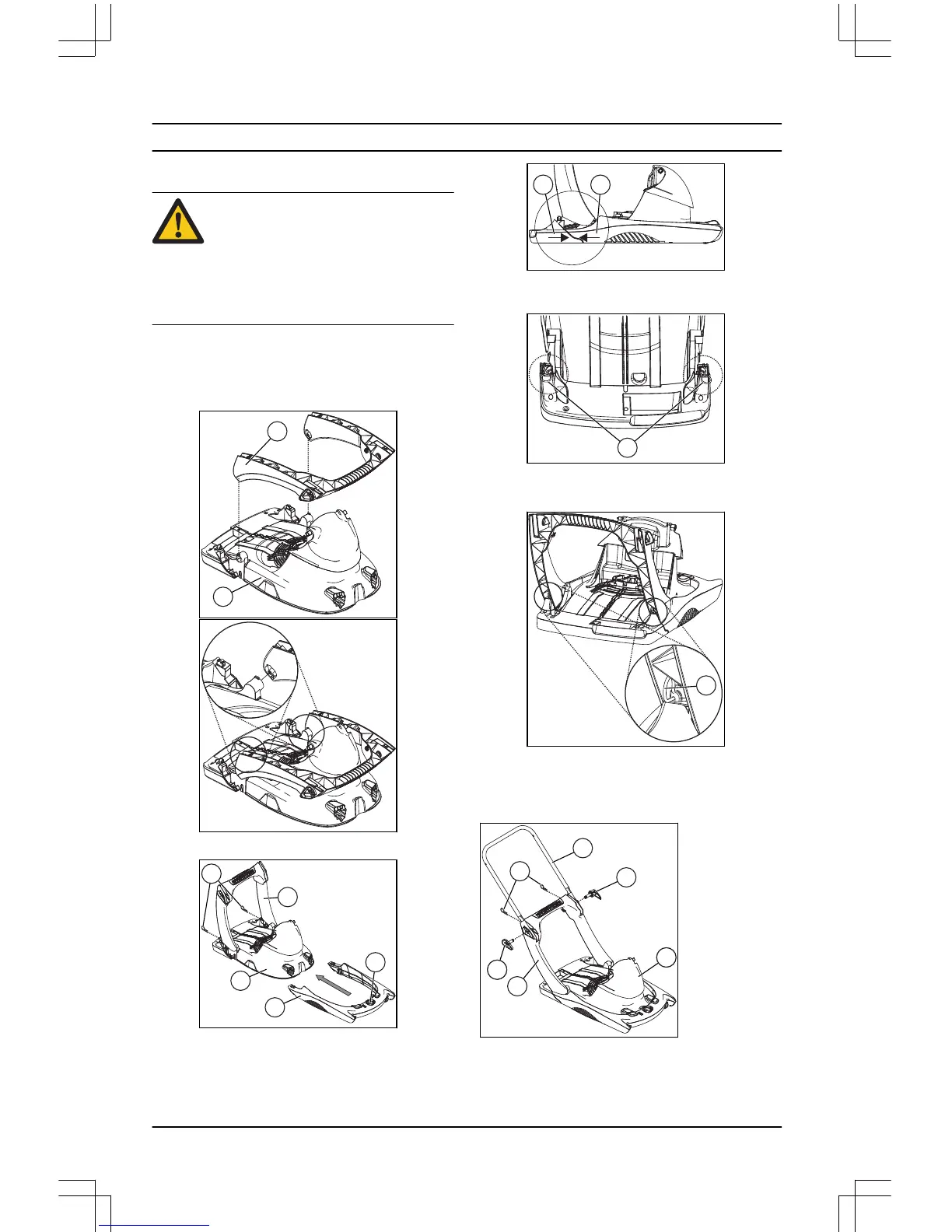

To assemble the bumper and the
lower handle
1. Check the parts of the product overview.
10
9
2. Put the lower handle (9) in the mower body (10).
17
9
20
10
8
3. Turn the adjust knob (20) to level 1.
4. Tilt the lower handle (9) forward.
10 17
5. Slide the bumper (17) completely on the mower
body (10) until the parts are in touch.
8
6. Remove the 2 R-Clips (8) from the holes.
7. Tilt the lower handle (9) firmly backward.
8
8. Put the 2 R-clips (8) through the holes in the
handle locks on both sides.
To assemble the middle handle
1
16
4
1
9
1610
8
1. Put the middle handle (16) in the lower handle
(9).
Make sure that the handle holes are inline.
8
