Flymo Micro Lite User Instruction

CABLES
IMPORTANT
• Use only 1.00mm
2
size cable up to 30 metres
length maximum.
Maximum rating :
1.00mm
2
size cable, 10 amps 250 volts AC.
• THE MICRO LITE IS SUPPLIED WITH CABLE
WIRED DIRECTLY INTO THE PRODUCT.
1. Flymo Mains Cables and Extension Cables are
available from your local Electrolux Outdoor
Products Approved Service Centre.
2. Do not wire an extension cable directly to your
product yourself. Please contact your local
Electrolux Outdoor Products Approved Service
Centre for further information on the connectors
and kits available.
3. Only use extension cables specifically designed
for outdoor use.
CONNECTORS
IMPORTANT
• Flymo connectors are suitable for use with 2
core cable only. Under no circumstances should
these connectors be used for earthed products.
• All Flymo connectors and cables are of splash-
proof construction. They are not waterproof
and must not be left outside permanently nor
should they be submerged or immersed in
water. Do not let cable lay or trail through pools
of water or splashed with water from hose
pipes.

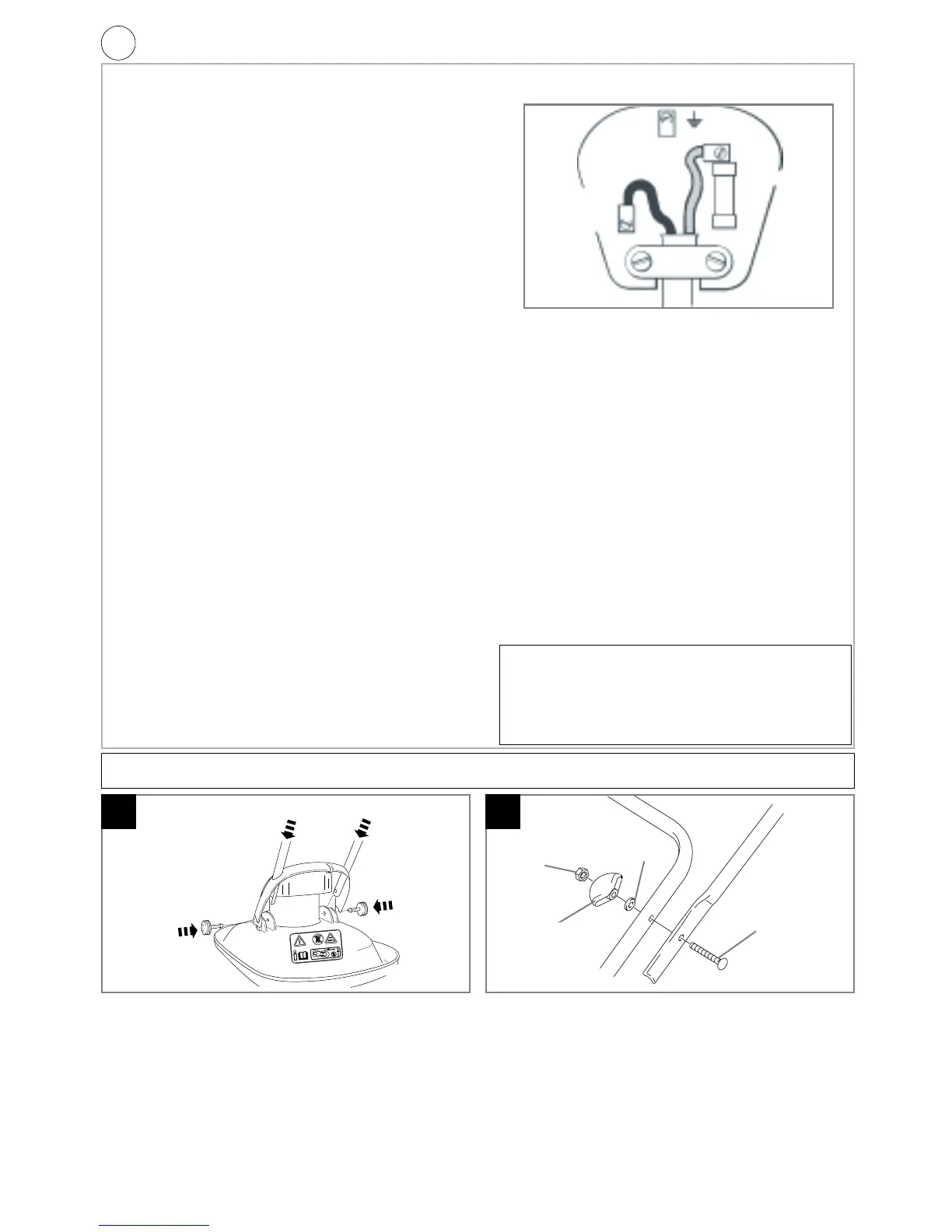

MAINS PLUG REPLACEMENT
IMPORTANT
• If the plug supplied is cut off it should be
destroyed. There is an electric shock hazard if
a cut off plug is inserted into a 13 amp socket.
1. No earth required. Flymo products are double
insulated to EN60335 and under no circum-
stances should an earth be connected to any
part of the product.
2. Ensure the mains voltage suits your product
3. IMPORTANT!
The wires in the mains lead are coloured in
accordance with the following code:
BLUE - NEUTRAL
BROWN - LIVE
The wire which is coloured BLUE must be con-
nected to the Terminal which is marked with the
letter 'N' or coloured BLACK.
The wire which is coloured BROWN must be
connected to the Terminal which is marked with
the letter 'L' or coloured RED.
4. It is important that the outer sheath is clamped
correctly into the 3-pin plug.
5. If in doubt consult your local Service Repairer or
qualified electrician before the machine is used.
6. A 13 Amp fuse must be fitted to the Mains
Plug.
7. The normal plug fuse and household fuse only
protect the electrical equipment and are not a
safeguard against electrocution.
E
L
F
U
S
E
N
BLACK
OR
BLUE
RED
OR
BROWN
3
2
1
1
2
A B
Lower Handle to Hood Assembly (A)
• Ensure the motor cover is fitted correctly,
as illustrated
• Tilt and lock motor cover into forward
position before assembly
1. Insert lower handles through the 2 holes in the
motor cover and push down.
2. Secure lower handles to hood by firmly pushing
fixing pins through holes in motor cover, handle
and hood.
Fitting Upper Handles to Lower Handles (B)
1. Ensure the upper handle is located correctly with
the lock-off button on the switchbox uppermost
2. Ensure the upper handle and the lower handle
are aligned correctly.
3. Insert the nut into the handle knob. (if applicable)
4. Fit the bolts, washers and handle knobs.
5. Fit the cable to the handles with the clips provid-
ed. Make sure the cable is not trapped between
the handles.
bolt
washer
handle
knob
Assembly Instructions
If your product is hard wired i.e. non-detach-
able mains electric cable, a conversion kit and
extension cable is available from all Electrolux
Outdoor Products Approved Service Centres
which can be found in your local Yellow Pages.
nut (if
applicable)

Flymo Micro Lite Specifications

General

Type	Push lawn mower
Cutting width	280 mm
Cutting system	-
Recommended lawn area	- m²
Maximum cutting height	33 mm
Minimum cutting height	10 mm
Grass collecting volume	- L
Cutting clearance adjustment	2
Power source	AC
Cordless	No

Weight and Dimensions

Weight	4500 g
