3
A
B

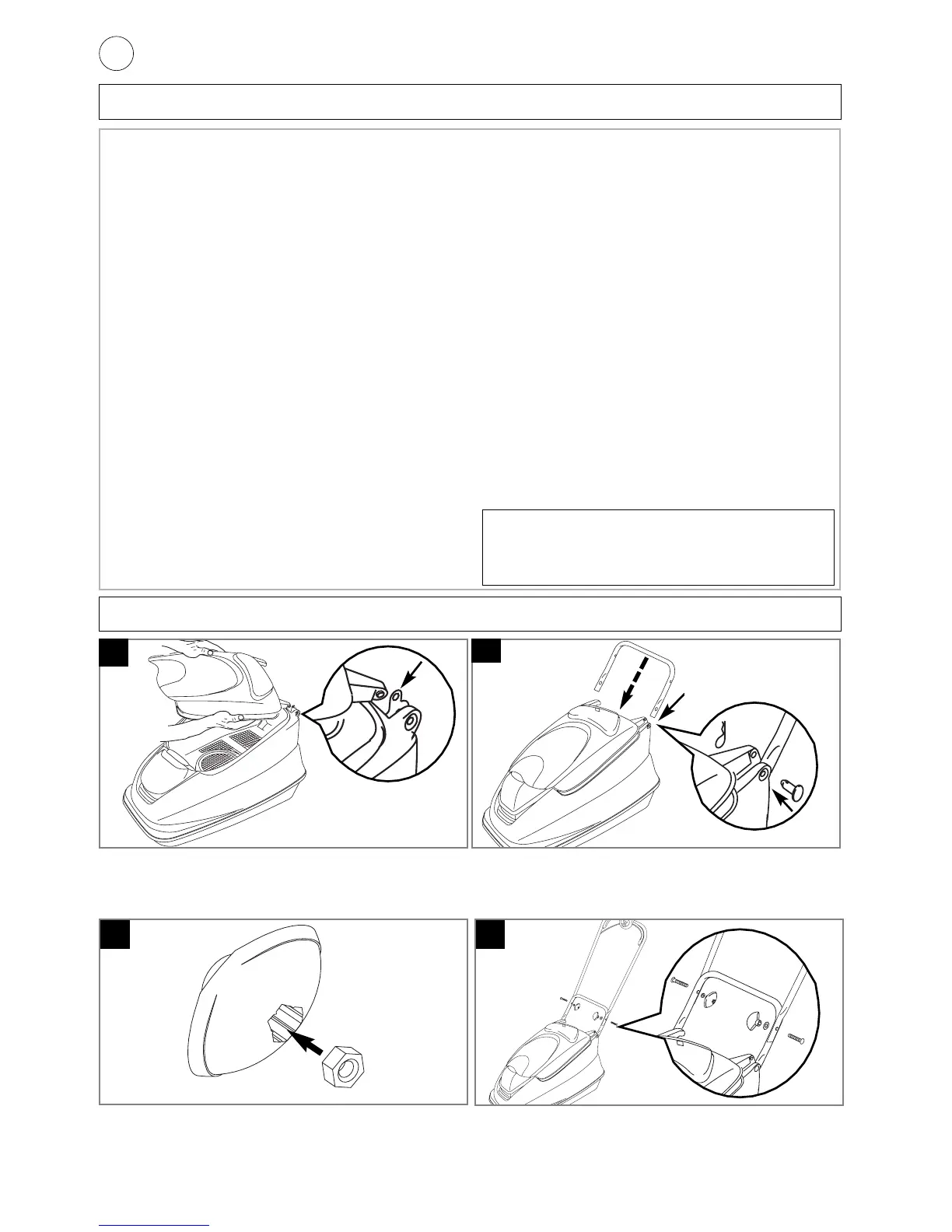

Grassbox lid assembly (A)
1. Fit one side of the grassbox lid as illustrated in Fig.
A. Repeat for the other side.
Lower handle assembly (B)
1. Insert the lower handle into the handle slots, ensur-
ing that the holes are aligned.
2. Insert the pins and secure with the retaining clips.
Assembly Instructions
Handle slot
D
Upper handle assembly (C & D)
1. Insert the nut into the handle knob. (if applicable) (C)
2. Align the holes in the upper and lower handles and
secure with the bolt, washer and wing knob.(D)
3. Fit the cable to the handle with the clip provided.
Make sure the cable is not trapped between the
upper and lower handles.
C
CABLES
IMPORTANT
• Use only 1.00mm
2
size cable up to 30 metres length
maximum.
Maximum rating : 1.00mm
2
size cable, 10 amps 250 volts AC.
• THE TURBO COMPACT VISION IS SUPPLIED
WITH AN ELECTRIC MAINS CABLE FITTED
WITH A FEMALE CONNECTOR
1. Flymo Mains Cables and Extension Cables are
available from your local Electrolux Outdoor
Products Approved Service Centre.
2. Do not wire an extension cable directly to your product
yourself. Please contact your local Electrolux Outdoor
Products Approved Service Centre for further informa-
tion on the connectors and kits available.
3. Only use extension cables specifically designed for
outdoor use.
CONNECTORS
IMPORTANT
• Flymo connectors are suitable for use with 2 core
cable only. Under no circumstances should these
connectors be used for earthed products.
• All Flymo connectors and cables are of splashproof con-
struction. They are not waterproof and must not be left
outside permanently nor should they be submerged or
immersed in water. Do not let cable lay or trail through
pools of water or splashed with water from hose pipes.
MAINS PLUG REPLACEMENT
IMPORTANT
• If the plug supplied is cut off it should be
destroyed. There is an electric shock hazard if a
cut off plug is inserted into a 13 amp socket.
1. No earth required. Flymo products are double insulated
to EN60335 and under no circumstances should an
earth be connected to any part of the product.
2. Ensure the mains voltage suits your product
3. IMPORTANT!
The wires in the mains lead are coloured in accor-
dance with the following code:
BLUE - NEUTRAL
BROWN - LIVE
The wire which is coloured BLUE must be connect-
ed to the Terminal which is marked with the letter 'N'
or coloured BLACK.
The wire which is coloured BROWN must be con-
nected to the Terminal which is marked with the let-
ter 'L' or coloured RED.
4. It is important that the outer sheath is clamped cor-
rectly into the 3-pin plug.
5. If in doubt consult your local Service Repairer or
qualified electrician before the machine is used.
6. A 13 Amp fuse must be fitted to the Mains Plug.
7. The normal plug fuse and household fuse only pro-
tect the electrical equipment and are not a safe-
guard against electrocution.
Cables
If your product is hard wired i.e. non-detachable
mains electric cable, a conversion kit and exten-
sion cable is available from all Electrolux Outdoor
Products Approved Service Centres which can be
found in your local Yellow Pages.
