- 5 -

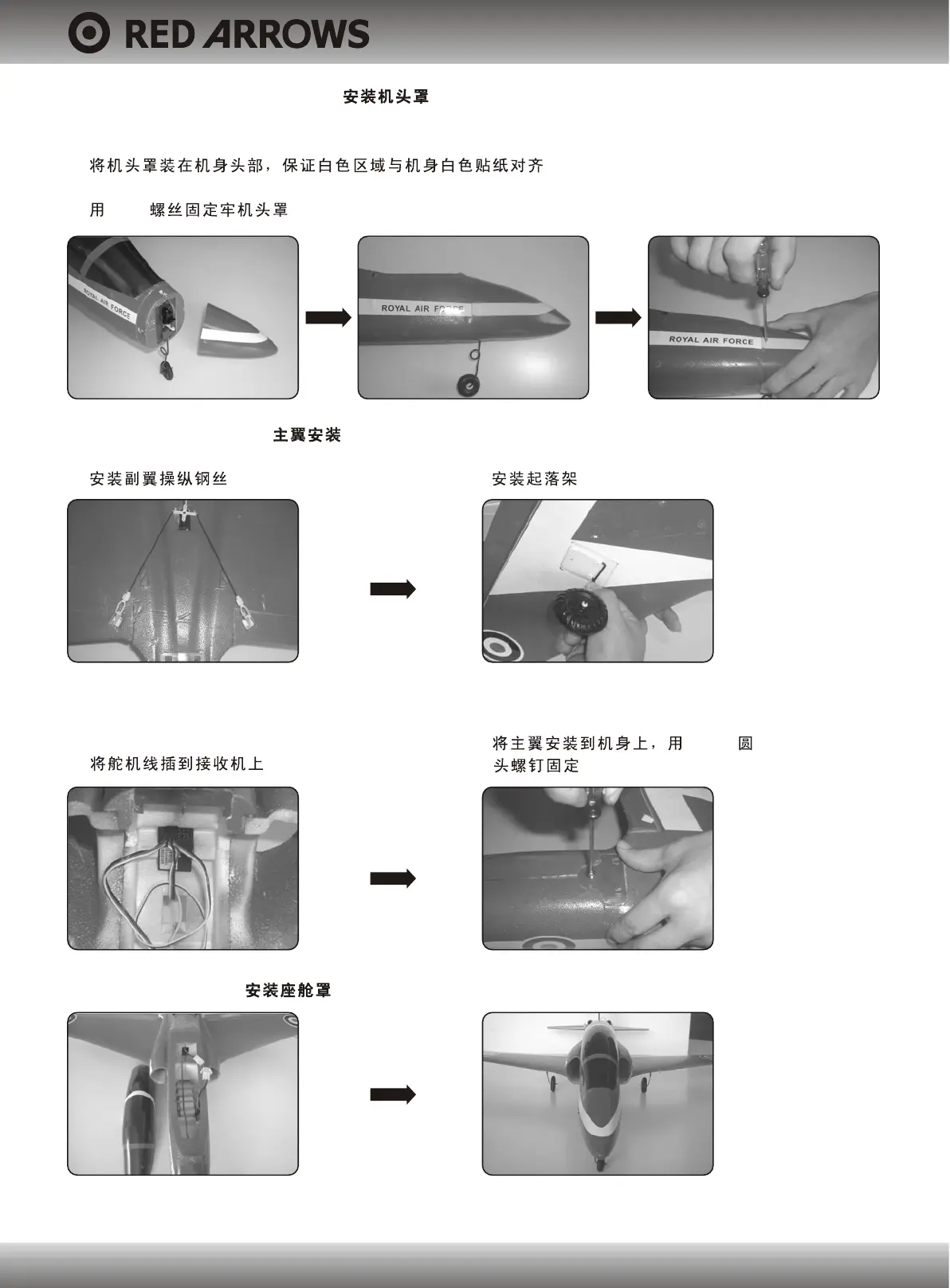

5. Install the main wing
A. Install aileron control steel wire.
A.
B. Install undercarriage
B.
C. Insert the servo wire into the receiver
C.
D. Put the main wing on the fuselage,
fix it with M4X10 screws.
D. M4X10
.
6. Install the Canopy
A. Put the head cover of plane on the head of fuselage; make sure the white region face to face the white
decals of fuselage.
A.
B. Fix the head cover of plane with M2X4 screws.
B. M2X4
4. Install the head cover of plane
