Roll Cage installation
16
EN

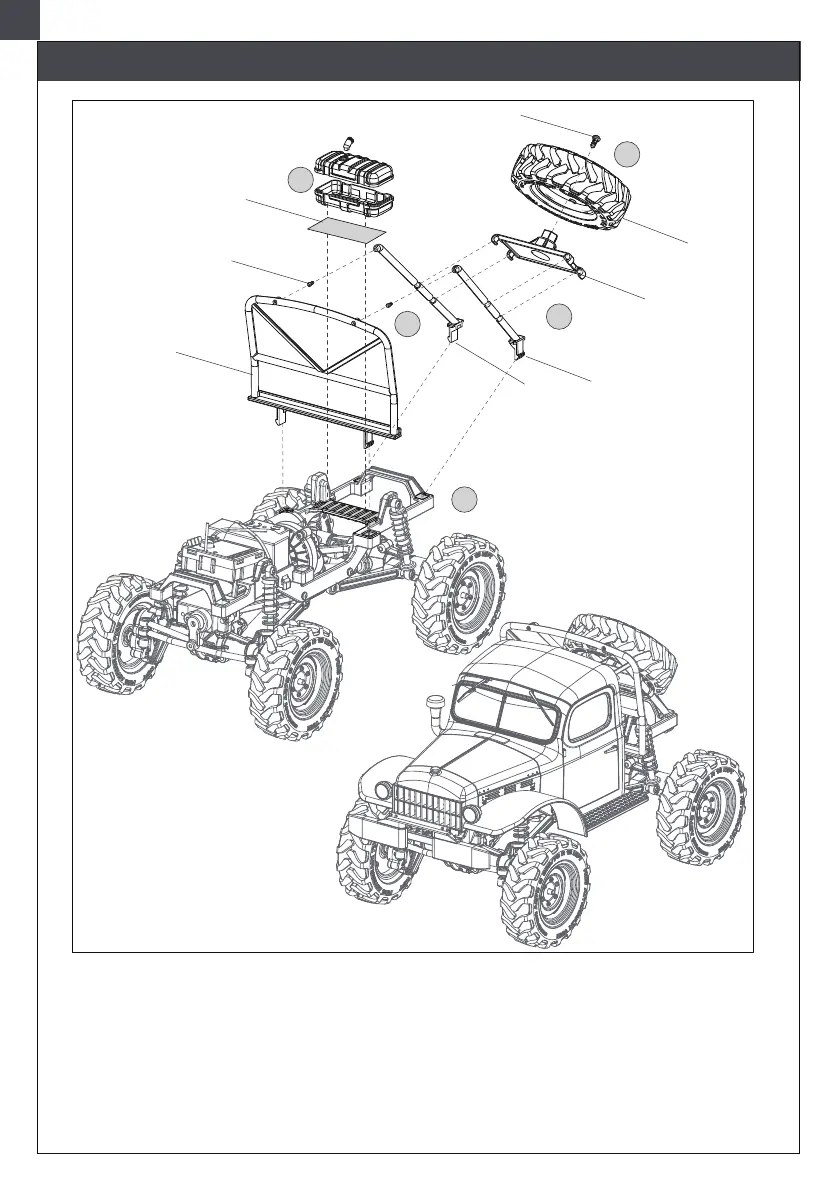

1: Use the included 2 PB1.2x3 Phillips head screws to install the left and right brackets on the
middle bracket;
2: Use the included PWB2.3x12M5.5 meson head screws to install the tire set to the spare tire
frame;
3: Install the assembled spare tire frame on the left and right brackets;
4: Install the assembled roll cage on the frame;
5: Use the included double-sided tape to stick the fuel tank to the corresponding position of the
frame.
1
2
3
4
5
PB1.2x3 Phillips head screws
middle bracket
left and right brackets
tire set
spare tire frame
double-sided tape
PWB2.3x12M5.5 meson head screws
