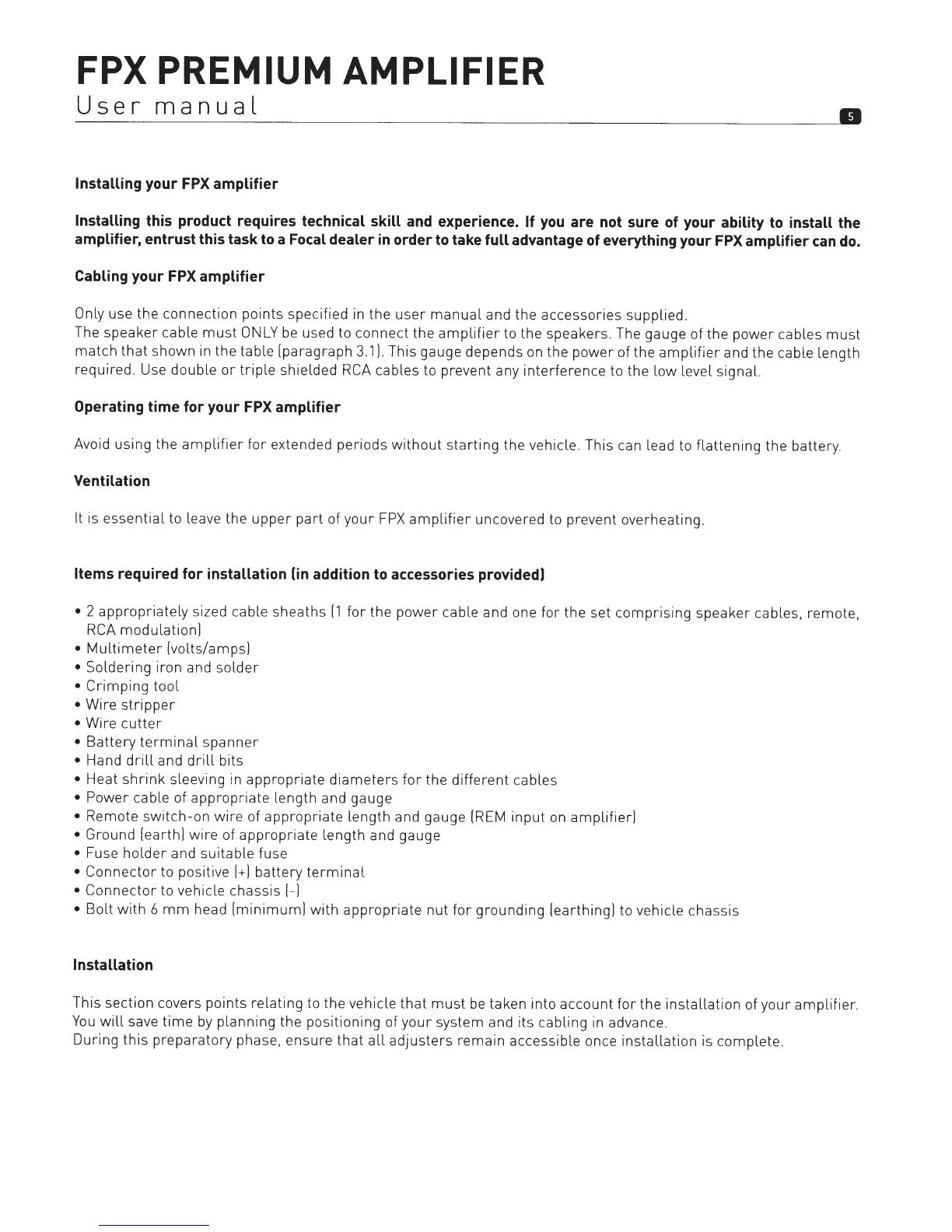

Focal FPX User Manual

FPX PREMIUM AMPLIFIER
User
manual
a
Installing
your FPX amplifier
Installing
this product requires technical skill and experience.
If
you
are not sure of your ability
to
install the
amplifier, entrust this task to a Focal dealer
in
order
to
take full advantage of everything your FPX amplifier
can
do.
Cabling
your FPX amplifier
Only
use the connection points specified in the
user
manual
and the accessories supplied.
The speaker cable
must
ONLY
be
used to connect the
amplifier
to the speakers. The gauge of the
power
cables
must
match
that
shown in the table [paragraph 3.1]. This gauge depends
on
the
power
of the
amplifier
and the cable length
required. Use double
or
triple
shielded
RCA
cables to prevent any interference to the
low
level signal.
Operating time for your FPX amplifier
Avoid using the
amplifier
for
extended periods
without
starting
the vehicle. This can lead to flattening the battery.
Ventilation
It is essential to leave the
upper
part
of
your
FPX
amplifier
uncovered to prevent overheating.
Items
required for installation (in addition
to
accessories provided)
•
2 appropriately sized cable sheaths
[1
for
the power cable and one
for
the set
comprising
speaker cables, remote,
RCA
modulation]
•
Multimeter
[volts/amps]
•
Soldering iron and
solder
•
Crimping
tool
•
Wire
stripper
•
Wire
cutter
•
Battery
terminal
spanner
•
Hand
drill
and
drill
bits
•
Heat
shrink
sleeving in appropriate
diameters
for
the different cables
• Power
cable of appropriate
length
and gauge
•
Remote
switch-on
wire
of appropriate length and gauge [REM input on
amplifier]
• Ground [earth]
wire
of appropriate length and gauge
•
Fuse
holder
and suitable fuse
•
Connector
to positive
[+]
battery
terminal
•
Connector
to vehicle
chassis[-]
•
Bolt
with
6
mm
head
[minimum]
with
appropriate
nut
for
grounding [earthing] to vehicle chassis
Installation
This section covers points relating to the vehicle that
must
be
taken into account
for
the
installation
of
your
amplifier
.
You
will
save
time
by
planning the positioning of
your
system and its cabling
in
advance.
During
this
preparatory phase, ensure
that
all
adjusters
remain accessible once
installation
is complete.
