Focus BC222360040 - Removing and Inserting the Battery; Removing the Battery

5. REMOVING AND INSERTING THE BATTERY

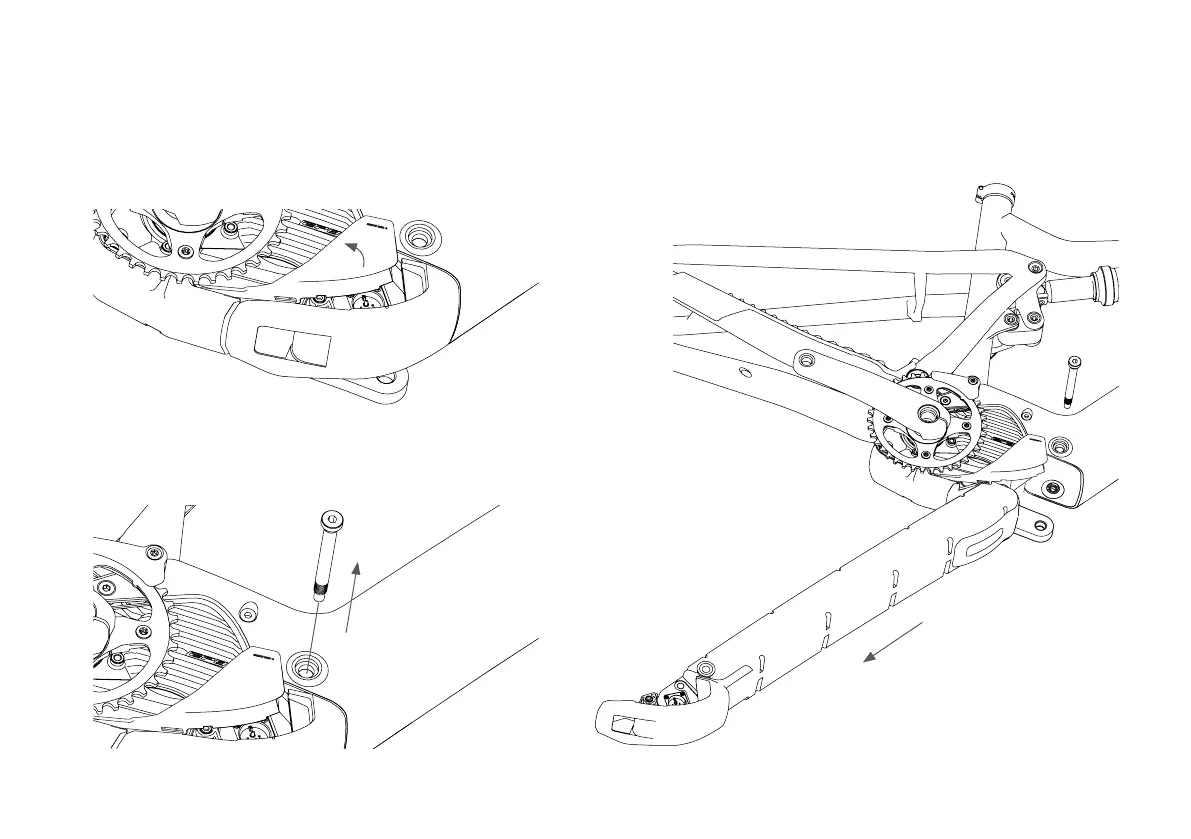

5.1 REMOVING THE BATTERY
1.
2.
3.Open the cover flap.
Hold the battery firmly from below. Turn the bolt counterclock-
wise with a 6mm Allen key and remove.
Remove the battery from the down tube.
