FS453/4 AND FS455/6 DATA SHEET: HARDWARE REFERENCE
9.3.1.2 Suggested Output Filter Network

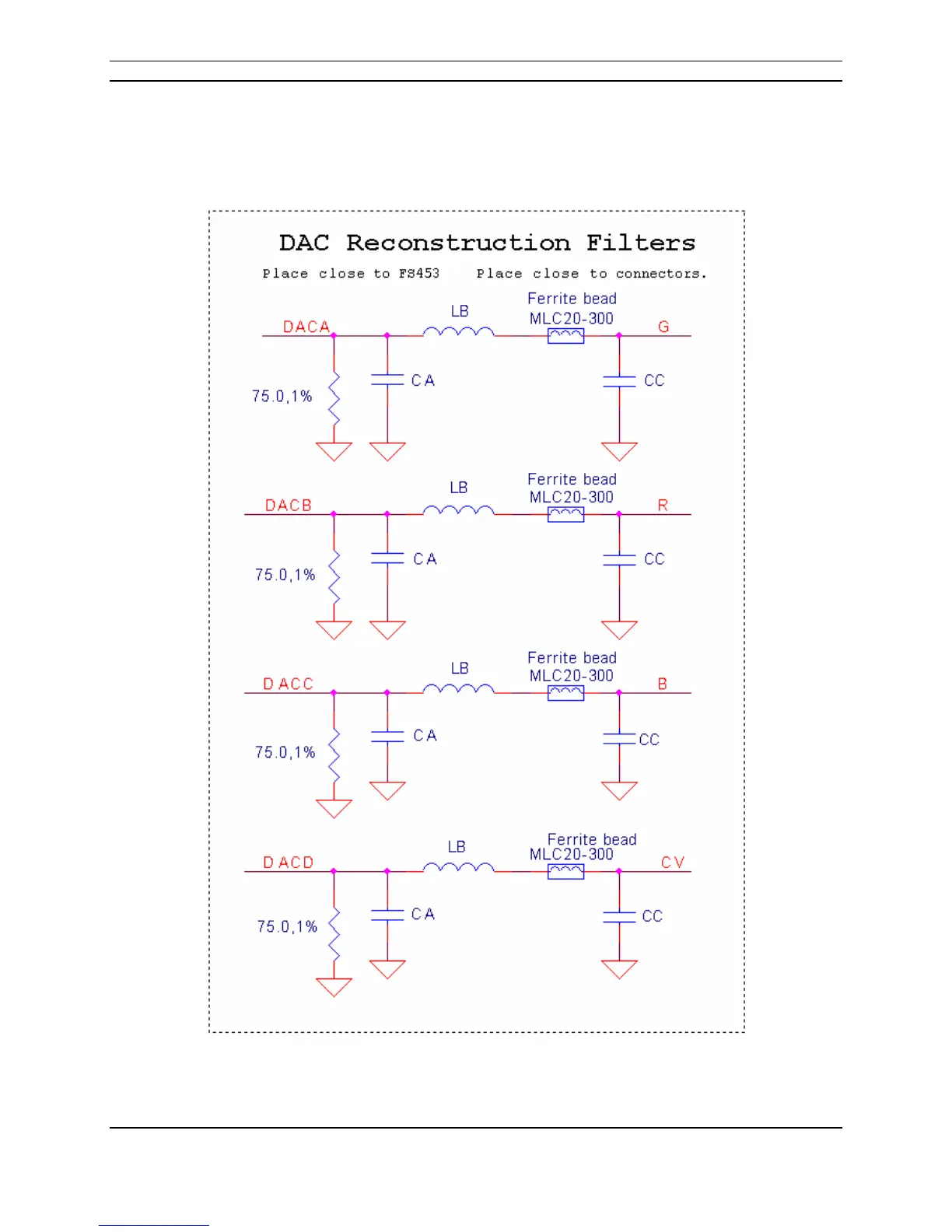

Figure 12 below shows the suggested output filter network for the FS453. Note that SDTV and HDTV
use different values.
Figure 12: Recommended Output Filter
