Page 8 of 22

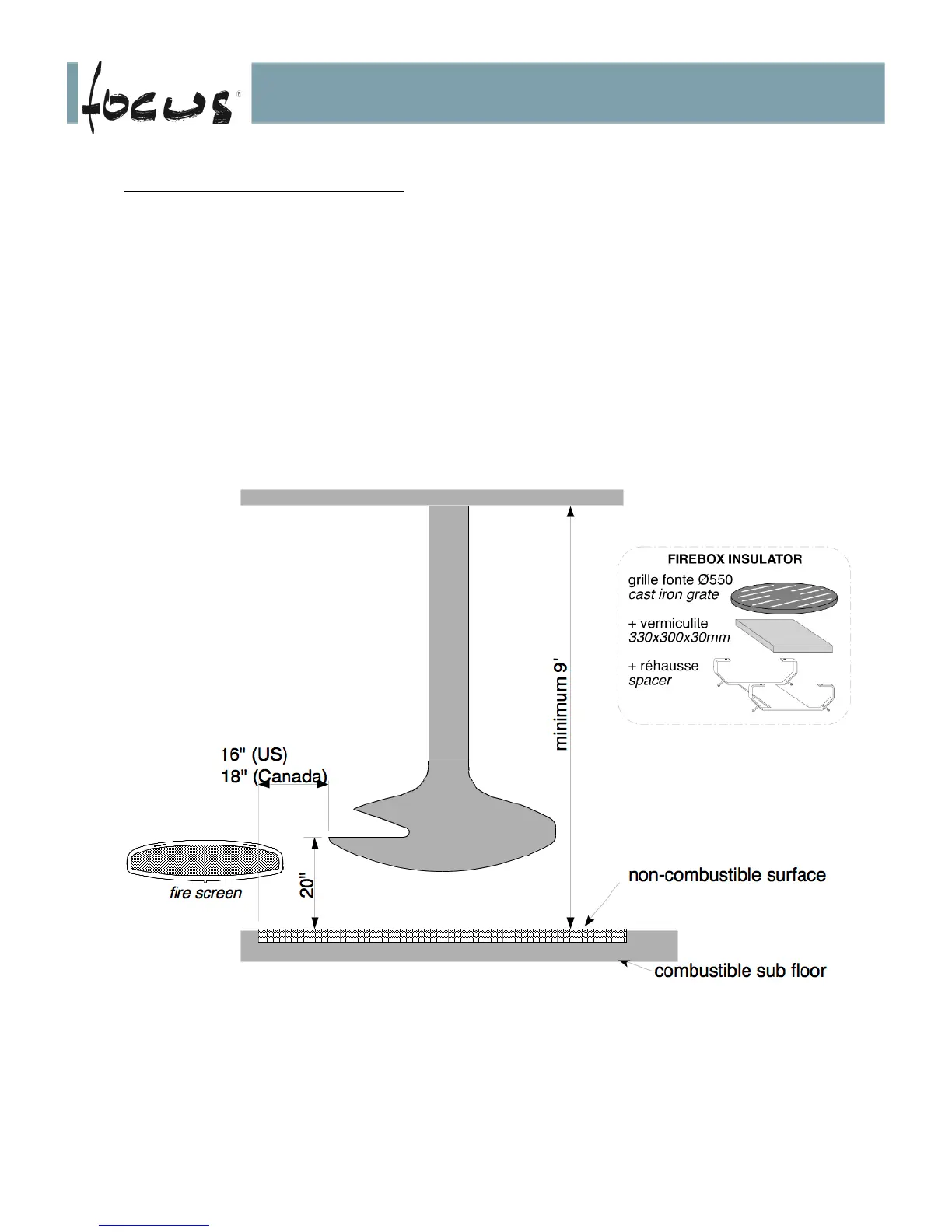

g) Clearances to combustibles:
• Floor protection:
ROTATING VERSION REQUIRE 16 INCHES (US) OR 18 INCHES (CANADA)
OF FLOOR PROTECTION ON ALL SIDES (360°).
FIXED VERSION REQUIRE 16 INCHES (US) OR 18 INCHES (CANADA) ON
THE FRONT AND TO EXTEND 8 INCHES ON THE LEFT AND RIGHT SIDES
AS WELL AS FOR THE BACK SIDE.
USE OF PROVIDED FIREBOX INSULATOR UNDER THE GRATE
(VERMICULITE) IS COMPULSORY.
