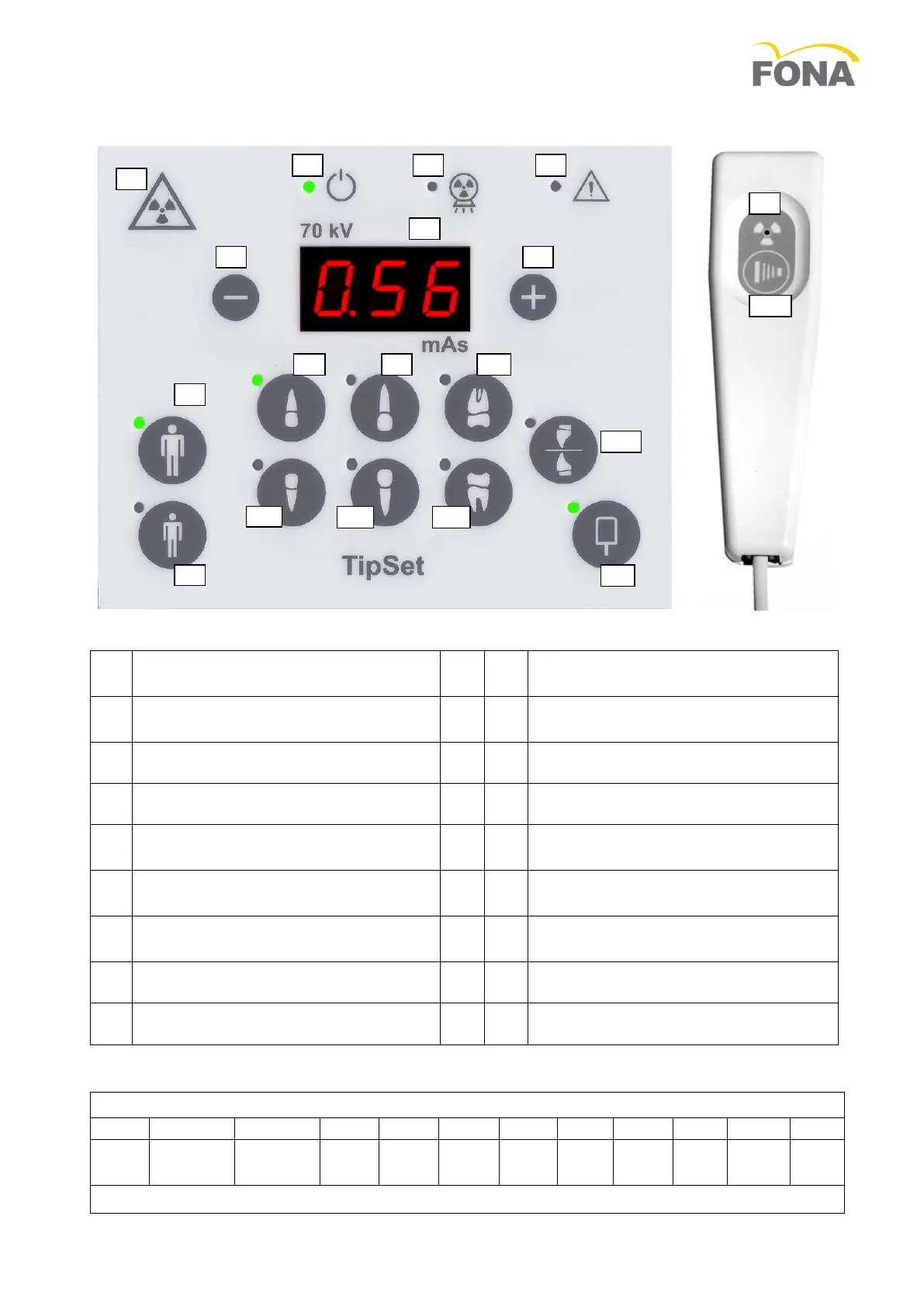

The Control Panel
1
Device for emission of ionizing
radiation on request
10
Maxillary incisor
2
Indication of system turned on and
ready
11
Maxillary canine or premolar
3
Irradiation
12
Maxillary molar
4
Alarm
13
Mandibular incisor
5
mAs display, the controlled
technique factor
14
Mandibular canine or premolar
6
Manual decrease of controlled
technique factor
15
Mandibular molar
7
Manual increase of controlled
technique factor
16
Bite-wing premolar
8
Patient size adult/large
17
Digital detector in use
9
Patient size child/small
18
Radiation exposure pushbutton
EXPOSURE INDEX
0.32
0.4
0.5
0.63
0.8
1.0
1.25
1.6
2.0
2.5
3.2
4.0
CDR
SENSOR
XIOS
SENSOR
F
FILM
E
FILM
D
FILM
CDR Sensor by Shick Technologies Inc., XIOS Sensor by Sirona Dental Systems GmbH
18
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
