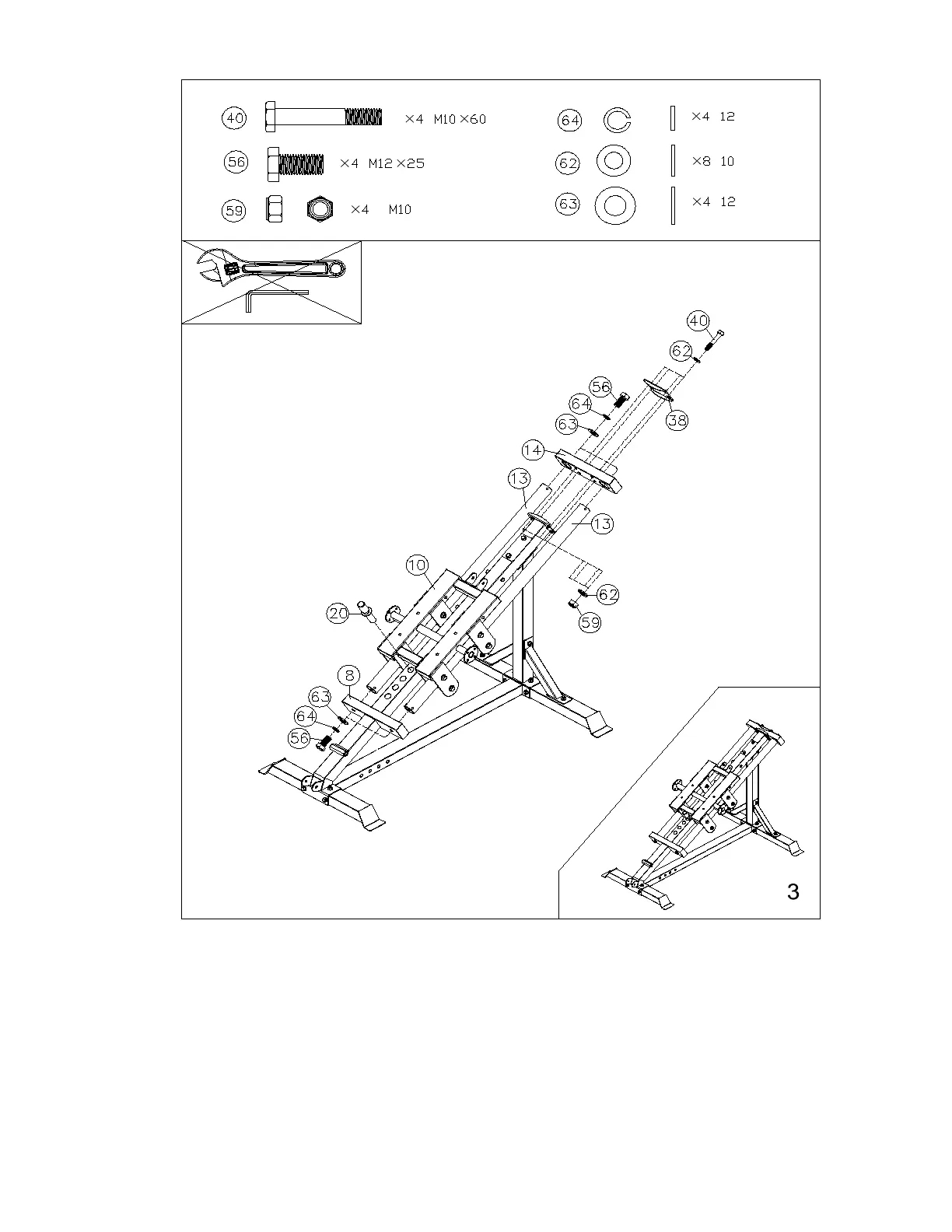

1. Attach the 2 x Guide Rods (13) to the Skew Frame (8) with M12x25 Bolts (56), Spring
Washers (64) and Washers (63)
2. Position the Pin Axle (20) on the Skew Frame (8) and slide the Sliding Frame (10) onto
the Guide Rods so that it rests against the Pin Axle
3. Add the Connector Tube (14) to the Guide Rods (13) with M12x25 Bolts (56), Spring
Washers (64) and Washers (63)
4.
Connect the Square Bracket (38) to Connector Tube (14) and Skew Frame (8) with
M10x60 Bolts (40), Washers (62) and M10 Nuts (59)
