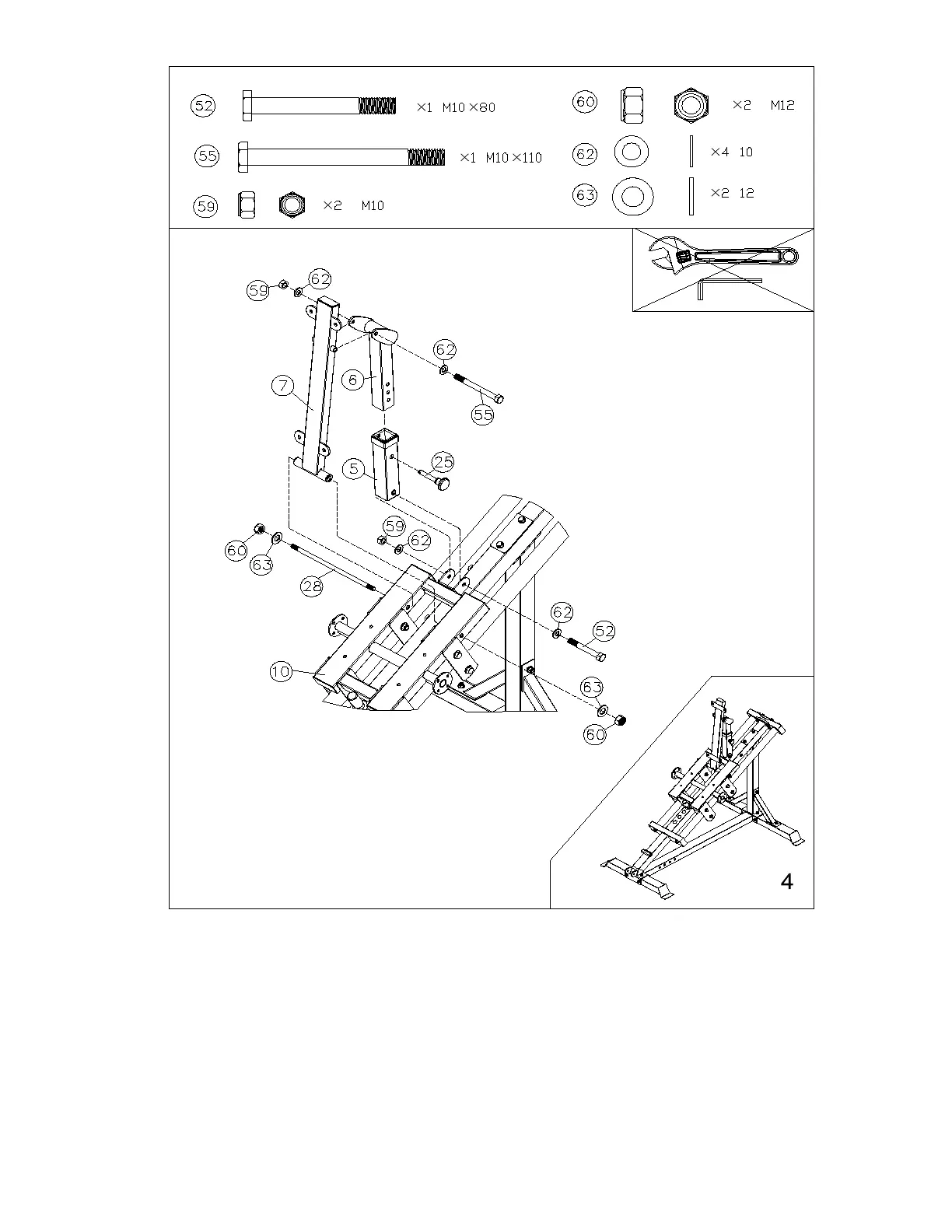

1. Attach Adjuster (5) to Sliding Frame (10) with M10x80 Bolt (52), Washers (62) and M10
Nut (59)
2. Slide the Backrest Pad Adjuster (6) into the Adjuster (5) and add the Magnetic Pin (25)
3. Attach the Backrest Pad Mount (7) to the Backrest Pad Adjuster (6) with M10x110 Bolt
(55), Washers (62) and M10 Nut (59)
4. Slide the Stud Bolt (28) through the Sliding Frame (10) and Backrest Pad Mount (7),
then secure with Washers (63) and M12 Nuts (60)
