Force USA F-CLP - Page 15

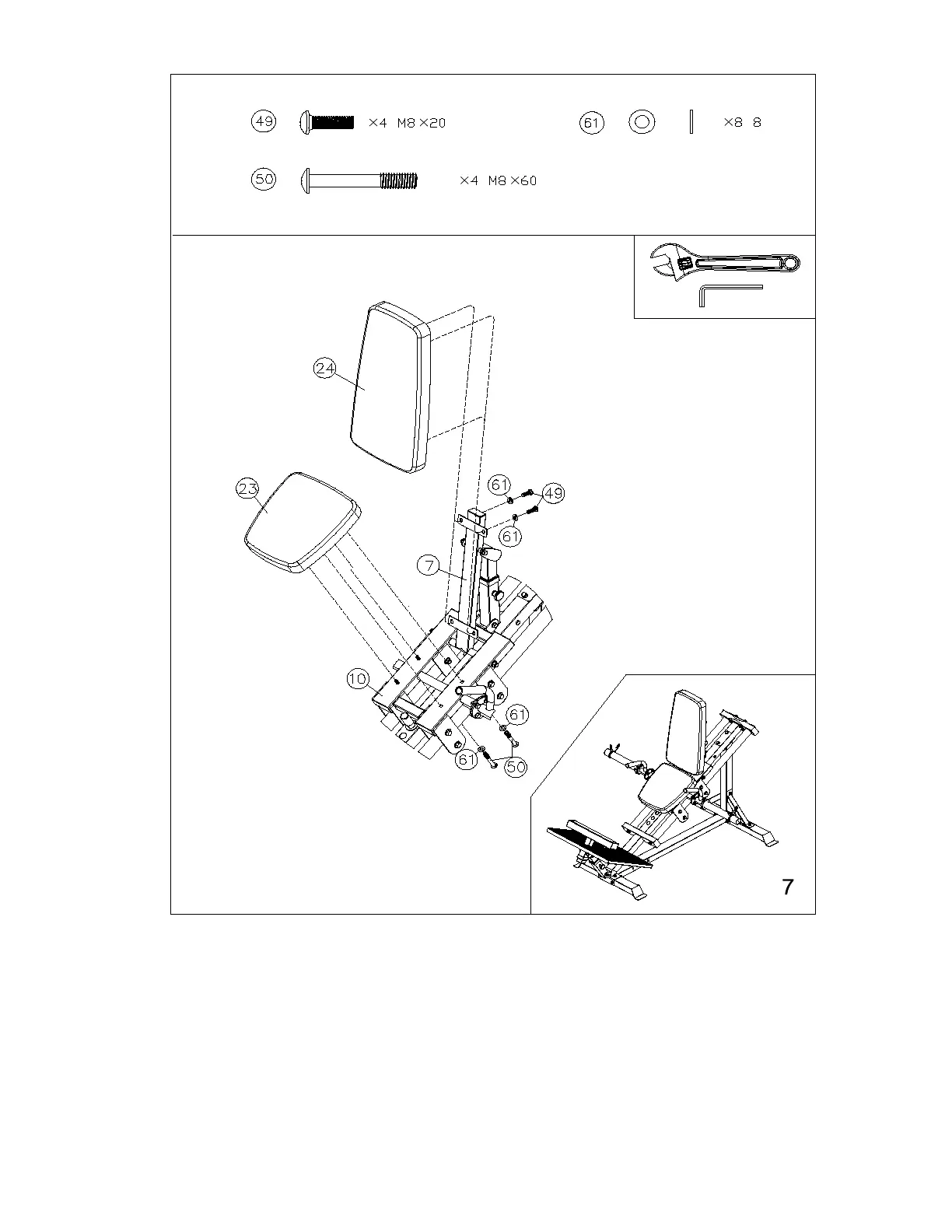

1. Attach the Seat Pad (23) to the Sliding Frame (10) with M8x60 Bolts (50) and 8mm
Washers (61)
2. Attach the Backrest Pad (24) to the Backrest Pad Mount (7) with M8x20 Bolts (49) and
8mm Washers (61)
3. Now that hand assembly is completed, ensure everything is tightened using the
necessary tools such as Wrench and Allen Key
14
